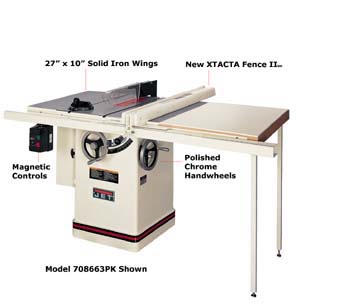

JET JTAS-10XL50 "XACTA" Saw Left Tilt

Features

  • Left tilting blade for greater accuracy and safety

  • Choice of 3 HP, single phase; 5 HP, single or three phase

  • Comes standard with the XACTA FENCE 30" or 50" Commercial

  • Both fences also offer a 12" rip capacity to the left of the blade

  • Large precision-ground 27" x 40" cast iron table with two extension wings

  • Reinforced steel enclosed cabinet

  • Built-in slanted cabinet floor leading toward the standard 4" steel dust port

  • Convenient front left rail-mounted magnetic on/off switch

  • Chrome-plated handwheels

  • Hinged steel motor cover

  • Totally enclosed, fan-cooled motor

  • Wide stance trunnion design to eliminate vibration and insure perfect blade alignment

  • Three matched v-belts mounted between the two arbor bearings for longer bearing life and greater stability

  • T-slotted table with precision miter gauge

  • See-through blade guard with splitter and anti-kickback pawls

  • One-piece precision ground arbor



Specifications
Model: JTAS-10XL
Blade Diameter (in): 10
Arbor Diameter (in): 5/8
Max Depth of Cut (in): 3 1/8
Max Cut Depth at 45 degrees (in): 2-1/8
Table in Front of Saw Blade (in): 12
Max Width of Dado (in): 13/16
Max Diameter of Dado (in): 8
Dust Port Diameter (in): 4
Table Height (in): 34
Cast Iron Table Size (w/ Ext/in)*: 27W x 40D
Cast Iron Table Size (w/o Ext/in): 27W x 20D
Arbor Speed (RPM): 4,200
Motor (TEFC):
JTAS-10XL-1 3 HP, 1 Ph, 230V Only
Net Weight (lbs): 468
*Requires Optional Switch

Standard Equipment

  • Mitre gauge

  • Blade guard/splitter

  • Cast iron extension wings

  • Cabinet-style stand

  • Dust port

  • Blade not included

XACTA Lift

  • All JTAS-10 Kits are available with the XACTA-LIFT router insert and deluxe fence built in

  • To order any JTAS-10 tablesaw with the XACTA-LIFT kit replace the PK with RXK.

  • These saws will come standard with the precut accessory wood table, XACTA-LIFT router insert, deluxe router fence and support legs

Additional Documentation
Woodworking Catalog Page
Adobe Acrobat Required to read these files.


WMH708663PK
$2,001.00 $1,756.00
"JTAS-10XL50-1PK, 3HP, 1Ph XACTASAW Left with 50"" Fence, Table and Legs (WEIGHT = 528 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"

WMH708663RXK
$2,291.00 $1,880.20
"JTAS-10XL50-1XLK, 3HP,1Ph, XACTASAW Left with 50"" Fence, XACTA-Lift and Fence :::::FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"

WMH708663STK
$3,161.00 $2,594.20
"JTAS-10XL50-1ST, XACTASAW Left, 3HP, 1Ph 50"" Fence, Sliding Table :::::FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"


WMH708662K
$1,784.00 $1,551.40
"JTAS-10XL30-1 with 30"" Ccommercial XACTA Fence (WEIGHT = 490 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"


WMH708662RXK
$2,204.00 $1,808.80
"JTAS-10XL 30-1RXK with XACTA Lift & Fence :::::FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"



WMH708664PK
$1,972.00 $1,350.00
"JTAS-10XL30-3PK, 5HP, 3PH w/30"" fence, table, and legs ***Summer Special - Limited Quantities - Ends August 31st :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"""


WMH708665PK
$2,028.00 $1,368.75
"JTAS-10X150-3 w/50"" Comm XACTA & T/L ***Summer Special - Limited Quantities - Ends August 31st :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"""


WMH708665RXK
$2,306.00 $1,585.00
"JTAS-10XL50-3XLK, 5HP, 3PH w/50"" fence, XACTA lift and fence ***Summer Special - Limited Quantities - Ends August 31st :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"""


WMH708662STK
$3,103.00 $2,546.60
"JTAS-10XL30-1ST, XACTASAW 30"" Fence, Sliding Table :::::FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"


WMH708666
$2,523.00 $2,070.60
"JTAS-10XL-5/1LFR, 5HP, 1Ph, 230V Only, Less Fence and Rails :::::FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"


WMH708668PK
$2,886.00 $2,368.10
"JTAS-10XL50-5/1PK, 5HP, 1Ph with 50"" Fence, Table and Legs :::::FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"

WMH708174-1
$303.47 $199.95

On Line Special: ONLY WHEN PURCHASE WITH JET TABLE SAW: "Mobile Base 20-1/2"" x 62-1/2"": Fits JTAS-10 w/ 50" Fence/legs



708172_sm.jpg WMH708174
$259.87 $216.56
"Mobile Base 20-1/2"" x 62-1/2"": Fits JTAS-10 with 50"" Fence/legs >>>>> See UPS Chart At Check Out for Freight Rate or ADD to a WMH FREE FREIGHT Item for Free Freight On The Order. "

WMH708110K
$1,216.00 $850.58
"JST-48 Sliding Table Kit (WEIGHT = 70 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"

wmh/dadoinsert-sm.jpg WMH708109
$49.39 $42.00
"DI-10L, Dado Insert for Left Tilt XACTA Saw (WEIGHT = 1.4 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

wmh/X-LIFT-K-th.jpg WMH708124
$420.00 $287.70
"XLIFT-K, XACTA-Lift with Deluxe Fence (WEIGHT = 20 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

wmh/Tenoning-Jig-sm.jpg WMH708295
$156.00 $136.50
"JTG-10Q, Tenoning Jig with Quick Release (WEIGHT = 26 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

wmh/900906.jpg WMH900906
$19.55 $16.63
Shopclass Tablesaw Video - DVD (WEIGHT = 1 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order.

709207_sm.jpg WMH709207
$37.04 $31.50
"13"" Roller Stand (WEIGHT = 13 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

WMH708150P
$530.00 $450.50
"37"" ROLLER SECTION ONLY ====>Freight Charges - See UPS Chart OR No Freight When Combined with another WMH ""FREE FREIGHT"" ITEM or $1,800.00 Combined WMH Order 10 lbs"

WMH708151P
$460.00 $391.00
"26" ROLLER SECTION ONLY ====>Freight Charges - See UPS Chart OR No Freight When Combined with another WMH ""FREE FREIGHT"" ITEM or $1,800.00 Combined WMH Order 10 lbs"

WMH709380L
$49.39 $42.00
"NCI-10L, No Clearance for Left Tilt XACTA Saw (WEIGHT = 1.3 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

708119_sm.jpg WMH708119
$148.00 $123.36
JMB-UMB-HD Universal Mobile Base (WEIGHT = 30 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order.

wmh/708158_mbl-bse_sm.jpg WMH708158
$96.00 $80.02
Mobile Base Extension Kit for 708119 (WEIGHT = 17 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order.

WMH708179
$133.23 $111.02
"Mobile Base 20-1/2"" x 20-1/2"": Fits JTAS-10 with 30"" Fence >>>>> See UPS Chart At Check Out for Freight Rate or ADD to a WMH FREE FREIGHT Item for Free Freight On The Order. "

WMH708184
$205.40 $171.17
"Mobile Base 20-1/2"" x 47-1/2"": Fits JTAS-10 with 30"" Fence/Legs >>>>> See UPS Chart At Check Out for Freight Rate or ADD to a WMH FREE FREIGHT Item for Free Freight On The Order. "


WMH708681PK
$2,294.00 $1,573.00
">>> Want a Better Price? CALL 1-800-458-3687 <<< XACTASAW Deluxe 5HP, 3Ph, 50"" Rip **Linited Time Offer FREE - 50th Anniv Panel Truck Rebate ::::: FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included"
