JET 2 HP Geared Head Bench Lathe




Features

  • Tolerance test certificate included

  • Hardened and ground gears are featured in the headstock and gearbox

  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings

  • Headstock is constantly oiled during operation

  • Gear box gives wide inch threading and feed capabilities with no gear changes

  • V-way bed design is induction hardened and ground

  • Gap bed section provided for larger diameter work

  • Independent leadscrew and feed rod

  • Spindle actuation control is apron-mounted

  • Compound and cross slide have backlash elimination

  • Adjustable gibs are incorporated in the carriage and slideways

  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill

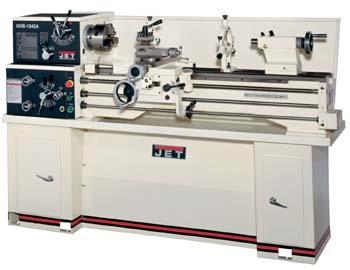

Shown With Optional Stand
Specifications
Stock Number: 321357
Model: GHB-1340
Swing Over Bed (in): 13
Swing Over Cross Slide (in): 7 25/32
Swing Through Gap (in): 18-3/4
Distance Between Centers (in): 40
Hole Through Spindle (in): 1-3/8
Spindle Mount: D1-4
Spindle Taper (With Sleeve): MT-5 (MT-3)
Number of Spindle Speeds: 8
Range of Spindle Speeds (RPM): 70 - 2,000
Number of Longitudinal and Cross Feeds: 40
Range of Longitudinal Feeds (in/rev): 0.0036 - 0.1005
Range of Cross Feeds (in/rev): 0.0012 - 0.0345
Number of Inch Threads: 40
Range of Inch Threads: 4 - 112 T.P.I.
Number of Metric Threads: 27
Range of Metric Threads (mm): 0.2 - 6
Max Tool Size (in): 5/8 x 5/8
Compound Slide Travel (in): 2-11/16
Cross Slide Travel (in): 6-5/16
Carriage Travel (in): 35
Tailstock Spindle Travel (in): 3-3/4
Taper in Tailstock Spindle: MT-3
Steady Rest Capacity (in): 3-1/2
Follow Rest Capacity (in): 2-3/4
Width of Bed (in): 7-3/8
Overall Dimensions with Stand (LxWxH/in): 71 x 32 x 47
Main Motor: 2 HP, 1 Ph 230V Only
Net Weight (lbs): 1,015

Standard Equipment

  • 6" 3-jaw direct mount chuck with top reversing jaws

  • 8" 4-jaw chuck

  • 12" face plate

  • 4-way tool post

  • Steady and follow rest

  • Metric change gear

  • Splash guard

  • Centers and headstock center sleeve

  • Threading dial

  • Tool box and tools

Optional Accessories

  • Cabinet stand (321443K)

  • 5C lever-type collet closer (321514)

  • 5C collet set (650014)

  • Taper attachment kit (321442) (installation available)

  • Coolant system (321444)

  • Single tool post (321431)

  • MT-3 Live center (465303)


Metalworking Catalog

People That Purchased the JET BDB-1340 Bench Lathe Also Purchased A





WMH321101AK
$5,225.00 $4,499.00
">>> Want a Better Price Call 800-458-3687 Today! GHB-1340A Lathe with CBS-1340A Stand Buy A JET Lathe and get a FREE 321443AK Cabinet Stand! A $525. Value! >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321443AK
$525.00 $417.99
"CBS-1340 Cabinet Stand for 321357A & 321360A >>> See WMH Shipping options at Check Out ** Note: All WMH orders over $2,500.00 = Free Freight (All WMH Freight Includes Residential & Tailgate Delivery if Required) (PC010910)"

WMH321443AK-1
$601.60 $375.00
CBS-1340 Cabinet Stand for BDB-1340 & GHB-1340 Geared Head Lathes SPECIAL: WITH PURCHASE OF A BDB-1340 OR GHB-1340 LATHE. :::::: Southern Tool Pays The Freight On This Item With Lathe Order


WMH321124
$5,999.00 $5,499.00
">>> Want a Better Price Call 800-458-3687 Today! GHB-1340A, Bench Lathe with Collet Closer Buy A JET Lathe and get a FREE 321443AK Cabinet Stand! A $525. Value! >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321129
$6,899.00 $6,199.00
">>> Want a Better Price Call 800-458-3687 Today! GHB-1340A Lathe with Collet Closer & Tak Buy A JET Lathe and get a FREE 321443AK Cabinet Stand! A $525. Value! >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321103AK
$6,995.00 $6,299.00
">>> Want a Better Price Call 800-458-3687 Today! GHB-1340A Lathe with ACU-RITE VUE DRO & Stand Buy A JET Lathe and get a FREE 321443AK Cabinet Stand! A $525. Value! >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321122
$7,250.00 $6,984.26
"GHB-1340A Lathe with ACU-RITE 200S DRO Installed >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321131
$7,350.00 $7,080.70
"GHB-1340A Lathe with NEWALL C80 DRO Installed >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321125
$8,348.00 $7,852.15
"GHB-1340A Lathe with 200S DRO & Collet Closer >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321123
$8,575.00 $8,065.01
"GHB-1340A Lathe with ACU-RITE 200S DRO and Taper Attachment Installed >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321581
$8,699.00 $8,160.26
"GHB-1340A Lathe with C80 DRO & Collet Closer >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321115
$10,210.03 $8,508.36
"GHB-1340A Bench Lathe with C80 & TAK >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321104
$9,327.00 $8,820.00
"GHB-1340A Lathe with C80 DRO, TAK & Collet Closer >>> Free Shipping on this WMH Order - Our Freight Includes FREE Residential and/or Liftgate Deliveries if Needed (PC010910)"""


WMH321442
$850.58 $770.73
(( Limited Quantity Special - Call For Availability )) TAK-13GH/BD TAPER ATTACH (TEXT) >>> Free Ground UPS on this item Anywhere within the Lower 48 States (PC070709)

WMH321514A
$985.00 $790.00
"CC-GHB1340A, Collet Closer for 321357A >>> See WMH Shipping options at Check Out ** Note: All WMH orders over $2,500.00 = Free Freight (All WMH Freight Includes Residential & Tailgate Delivery if Required) (PC010910)"

WMH321431
$136.50 $113.75
"STP-13BD, Single Tool Post for 321357A, 321360A, 321810 - 321840 >>> See WMH Shipping options at Check Out ** Note: All WMH orders over $2,500.00 = Free Freight (All WMH Freight Includes Residential & Tailgate Delivery if Required) (PC010910)"

WMH321444
$385.00 $350.11
"CP-13BD, Coolant Pump Kit for 321357A & 321360A >>> See WMH Shipping options at Check Out ** Note: All WMH orders over $2,500.00 = Free Freight (All WMH Freight Includes Residential & Tailgate Delivery if Required) (PC010910)"

WMH650014
$265.00 $150.00
"CS-5C, 16-piece 5-C Collet Set 1/8"" - 1-1/16"" by 1/16ths for Lathes and Grinders >>> See WMH Shipping options at Check Out ** Note: All WMH orders over $2,500.00 = Free Freight (All WMH Freight Includes Residential & Tailgate Delivery if Required) (PC010910)"

WMH465303
$90.63 $72.50
(( Limited Quantity Special - Call For Availability )) MT-3 LIVE CENTER >>> Free Ground UPS on this item Anywhere within the Lower 48 States (PC070709)


WMH660200
$239.00 $202.50
"22-piece Turning Tool Kit for 13"" and 14"" W Series and Bench Series Lathes >>> See WMH Shipping options at Check Out ** Note: All WMH orders over $2,500.00 = Free Freight (All WMH Freight Includes Residential & Tailgate Delivery if Required) (PC010910)"
