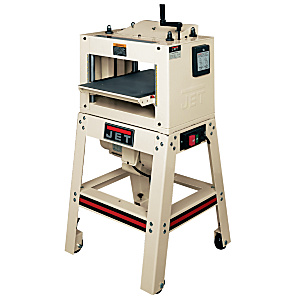

JET JPM-13 13" Planer/Molder

JPM-13CM Closed Stand JPM-13 Open Stand
Specifications
Stock Number: 708524 (CS) & 708526
Model: JPM-13CS & JPM-13
Max Planing Width (in): 13
Max Planing Thickness (in): 6-1/8
Full Width Depth of Cut (in): 1/16
Min. Planing Length (in): 14
Number of Knives: 3
Cutterhead Speed (RPM): 4,500
Cuts Per Minute: 13,500
Cutterhead Diameter (in): 2-9/16
Feed Rate, Planing (FPM): 20
Feed Rate, Molding (FPM): 10
Motor (TEFC): 1-1/2 HP, 1 Ph, 115/230V Prewired 115V
Net Weight (lbs): 242 (JPM-13CS) and 202 (JPM-13)

13" Planer/Molder Combination Machine

  • 13" planer/molder combination machine
  • Cast iron table and base reduce vibration
  • Four precision ground columns provide extra stability when raising and lowering the table
  • Powerful 1-1/2 HP motor is totally enclosed fan-cooled
  • Two matched v-belts deliver full power to the cutterhead
  • Table is accurately positioned with an easy-to-use crank handle
  • Built-in lockable casters are located in the legs
  • Table is accurately positioned with an easy-to-use crank handle
  • Two feed rates increase the versatility of applications
  • Rubber-coated in-feed and outfeed rollers are fully adjustable
  • A new and improved gear box which can now handle molder cutters up to 6" wide in multipasses
  • A set of two infeed and outfeed rollers to help support your work piece
  • An exclusive angled 4" dust port designed to efficiently remove all shavings and sawdust as well as keep your dust collection hose out of the way of your workpiece.

Standard Equipment

  • Knife-setting gauge for planing
  • Knife-setting gauge for molding
  • Adjustment tools

Molding

  • Three-cutter design and extra slow feed rate produce ready-to-use molded stock
  • Most 2" or under cutters can be installed without removing the planing knives
  • Over 40 standard molding cutter sets are available. Custom made cutter sets are also available for a wide variety of applications
  • Special gauge is included to assist in proper setup of molding cutters

Planing

  • Three-knife cutterhead design produces a superior planed finish
  • Cutterhead features knife jacking screws for easy, accurate adjustment

Elliptical/Curve Molding Jig

  • Stock No. 708370
  • The table is made of a durable high density plastic with a low drag coefficient and sealed ball bearings
  • Fast, easy setup. Adjust for ellipses and radius moldings from straight to 18” radius
  • Enables you to make your own moldings simply and profitably
  • Designed exclusively for the JET planer/molder

WMH708524
$1,374.00 $999.99
"(Want a Better Price Call 800-458-3687) JPM-13CS, 13"" Closed Stand Planer / Molder,1-1/2HP,1Ph,115/230V *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout (Commercial, Residential and/or Tailgate Deliveries all at one low price) (090109)"

WMH708526
$1,246.00 $1,073.75
"JPM-13, 13"" Open Stand Planer / Molder, 1-1/2HP, 1Ph, 115/230V *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH708361
$94.00 $78.35
"JDC-13, 4"" Dust Chute for JMP-13 Planer / Molders *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH708366
$128.00 $96.00
"JPM-13-K 13"" Knife Set for JPM-13 Planer / Molders *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH709308
$38.00 $37.24
"3/4"" Dado/Rabbet/Relief Molder Knife Set *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH709309
$113.96 $94.97
"3/4"" Cove for Molder Knife Set *** FREE GROUND UPS On this item, Anywhere within the Lower 48 States. (PC050109)"

WMH709310
$102.00 $76.50
"3/4"" Qrt. Round Molder Knife Set *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH709319
$284.00 $202.92
"3-1/2"" Casing Molder Knife Set *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH709322
$248.00 $177.20
"2-7/8' Crown Molder Knife Set *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH709333
$62.00 $60.76
"1"" Astrigal Molder Knife Set *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"
