Model 4500
COMBINATION

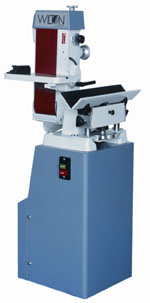

6" BELT AND CHAMFERING MACHINE
The WILTON®
Combination 6" x 48" Belt and Chamfering Machine has been designed to offer vast
performance capabilities. The belt sander handles a variety of finishing chores,
including: deburring, contour sanding, mitering and flat or platen finishing on
all types of shapes and materials. This highly versatile machine manages work
pieces from small pieces to long sections, quickly and easily
Standard Features
6" Belt Finisher
-
Contour finishing,
mitering, flat finishing just to name a few applications
-
Will handle
virtually all the finishing operations in a production line
Chamfering
-
Easily adjustable
chamfering machine manages additional finishing jobs such as: beveling, and
deburring on flats and squares of ferrous and non-ferrous materials
-
Precision chamfer,
bevel or deburr edges easily
-
Chamfer angles from
15° to 45°
-
Easily adjustable
depth of cut
-
The cutter head has
8 easy to change inserts, and combined with an adjustable depth of cut and
angle of cut capacity, can deliver accurate finishes on a repetitive basis
Standard
Equipment
-
Adjustable heavy
duty, cast iron, removable platen
-
Removable upper
guard for contour finishing
-
Variable-position
locks; belt head adjusts vertically, horizontally and in-between
-
Large cast iron
slotted table
-
Adjustable dust
deflector and dust chute
-
Heavy-duty, one
piece stand
Chamfering
|
Specifications |
|
Stock Number |
4500/4501 |
|
Belt Machine |
|
Belt size(in./W x L) |
6x48 |
|
Belt speed (SFPM) |
2850 |
|
Table Size (in.) |
7-3/8 x 14-3/4 |
|
Table tilt |
45° out, 20° in |
|
Miter gauge groove (in.) |
3/8 x 3/4 |
|
Motor 4500 |
1-1/2 HP, 1Ph, 115/230V |
|
Motor 4501 |
1-1/2 HP, 3 Ph, 230/460V |
|
Platen (in.) |
6 1/4 x 14 3/4 |
|
Chamfering Machine |
|
Min. length of work piece (in.) |
3.5 |
|
Max. cutat45°:(in.) |
1/4 |
|
Max. cut at 15°:(in.) |
3/16 |
|
Bevel angle |
15^5° |
|
Inserts |
3" milling cutter head with 8
replaceable carbide inserts |
|
Overall Dimensions (in./W x D x H) |
25 1/2 x 19 x 57 1/2 (Width when belt is
in horizontal position) |
|
Net Weight (lbs) |
250 |
|
|
