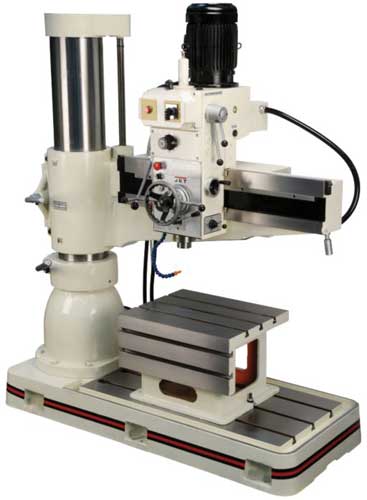

Jet J-1100R 4' Radial Arm Drill

Standard Features

  • The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads

  • The spindle is made of the finest case hardened steel for extra strength and wear

  • The spindle is made of the finest case hardened steel for extra strength and wear

  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top

  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy

  • Push button controls are all reduced to 110V

  • Electrical cir cuits are located in the built-in control box at the rear of the arm- this keeps the contols dust and humidity free while making them easily accessible for maintenance

  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs

  • Arm raising safety device prevents arm from dropping

  • Counter balanced mechanism for spindle return

  • 12 speeds/3 feed rates make exotic materials easier to drill, bore and tap

  • Centralized control center

  • Automatic tool ejector

  • Independent arm manual clamping system, which locks and unlocks head and column

Standard Equipment

  • Built-in work light

  • Coolant pump

  • Tool kit

  • Box table

Specifications
Part Number 320034
Model Number J-1100R
Motor 1-1/2 to 3 HP, 230V, 3 Ph
Number of Spindle speeds 12 (44-1500)
Spindle Taper 4 MT
T-Slots Number and Size (in.) 3 & 3/4
Column Diameter (in.) 10-1/4
Drilling Capacity Cast Iron (in.) 2-1/4
Drilling Capacity Mild Steel (in.) 1-3/4
Tapping Capacity Cast Iron (in.) 1-1/4
Tapping Capacity Mild Steel (in.) 1
Boring Capacity Steel (in.) 3-3/8
Boring Capacity Cast Iron (in.) 4-3/4
Distance Column to Spindle (max/in.) 43-5/16
Distance Column to Spindle (min/in.) 9-5/8
Travel of Head Horizontal (in.) 33-5/8
Distance Base to Spindle (max/in.) 50-3/8
Distance Base to Spindle (min/in.) 12-5/8
Arm Travel Vertical (in.) 24
Quill Travel (in.) 9
Quill Travel w/ Powerfeed engaged (in.) 4
Quill Down feed Rates (IPR) 3 (.002, .004, .006)
Elevating Motor 1 HP
Table Size (in.) 67-3/4 X 28 X 6-1/2
Coolant Pump Motor 1/8 HP
Machine Hieght from Floor (in.) 100
Table Dimensions (in.) 24-3/4 X 20-1/2 X 16-1/2
Overall Dimensions 74 x 34 x 89
Height 89 inch
Width 34 inch
Length 74 inch
Net Weight 4190 pound
