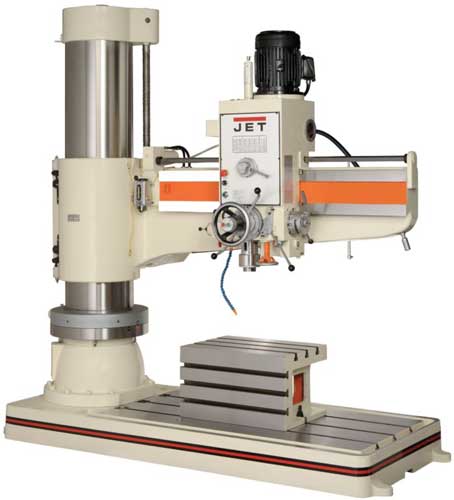

Specifications |
| Part Number |
320038 |
|
Model Number |
J-1600R |
| Motor |
1-1/2 to 3 HP,
230V, 3 Ph |
|
Number of Spindle speeds |
12 (40 - 1920) |
| Spindle Taper |
5 MT |
|
T-Slots Number and Size (in.) |
3 & 7/8 |
| Column Diameter
(in.) |
17 |
|
Drilling Capacity Cast Iron (in.) |
2-7/8 |
| Drilling Capacity
Mild Steel (in.) |
2-1/2 |
|
Tapping Capacity Cast Iron (in.) |
2-3/8 |
| Tapping Capacity
Mild Steel (in.) |
2 |
|
Boring Capacity Steel (in.) |
5 |
| Boring Capacity
Cast Iron (in.) |
7-3/8 |
|
Distance Column to Spindle (max/in.) |
63 |
| Distance Column to
Spindle (min/in.) |
17 |
|
Travel of Head Horizontal (in.) |
49-5/8 |
| Distance Base to
Spindle (max/in.) |
63 |
|
Distance Base to Spindle (min/in.) |
13 |
| Arm Travel Vertical
(in.) |
50 |
|
Quill Travel (in.) |
14-9/16 |
| Quill Travel w/
Powerfeed engaged (in.) |
13 |
|
Quill Down feed Rates (IPR) |
6 (.003 - .038 IPR) |
| Elevating Motor |
2 HP |
|
Table Size (in.) |
97-5/8 X 41-11/32 X 8-1/4 |
| Coolant Pump Motor |
1/2 HP |
|
Machine Hieght from Floor (in.) |
124-58/64 |
| Table Dimensions
(in.) |
27-7/8 X 19-5/8 X
15-3/4 |
|
Clamping Motor |
1 HP |
|
Overall Dimensions |
116 x 55 x 112 |
|
Height |
116 inch |
|
Width |
55 inch |
|
Length |
112 inch |
|
Net Weight |
11000 pound |
