Wilton 7020/7040 Bandsaw

10" x 16" Band Saws

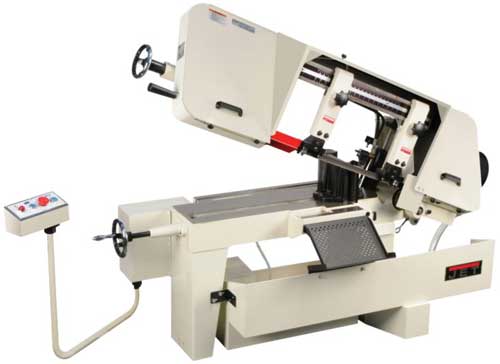

WILTON 10 x 16" Horizontal Cut-Off Band Saw Models 7020 & 7040

Standard Features

  • Variable Speed drive system

  • Exclusive 6 contact point table blade guide assemblies

  • Exclusive swivel control panel

  • One piece wheel cover

  • Heavy duty, rugged transmission with hardened and ground gears

  • Adjustable blade guides with 6 point contact combination bearing and carbide

Specificaitons

STOCK NUMBER

7020/7040

Cutting Capacity

Round (in.)

10

Square (in.)

10x10

Rectangle (in.)

9x16

Blade Size (in.)

1 x 0.035 x 135

Blade Wheel Speeds (SFPM)

100 - 350

Blade Wheels (in.)

14

Height of Work Table (in.)

23-1/2

Motor for 7020

1-1/2HP, 115V, IPh

Motor for 7040

2HP, 220/440V, 3Ph

Overall Machine Dimensions (LxWxH/in.)

79Lx31Wx41H

79Lx31Wx41H

930

Standard Equipment

  • Patented 3-jaw vise

  • Variable Speed drive system

  • Exclusive 6 Contact point blade guide assemblies

  • Exclusive Swivel control panel

  • One piece wheel cover

  • Heavy duty, rugged transmission with hardened and ground gears

  • Recirculating coolant system standard, 1 GPM pump, 8 gallon reservoir and coolant applied through the blade guides


Click here for Bandsaw Blades!

7020_7040 copy.gif WMH7020
$5,020.00 $4,099.00
">>> Want a Better Price? CALL 1-800-458-3687 <<< 10"" X 16"" Capacity, 1-1/2HP, 1Ph, 115/230V, 115V at Switch **limited Time Offer FREE - 1"" Turtle Wax Waxer, 3788 ::::: FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"

WMH7040
$5,020.00 $4,099.00
">>> Want a Better Price? CALL 1-800-458-3687 <<< 10"" x 16"" Capacity, 2HP, 3Ph, 230V, 115V at Switch **limited Time Offer FREE - 1"" Turtle Wax Waxer, 3788 ::::: FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"


WMH7040-4
$5,099.00 $4,099.00
">>> Want a Better Price? CALL 1-800-458-3687 <<< 10"" x 16"" Capacity, 2HP, 3Ph, 460V, 115V at Switch **limited Time Offer FREE - 1"" Turtle Wax Waxer, 3788 ::::: FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"

WMH5674011
$103.37 $87.90
"Replacement Blade for WILTON« 10"" x 16"" Horizontal Bandsaws- 4/6VT x 1"" x .035"" X 135"" - Bi-Metal (WEIGHT = 1 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

WMH5674021
$103.37 $87.90
"Replacement Blade for WILTON« 10"" x 16"" Horizontal Bandsaws- 6/10VT x 1"" x .035"" x 135"" - Bi-Metal (WEIGHT = 1 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "


WMH5674022
$103.37 $87.90
"Replacement Blade for WILTON« 10"" x 16"" Horizontal Bandsaws- 5/8VT x 1"" x.035"" x 135"" - Bi-Metal (WEIGHT = 1.2 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "
