BB-12010H Hydraulic Box and Pan Brake
Click on image to enlarge
 The BB-120H hydraulic bending brake is a
very powerful machine that can bend up to 10 gauge mild
steel and 14 gauge stainless steel. The machine has a very
rigid electro welded steel frame with massive truss rods for
additional support to minimize any deformation with bending
at full capacity. This box and pan brake has 26-6” fingers
assorted in different sizes so the fabricator can adjust
them for different box and pan applications.

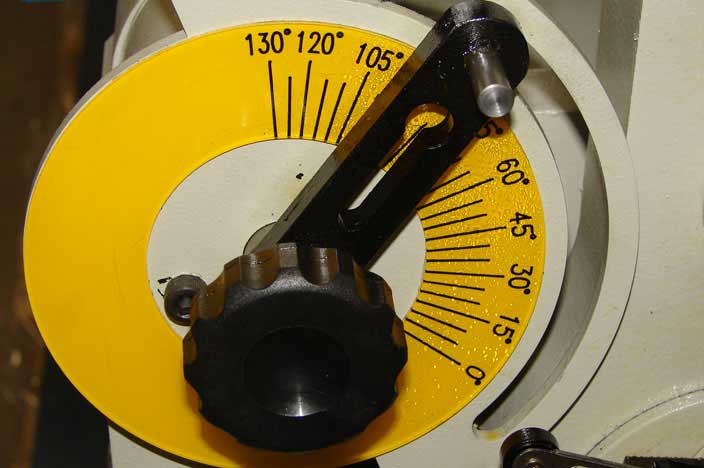

This hydraulic bending brake allows the
operator to dial in a programmed bend when the machine is
used in the manual or semi-automatic mode. Operation of the
machine can be done at the operator council by toggle or by
using the foot pedal controls. The base of this model has an
extra rigid design to support the weight of heavier
materials. There is an adjustable table crowning devise on

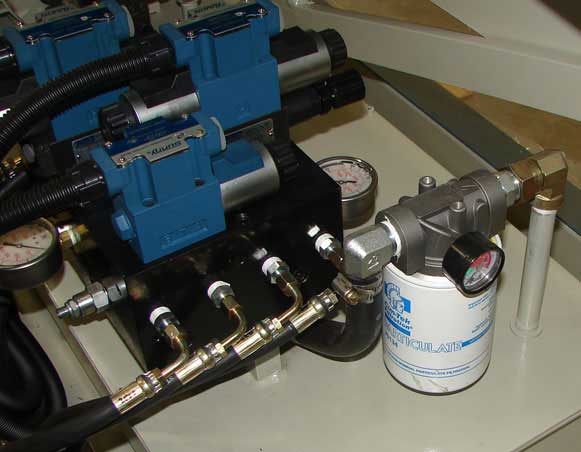

this heavy gauge model. The powerful industrial grade
hydraulics clamp the material at the beam, lifts the leaf to
the pre-programmed bend, and finally opens the beam when the
bend is complete.
This is the perfect hydraulic bending brake
for those production oriented fabrication shops. Heavily
built to offer years of service and profit to any production
shop |
