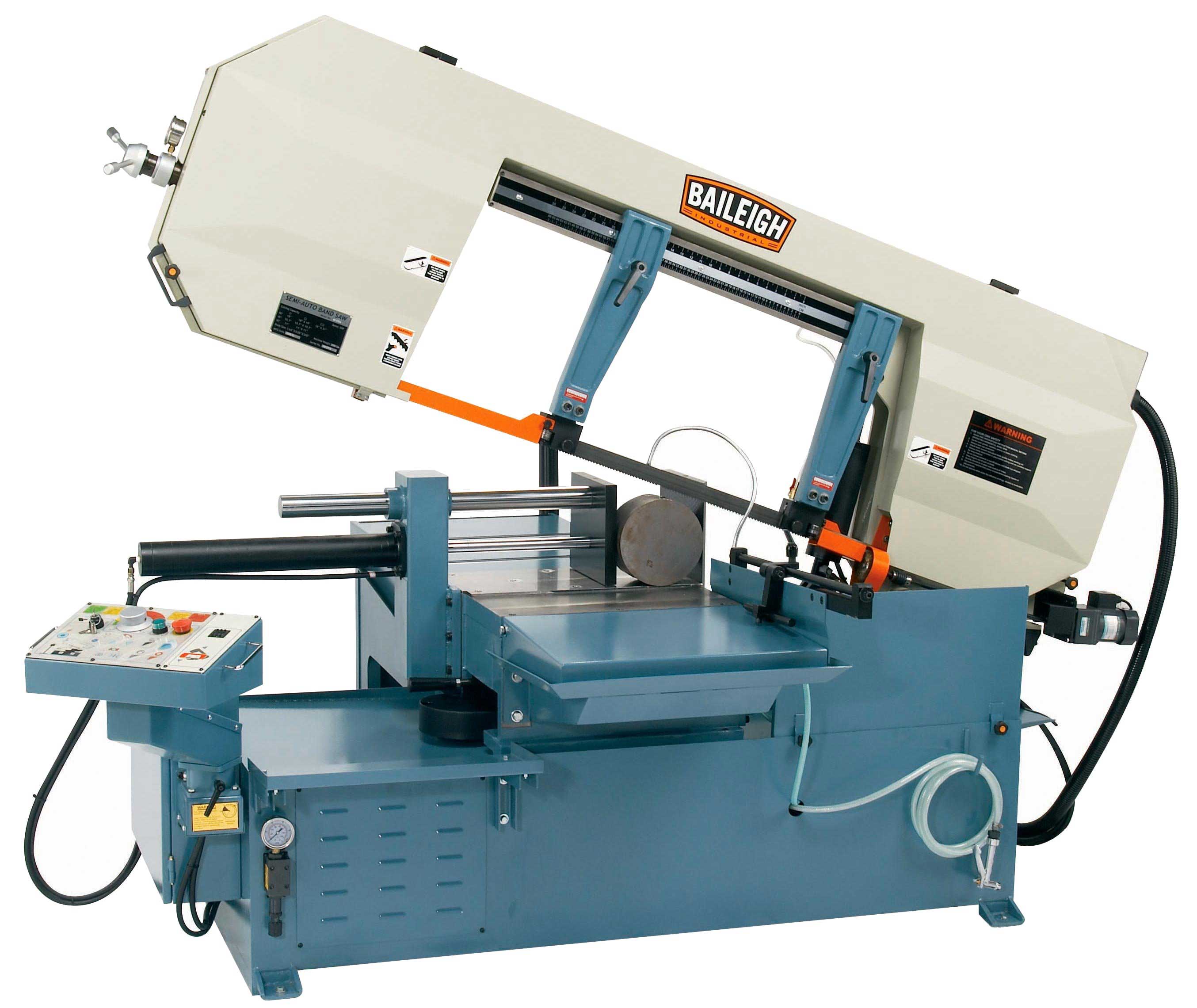

Baileigh BS-24SA Bandsaw


Click on image to enlarge

The BS-24SA horizontal band saw has a massive 18" x 21" capacity and utilizes a huge 1-1/2" blade, meaning you will get extremely straight cuts. This band saw is a semi-automatic model which has a powerful hydraulic vise, down feed, and bow return. When initiating a cut the vise will close, the machine will start-up and proceed with the cut. When the cut is complete the blade will shut down, the cutting head will return to the start position and the vise will open up, ready for the next cycle to proceed.

The well built cutting head has a blade tensioning devise that monitors the tension on the bow and allows the operator to adjust the blade to the proper tension. This really increases the life of the saw blade and the drive bearings in the bow. The heavy cast blade arms use bearings and adjustable Tungsten carbide inserts to keep the blade straight throughout the cutting process.

This horizontal band saw comes with a strong roller infeed table with side roller and a strong out feed table. The powerful coolant system has three distribution points to cool and lubricate the blade and wash away chips. The brass chip removal wheel is motorized for optimum performance.

General Specifications:

  • Head Swivels up to 60° Miter, Semi-Automatic

  • Blade Size is 1-1/2" x .050" x 210"

  • Variable Blade Speeds 105-315 feet/min

  • 5 HP Motor

  • Measurements are 91" x 92" x 70"

  • Weight is 3080 Lbs

  • Service Requirements: 220 Volt, 60HZ, Three Phase

Capacity:
Cutting Degree 90° 45° 60°
Round 18" 15-3/4" 11"
Rectangle 18" x 21" 15-3/4" x 15/34" 11" x 11"


BAIBS-24SA
$20,295.00 $16,905.74
" ((LIMITED TIME OFFER)) - Band Saws 220 Volt Three Phase Semi-Automatic Metal Cutting Band Saw. 18"" Round Capacity @ 90 Degrees, 15.7"" Round Capacity @ 45 Degrees, and 11"" Round Capacity @ 60 Degrees Via Mitering Head. 1-1/2"" Blade Width. Variable Speed Control (99-374 FPM). Includes Hydraulic Vice, Hydraulic Down Feed, Hydraulic Bow Return, Quick Lock Vice, Blade Tension Device, Automatic Shut-off, Hydraulic Descent and Coolant System. Bundling Version Available >> CALL 800-458-3687 for Availability and Freight Cost (PC110609)"
