Uses a HSS cold saw blade from 14" to
16". The standard blade used in this machine is a 16"
blade. A larger blade is recommended due to the fact the
machine can cut faster and the larger blade will last
considerably longer.
-
Drive system is gear driven.
-
This machine has an adjustable floating
vise and a numerical length display for the length.
-
Comes standard at 3200RPM.
-
Service Requirements: 220V, 60 Hertz,
Three Phase
-
Automatic CNC cold saw powered by large
5 hp motor; 3 hp motor for hydraulic pump, and 1/8 hp
for coolant pump motor.
-
The head swivel is fixed at 90 degrees.
-
Bar feed length is: first stroke - 26";
second stroke - 51"; third stroke - 77".
-
Comes standard with the automatic cnc
cold saw HMI (human machine interface) control with
touch screen display to provide a user friendly
experience and quick change overs.
-

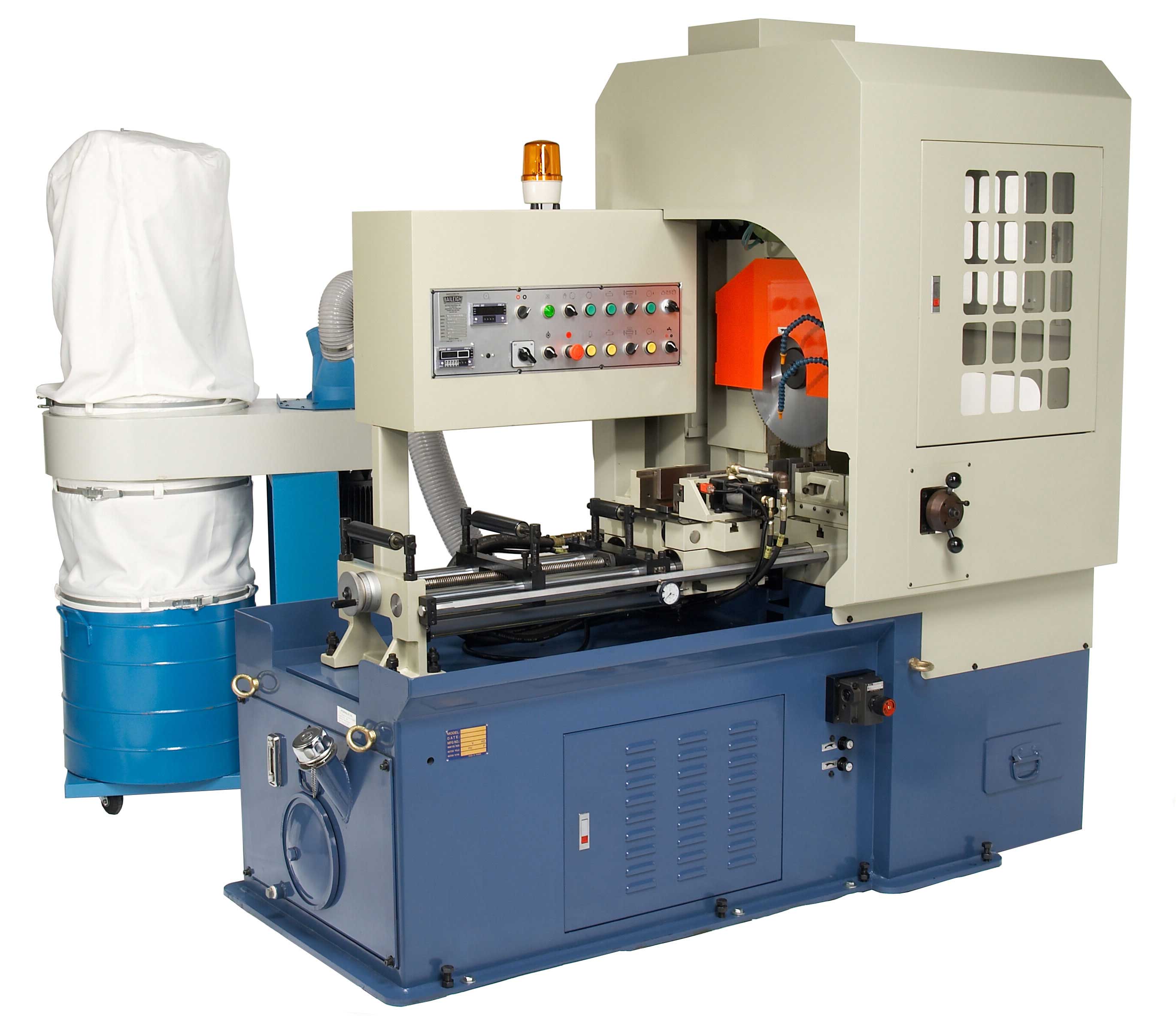

The CS-400AV automatic cold saw is a
column type cold saw that includes automatic feed and
hydrualic clamping.
