 This

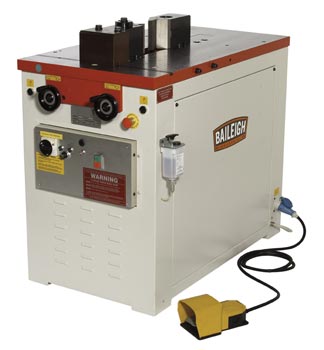

is the HPB-25 horizontal press brake. Its special
structure makes it ideal for press bending, bending,
punching, and cutting of all types of section bars, flat
bars, and tubes. The positioning of the cylinder under the
workbench allows freedom of action for any type of operation
on the workbench, and the controls set at the front of the
machine give the operator a high degree of control over the
working area during the operating phases.
The HPB-25 horizontal press brake
stands for 25 imperial tons of power. Twenty-five tons is
the proper tonnage for approximately 50 % of all horizontal
press brake applications. Companies interested in a
horizontal press brake should start with a machine with a
capacity no lower than 25 tons. The HPB-25 employs our
unique cylinder under the table allowing for the perfect
flat open work table environment that will bring more profit
to the end user. This series is a simple series where the
operator controls the stroke in and the stroke back by two
hand wheels. Simplicity means profit.
The workbench is manufactured in tempered
and ground steel, the carriage runs on double guides with
dust scraper and forced lubrication. The mobile pin moves at
two speeds and the stroke is adjusted via a high precision
electrical limit switch. Lubrication system on the
HPB-25 horizontal press brake allows for years of
operation.
