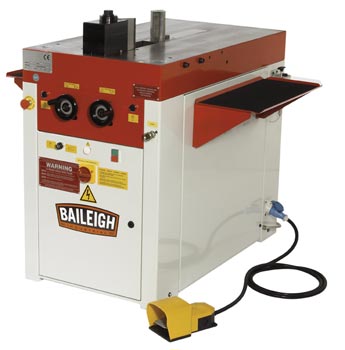

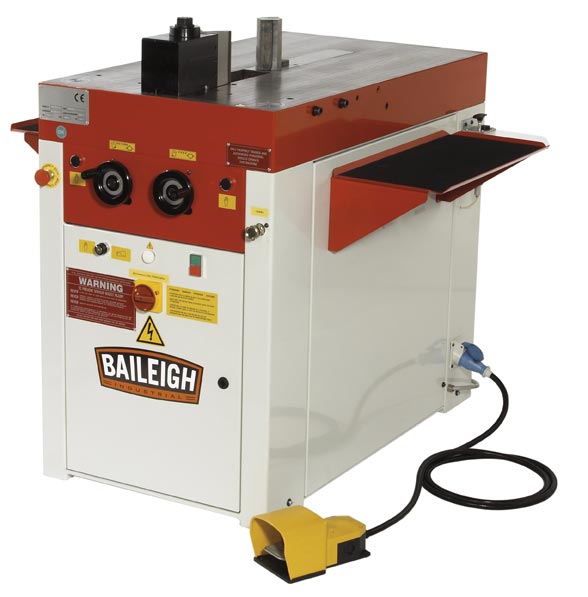

Baileigh HPB-45 Horizontal Press Bender

The horizontal press brake was first introduced by SIMASV in 1957, are particularly distinguished by their flexibility and versatility. User-friendly and easy to maintain, our horizontal press brakes can be fitted with countless tools.  Our horizontal bending press fits any small to medium-sized industry  when machinery for large-scale production must necessarily make way for machinery with distinctly lower production costs.

The 45 ton HPB-45 is the proper tonnage for 90% of all applications for a horizontal press brake.  For many people who buy a 25 ton machine soon wish they would have made the small extra investment, because the 45 ton machine covers the biggest spectrum of profitable jobs that can be landed by the firm, making the HPB-45 the most profitable machine in our line up for the investment made.  We do offer the HPB-45 in a manual mode with the two hand wheels for adjusting the stroke in and out, while we also offer a digital version that allows for programming several hundred complex functions and can come in a two axis machine as well.

Our horizontal press brakes can be fitted with hundreds of tooling options for acting as a press brake (using the table as the level for accuracy), ram bender (for pipe or solids), rotary draw tubing bender, shear, punch, ornamental iron twisting machine, straightener, etc.  This machine tool is great for any welding shop, fabricator, or general job shop.  No other machine on the market is as versatile as the horizontal bending press.

Click on image to enlarge

click on image to enlarge

• Most tonnage for dollar invested
• Cylinder under work table allowing for better accuracy and more work surface
• User performs operation in front of the machine instead of the side of the machine making it easier to produce quality products, and frontal position on our press brakes is protected and practical position for the operator

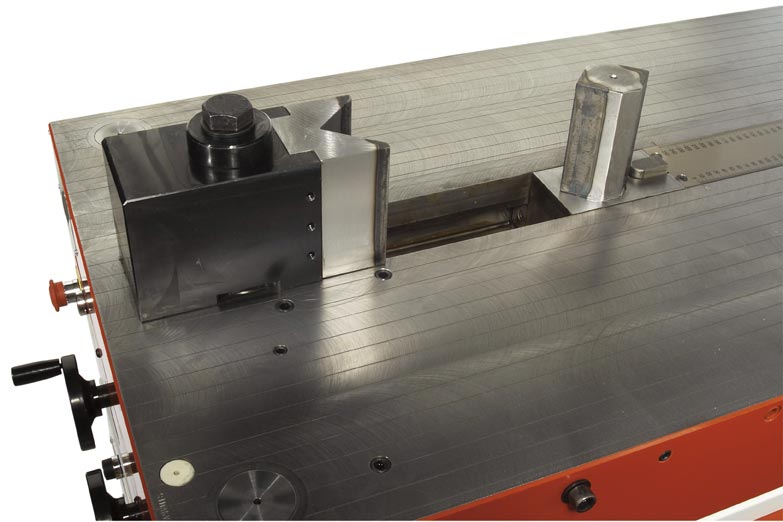

• Our patented conical pins with lock-on bayonet fittings eliminate all mechanical slack as far as tolerance is concerned, providing maximum rigidity with minimal flexing of work table.  This patented feature is why no other horizontal bending press is as accurate
• Our super series stroke control is by means of hydraulically controlled stroke end devices that allows for greater accuracy (compared to limit switch stroke end control) allowing for continuous movement under pressure, achieving maximum accuracy and repeatability in position;  and much more.
