Main Features:
- Our machines shear with the blades in the
negative position as well as the positive position.
Which one you use is based on which part you want to
keep, the finished part pulled from the machine
(best is Negative) or the dropped piece (best is
Positive). Negative cut allows for less deformation
on the finished part. Negative cutting clamps the
sheet metal down to reduce movement. Positive
cutting will want to move the sheet away from the
stops allowing for room for error.
- Regarding our variable angle notchers, the
variable angle blades are fixed in three positions.
The pivot point and the end points of each blade is
fixed after adjustment to angle is made. This type
of rigidity distiguishes this machine from
competitors.
- The stop guides have dove tail grooves in the
tail that allows for a tighter more secure guide
setting, allowing our machine more accuracy and
repeatability.
- The shearing head is the most rigid in the
industry because we employ a five-point fixed head.
A stable shearing head is very important to blade
life, and machine life when notching heavier plate.
- Our notchers drop the waste into a chute and the
chute drops the waste in a bin outside of the
machine. Believe it or not, there are some machines
on the market where the dropped material goes into a
bin in the middle of the machine making the operator
have to bend into the machine to take out a heavy
bin of scrap to throw out. Thus our machines offer
a more ergonomically friendly machine for the
operators back.
- Our variable angle machines can notch from 30°
up to 140°. We can shear a 140° notch in one pass
with one drop, some other machines require two cuts
resulting in two drops.
- We offer notchers that can shear up to 3/8"
thick mild steel, with blades up to 9-3/4" long.
- We offer fixed angle and variable angle notchers
with or without punching capabilities.
|

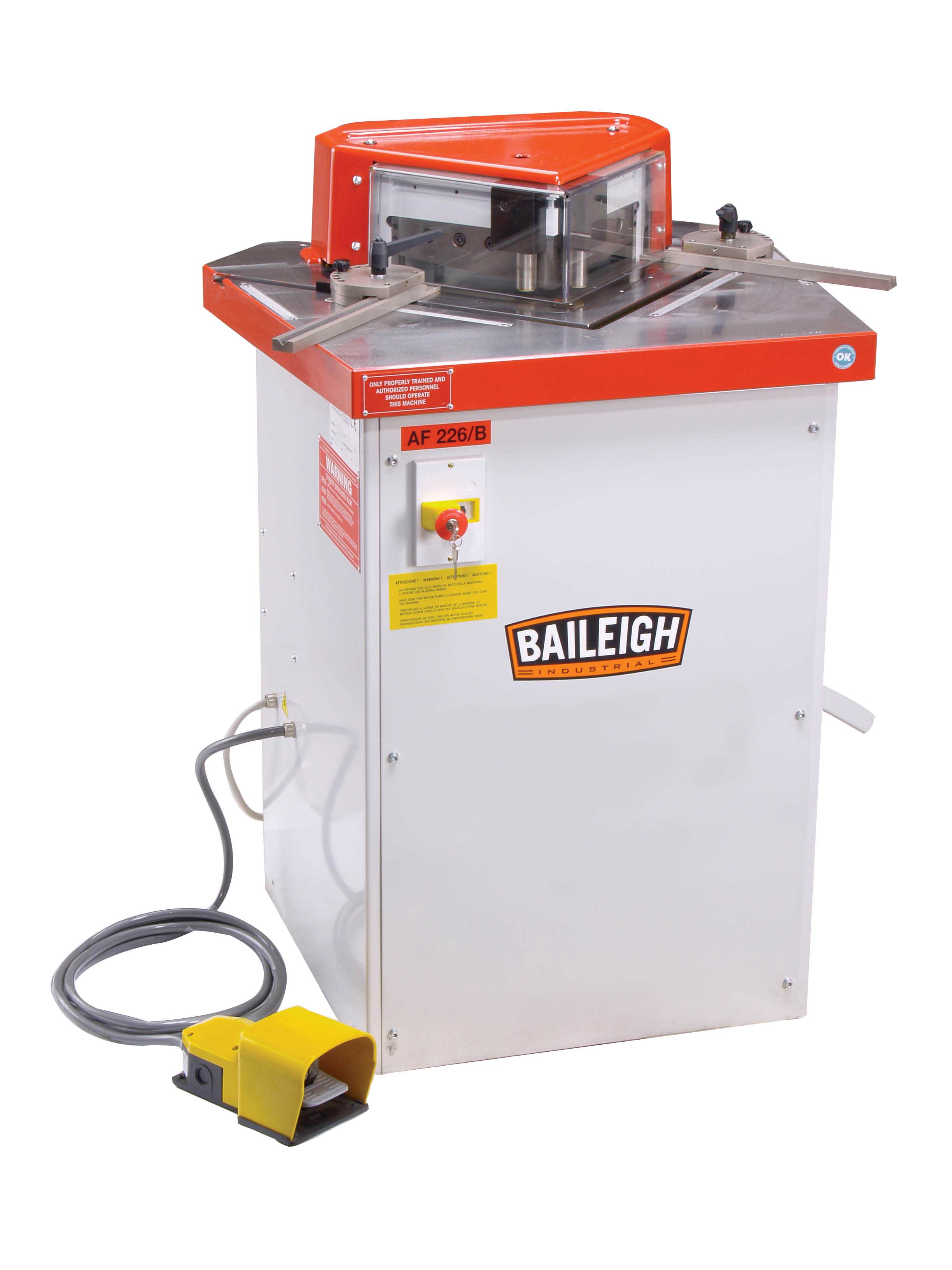

Click on image to enlarge |
