Five Station Fully Integrated Vertical Ironworker: (Click Links
to View Detailed Picture of Features)
|

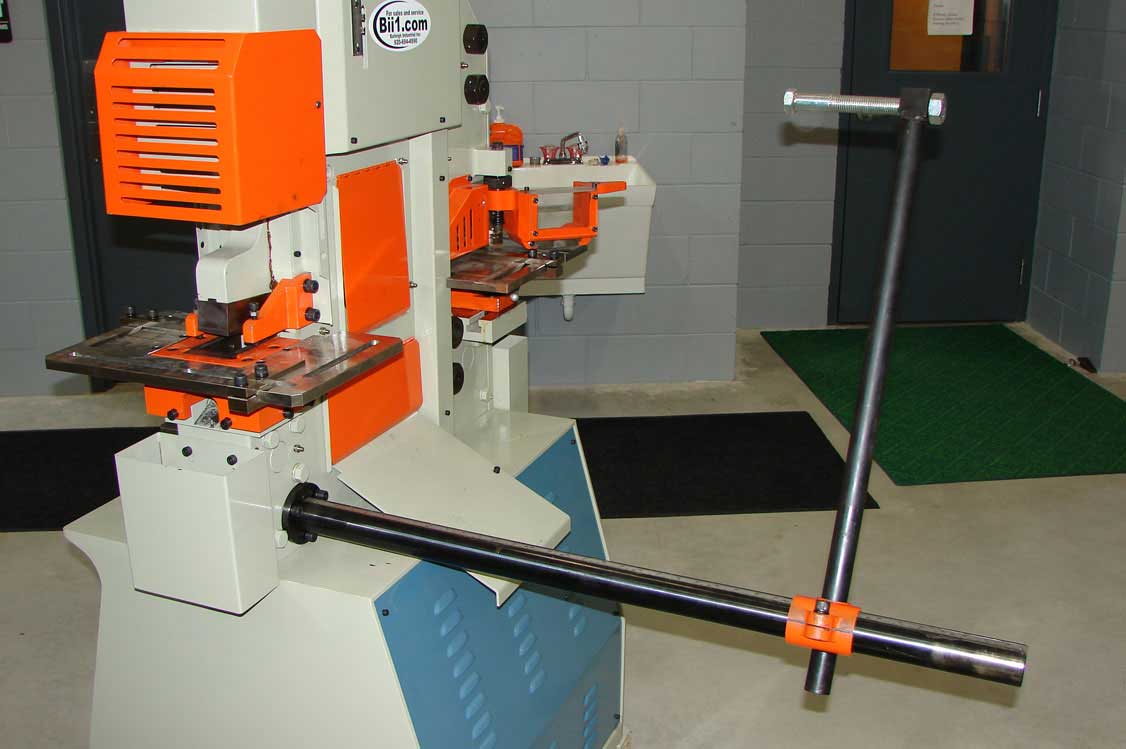

Baileigh's industry
leading five station 62 ton Hydraulic Ironworker is the perfect
addition to any fabrication shop where punching, shearing and
notching is required in plate, bar, and various types of angle iron.
This iron worker was designed and is manufactured to the highest
standards in the industry, ensuring a lifetime of productivity for
your enterprise.

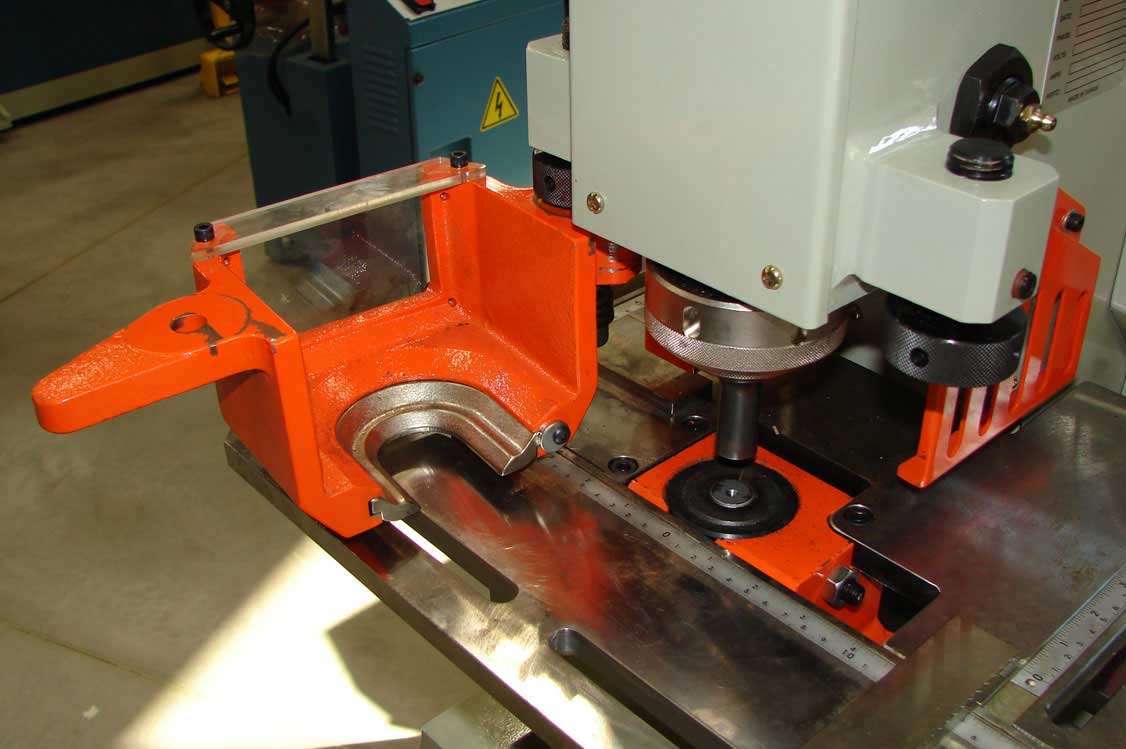

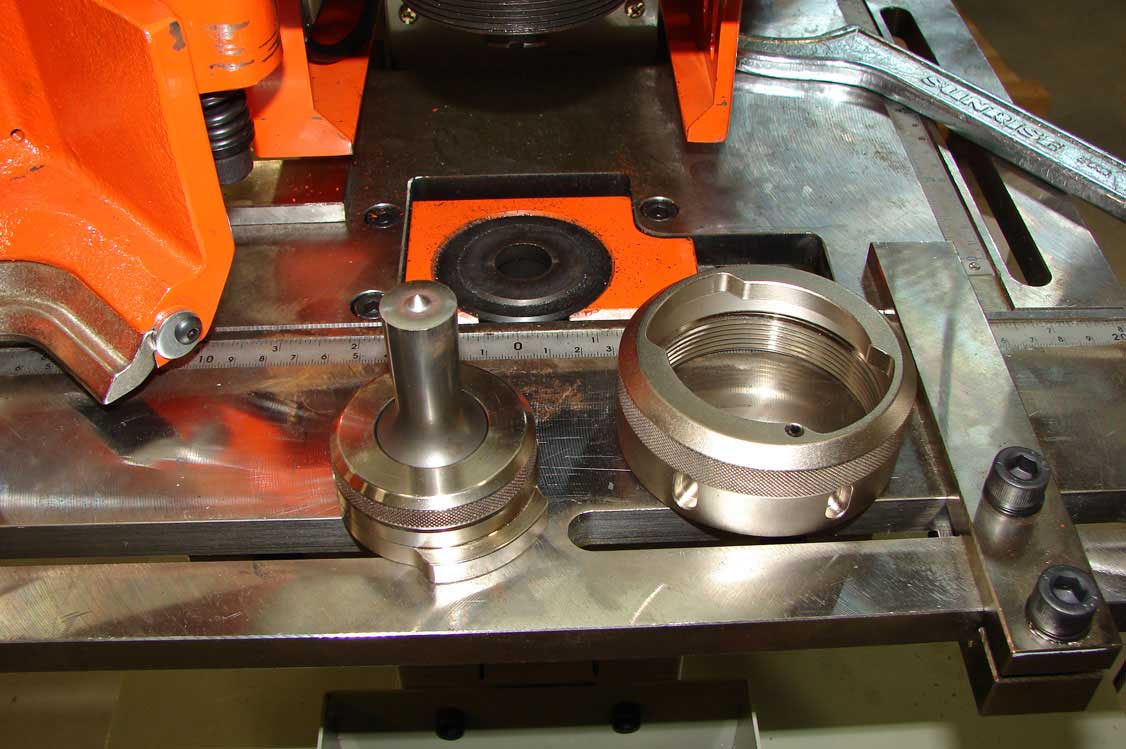

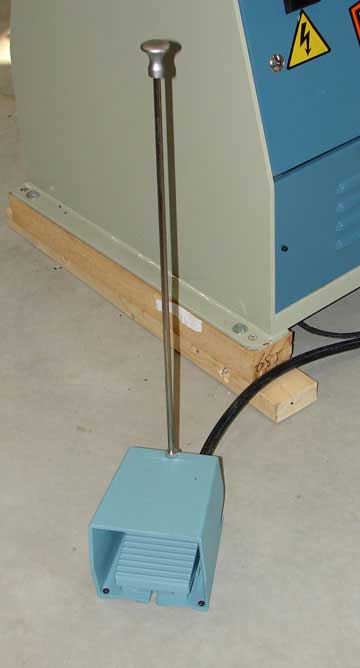

All Baileigh Ironworkers utilize true vertical movement that has
eliminated any sort of pivot and mechanism allowing for the
smoothest punching station on the market. The extremely heavy duty
all welded integrated steel frame and vertical motion allow the
operator to punch at full capacity with no jarring or vibration,
allowing for reduced tooling costs and longer machine life. The
SW-62 has a deep 8" throat. Stable, oversized work tables with

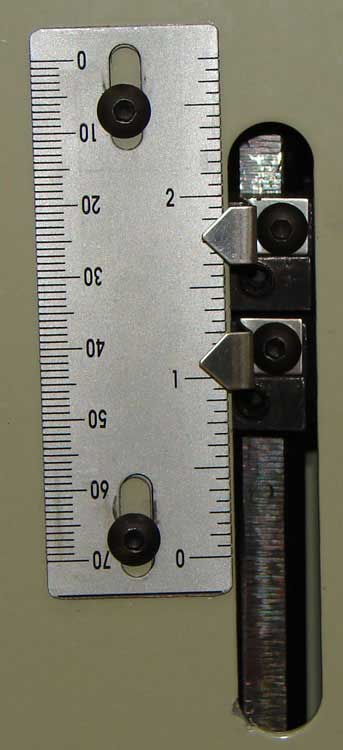

locking material guides are coupled with a very visible metered
scale allowing for fast setup and aid the operator during multiple
production runs.

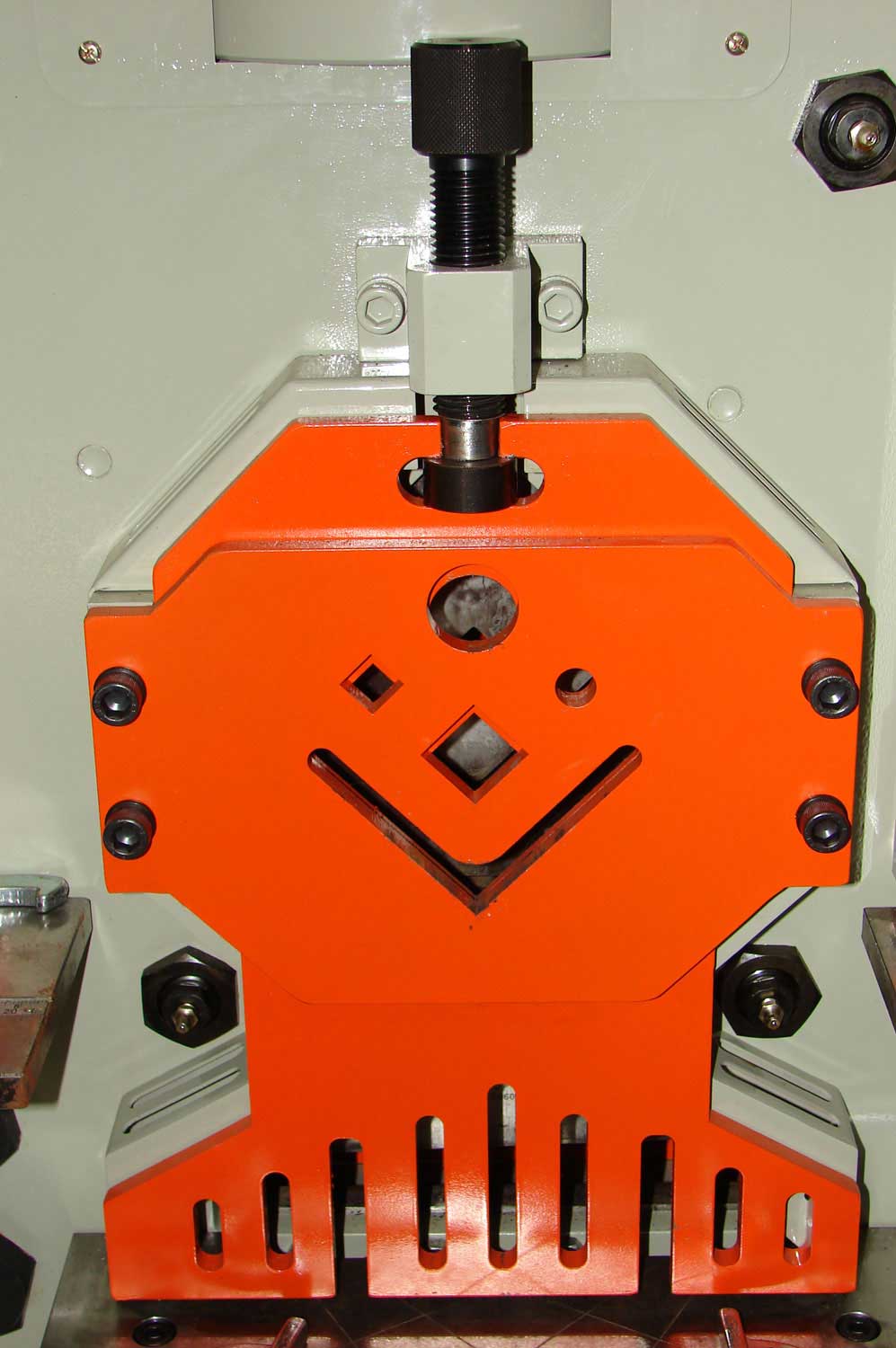

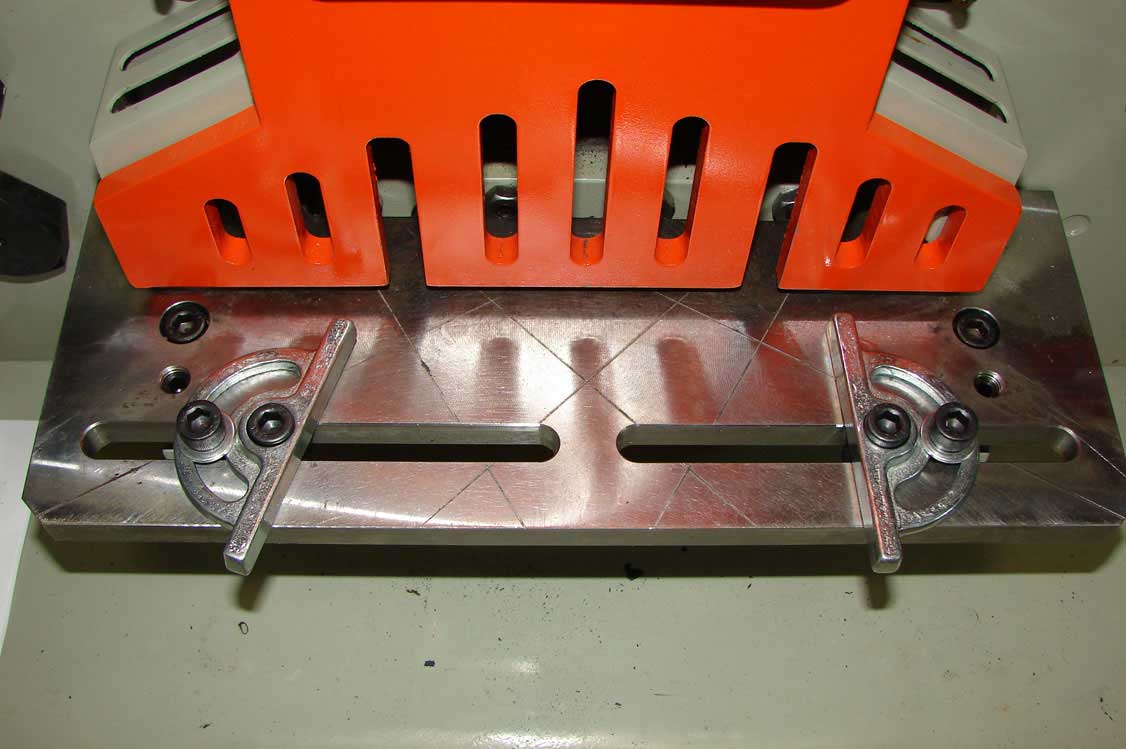

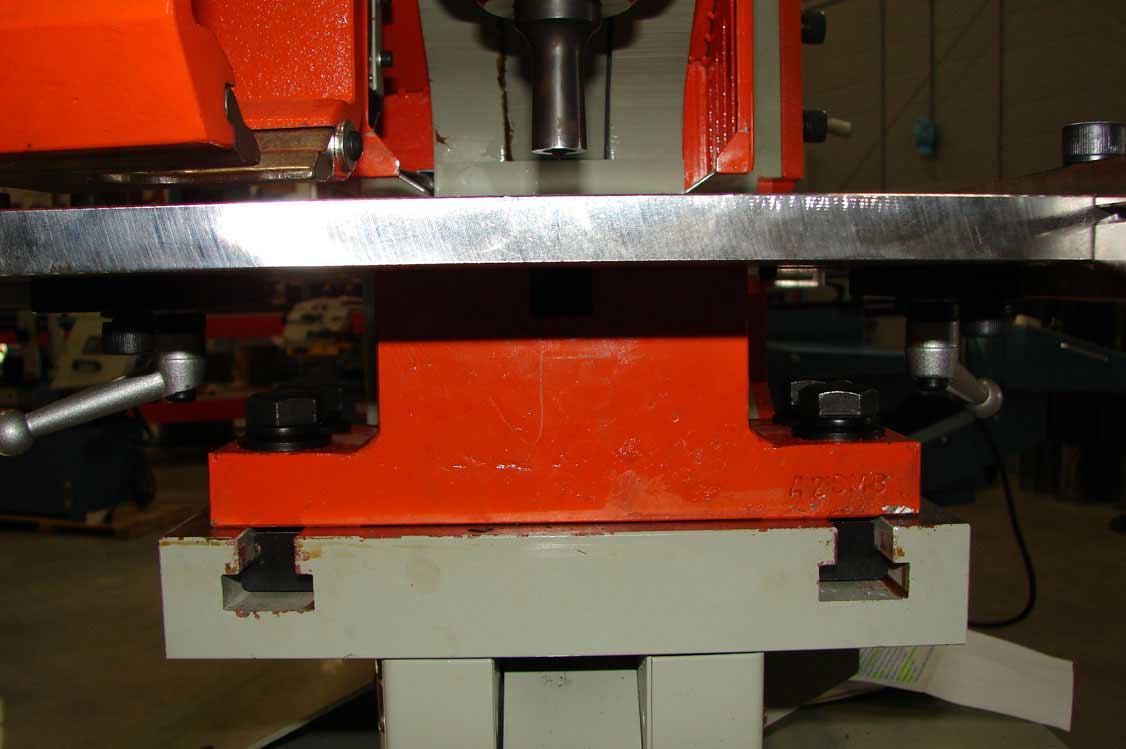

The shearing station has the ability to cleanly cut through metal
with absolutely no left over waste (noting many other popular brands
of Ironworkers leave a kerf or slug of waste). A solid material

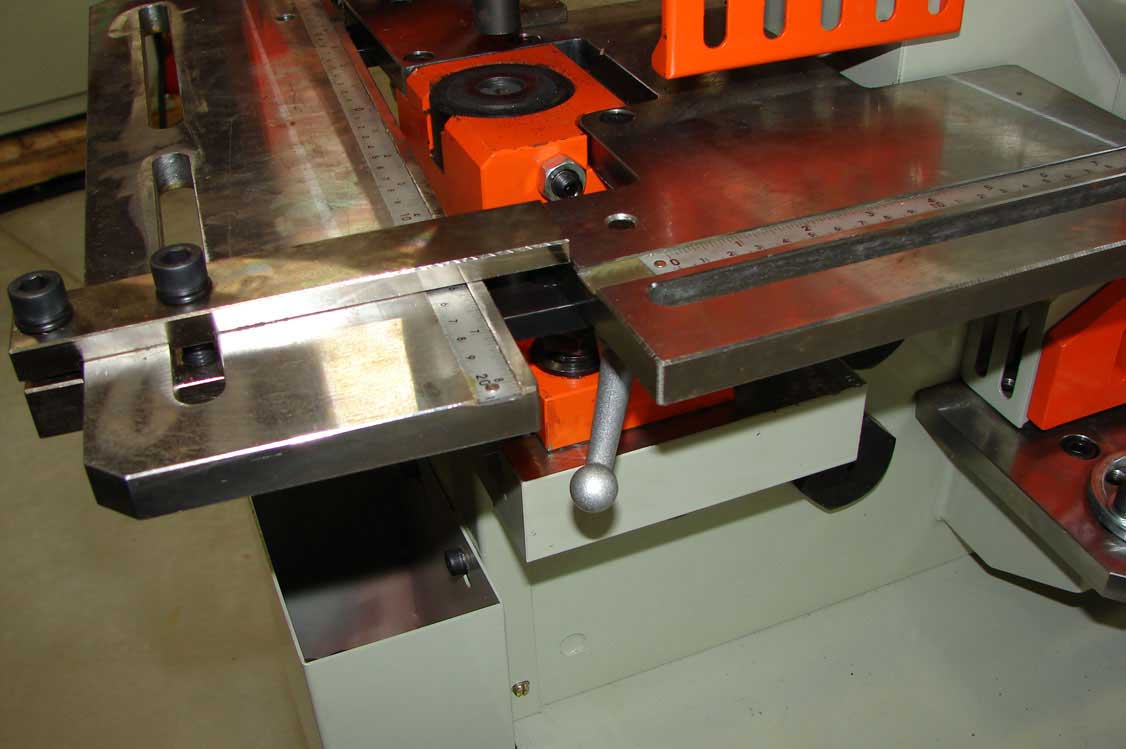

clamp can be quickly adjusted via a knurled handle. The operator
table is oversized with locking material guides and scribed angle
markings, to assist with multiple production runs. The material
template allows for round, square, flat and angle iron sheering with
optional profiles available. There is a quick position template for
producing perfect 30, 45, or 60 degree angles in seconds.

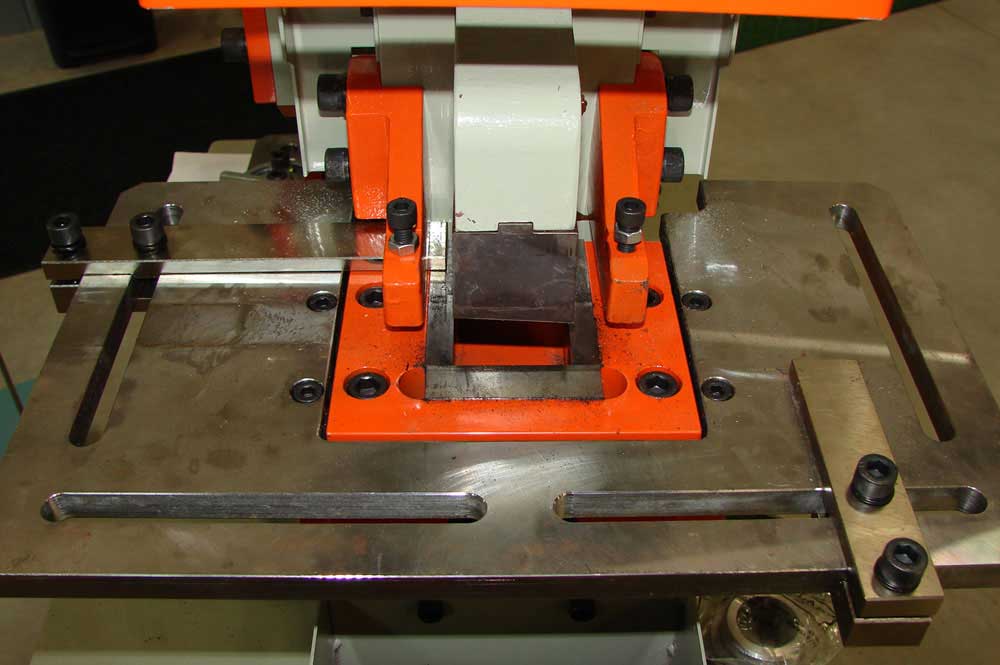

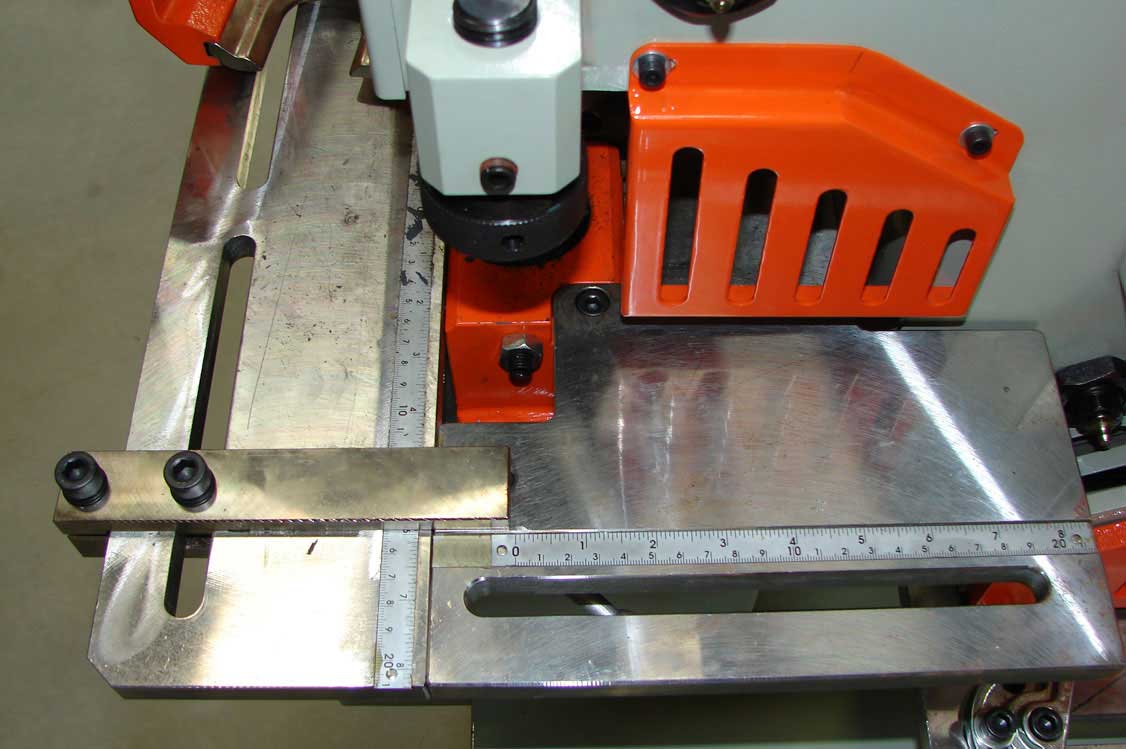

The notching station allows for quick notches of plate, angel or
U-channel in seconds. Proper guarding lifts out of the way when in
production and drops down safely when not in use. The notching
station has an oversized metered work table that helps keep material
from lifting. Locking product stops are standard offering quick set
up and additional accuracy when working on multiple production runs
of the same part.

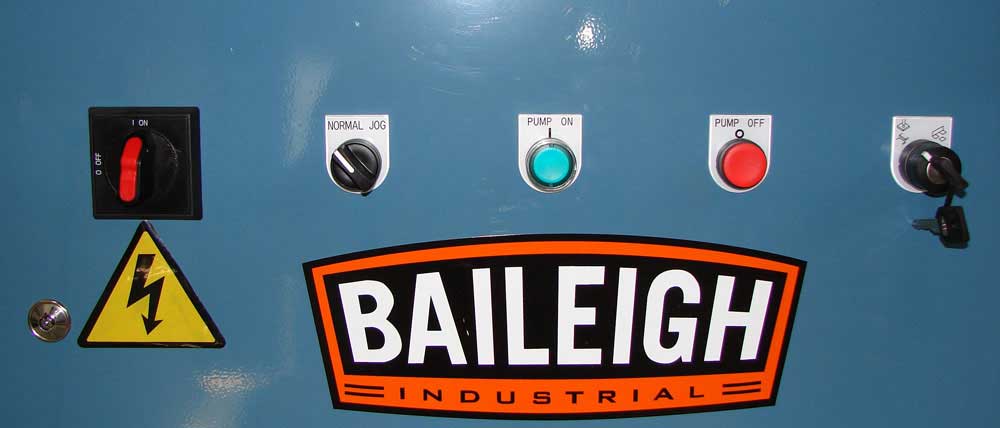

The SW-62 Ironworker can be ordered with service requirements of:
220V, 60 Hertz, Single Phase or 220V, 60 Hertz, Three Phase.
|
|
SPECIFICATIONS |
| |
Imperial |
Metric |
|
Punching |
| Punching Pressure |
62 Tons |
55 Tons |
| Punch
Capacity |
1.125" x
0.625" |
28mm x 15mm |
| Diameter x Thickness |
1.625" x 0.437" |
40mm x 11mm |
| Throat Depth |
8" |
200mm |
| Max Stroke Length |
2" |
50mm |
| Cycles / Min |
28 |
| Working Height Up to Die |
39.5" |
1,000mm |
|
Flat Shearing |
| Flat Bar Shearing |
13.25" x 0.625" |
350mm x 15mm |
| Blade Length |
14.125" |
360mm |
| Angle Flange Trim |
4" |
100mm |
| Working
Height |
31.5" |
799mm |
|
Angle Shearing |
| At 90° Shearing |
4" x 4" x 0.375" |
100mm x 100mm x 8mm |
| Working
Height |
40" |
1,012mm |
|
Bar Shearing |
| Round Bar Shear |
1.5" |
40mm |
| Square Bar
Shear |
1.5" x 1.5" |
38mm x 38mm |
| Working Height |
44" |
1,113mm |
|
Notching |
| Rectangular Notcher (WxDxT) |
2" x 3.5" x 0.312" |
50.8mm x 90mm x 8mm |
| Working
Height |
40" |
1,000mm |
|
Special Tooling |
| Single Vee Press Brake (LxT) |
6.312" x 0.312"* |
160mm x 8mm* |
| Multi-Vee
Press Brake (LxT) |
9.875" x
0.156"* |
250mm x 4mm* |
| Angle Bending* |
2.5" x 0.312"* |
65mm x 8mm* |
| Pipe notching* |
2.5"* |
63mm* |
| Channel Shear |
4"* |
102mm* |
| I Beams Shear |
4"* |
102mm* |
| Vee-Notcher (SidexSidexT)* |
3.5" x 3.5" x 0.312"* |
90mm x 90mm x 8mm* |
|
Other |
| Electric Power (HP) |
5 HP |
| Net Weight
(Apr.) |
2,310 lbs |
1,050 kg |
| Machine Dimensions Apr. (LxWxH) |
45" x 30" x 68" |
1,143mm x 762mm x 1,727mm |
*Optional Tooling
Based on material tensile strength of 65,000 psi
Design/Specifications subject to change without notice |
|
|
