Five Station Fully
Integrated Vertical Ironworker: (Click Links to View Detailed
Picture of Features)
- Independent dual operator design!
- True vertical movement on all stations – less deformation
and cleaner cuts – no waste!
- Oversize, 2 piece quick release
punching table with adjustable stops and sae / metric scale
– Standard!
- Oversize
notching table with adjustable stops – Standard!
-

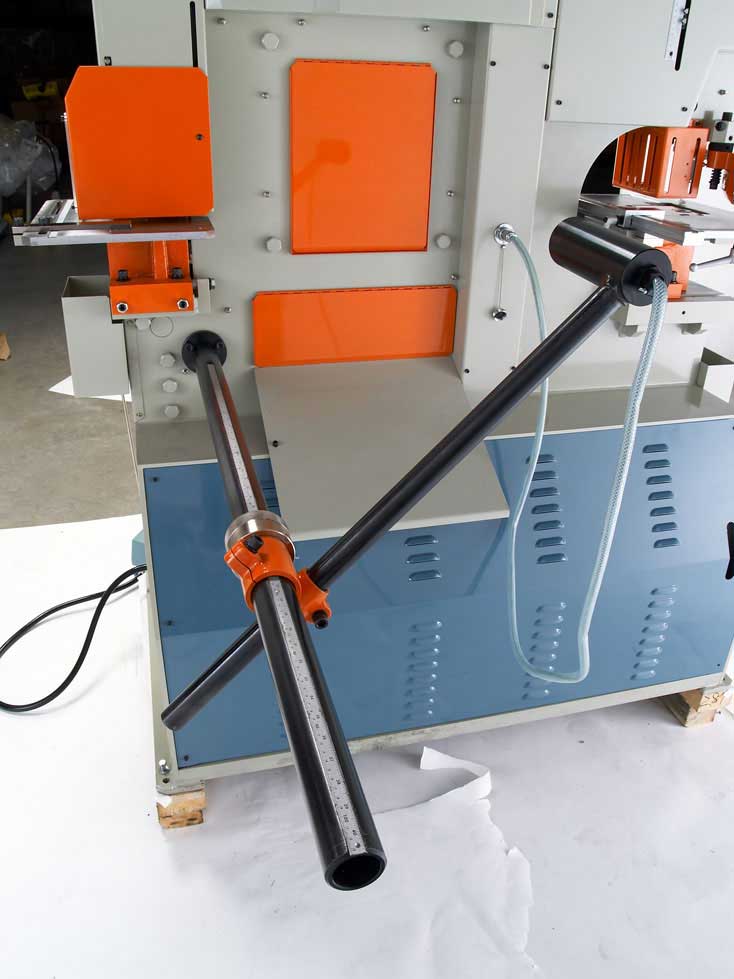

Electric back gauge for precise operation at all stations –
Standard!
- CE Approved Cover inter-lock system for maximum safety –
Standard!
- Surprisingly Quiet, smooth and precise operation due to
robust welded framework – zero flex!
- Dual three position
remote foot pedals for accurate control – Standard!

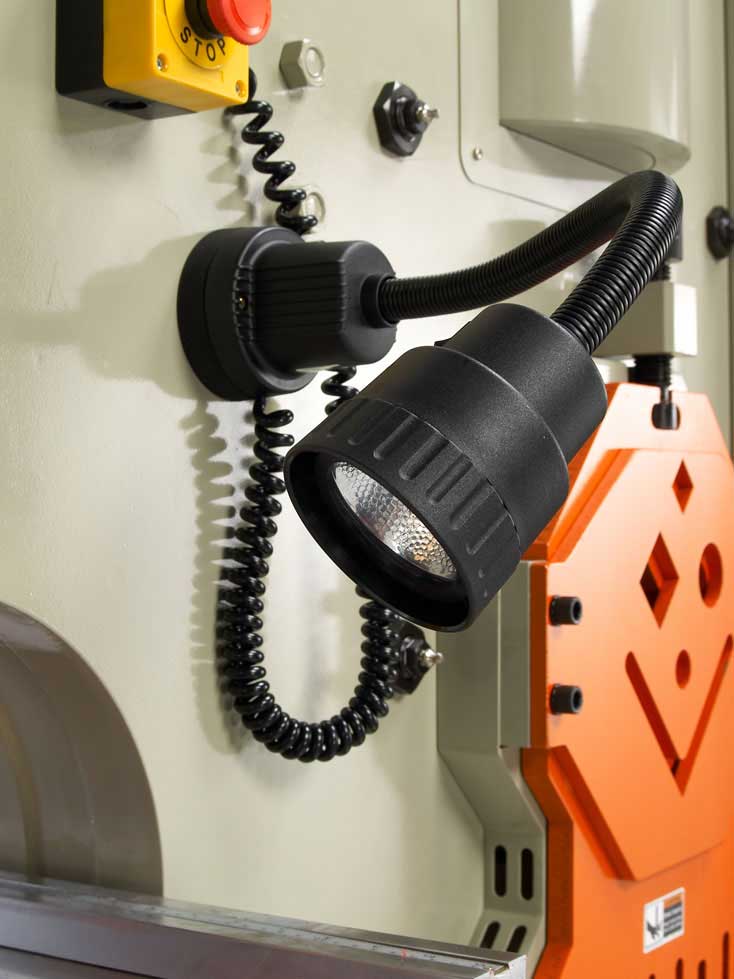

- Movable Magnetic
Work Light – Standard!
-
Adjustable stroke control – Standard!
- Long life, multiple edge blades on shearing and notching
stations – Standard!
- 7 sets of round punches and dies included – Standard!
-
T-slot punching base enables wide range of tooling options
and easy adjustment – Standard!
- Two Piece, Self Centering Quick Release
Punch Retaining System w/ Spanner Wrench – Standard!
- Easy Adjust,
Swing Away Material Stripper – Standard!
- World Class, name brand components for years of hassle free
productivity – Standard!
-

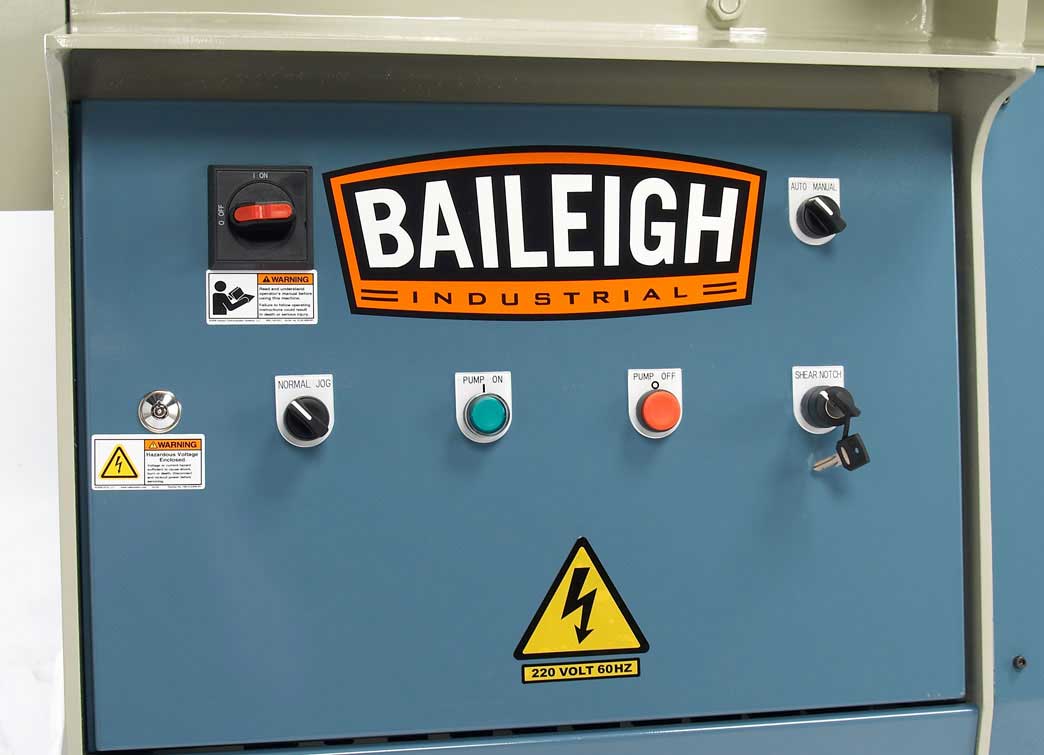

Jog mode enables accurate tooling alignment in minimal time
– Standard!
-
Shear table w / scribed angle markings and material guides –
Standard!
- Adapters to fit Cleveland Tool punch and die sets –
Standard!
- Punch capacity up to 1 ½” round – Standard!
-
Angle iron, Flat bar, Round and Square stock Shearing –
Standard!
-
Rectangular Notching – Standard!
-
Hole punch – Standard!
- Multiple tooling options available – Contact Your Baileigh
Representative for more information!
|

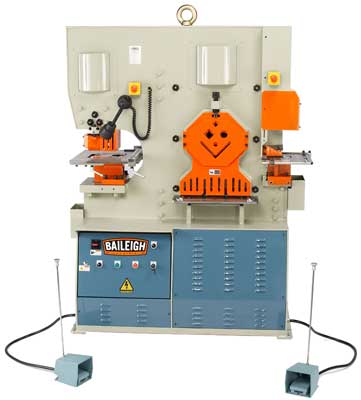

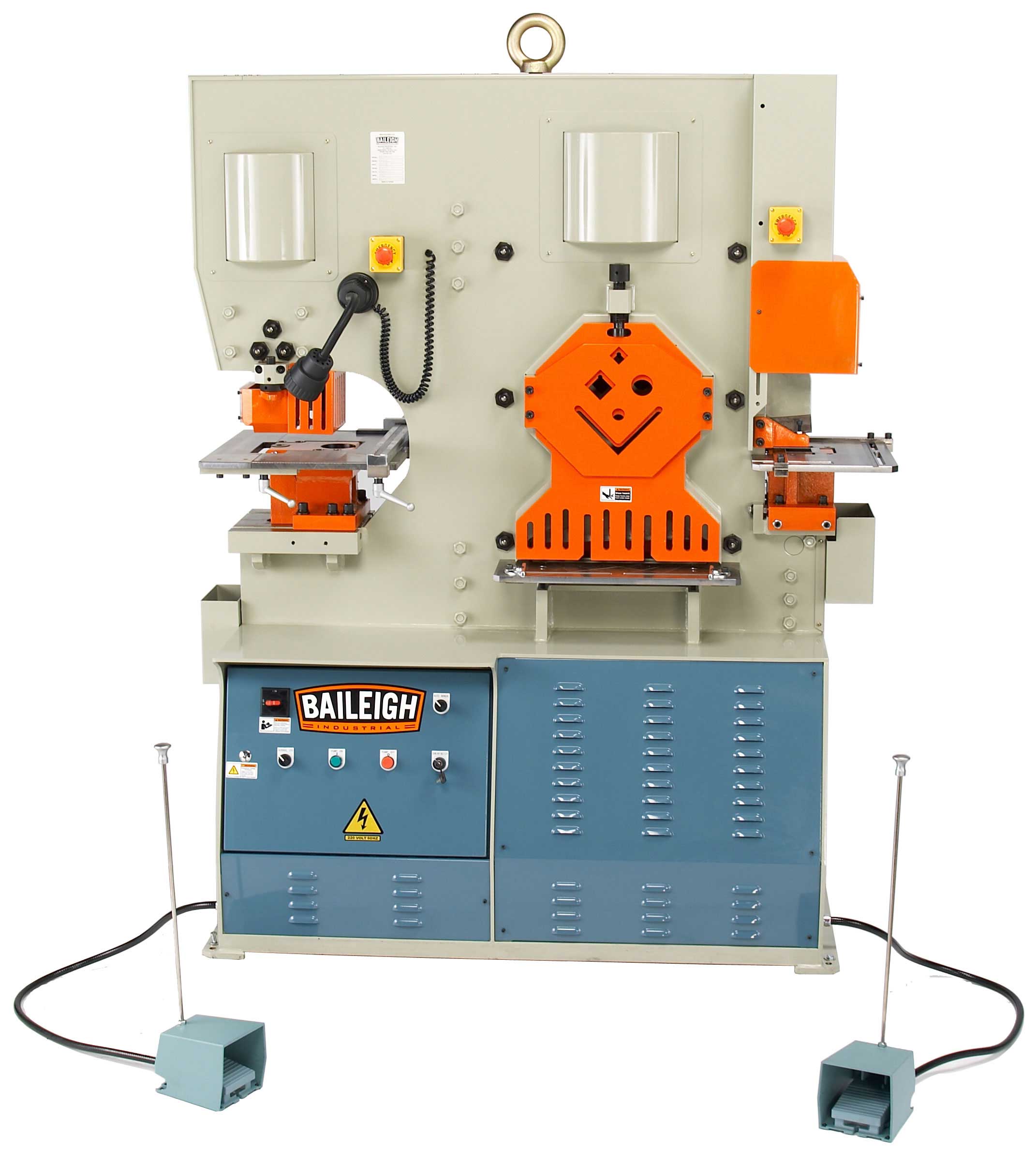

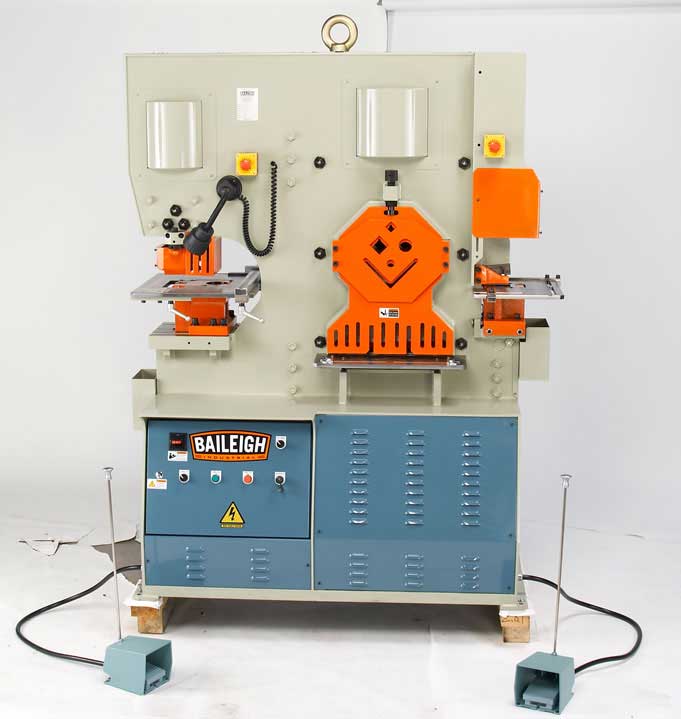

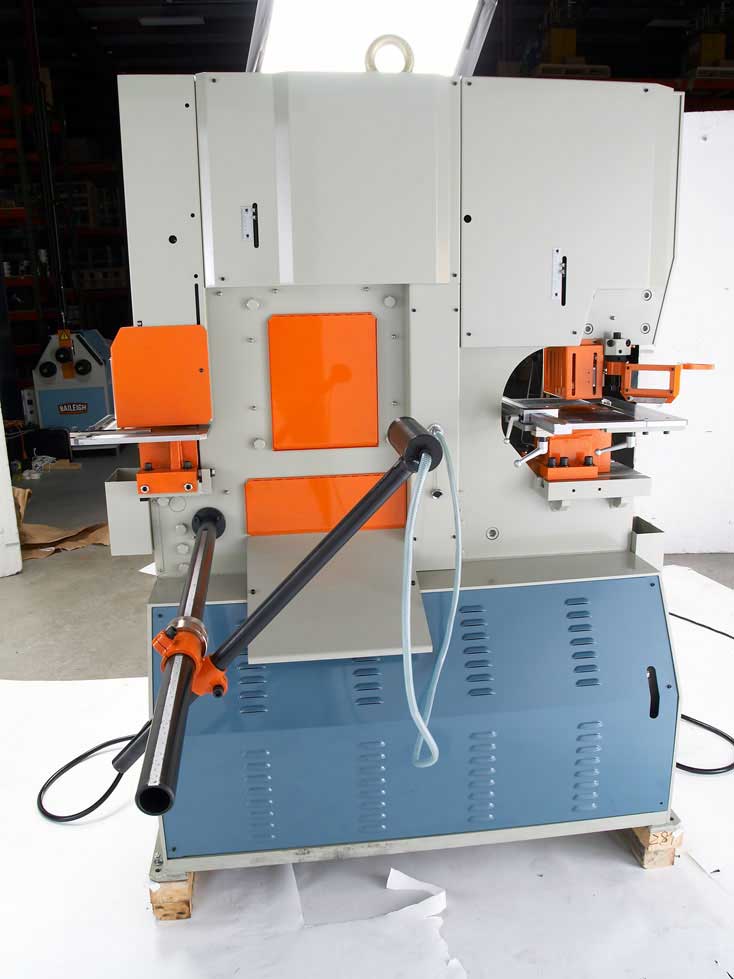

Baileigh Industrial's
SW-84 Hydraulic Ironworker is the perfect choice for any fabrication
shop looking to perform a multitude of operations. A true dual
operator machine, the SW-84 is the best choice where precision,
performance and perfection are of the utmost importance. This dual
operator design enables one operator to perform punching operations
while another can work at the notching or shearing stations - all at
full capacity! Incorporating a fully welded frame in a true vertical
movement "European" style Ironworker is the key to Baileigh
Industrial's class leading SW-84. This rigid framework leads to an
extremely quiet, smooth working Ironworker with no "snap" or "pop"
which can lead to premature machine failure and massive tooling
replacement costs.

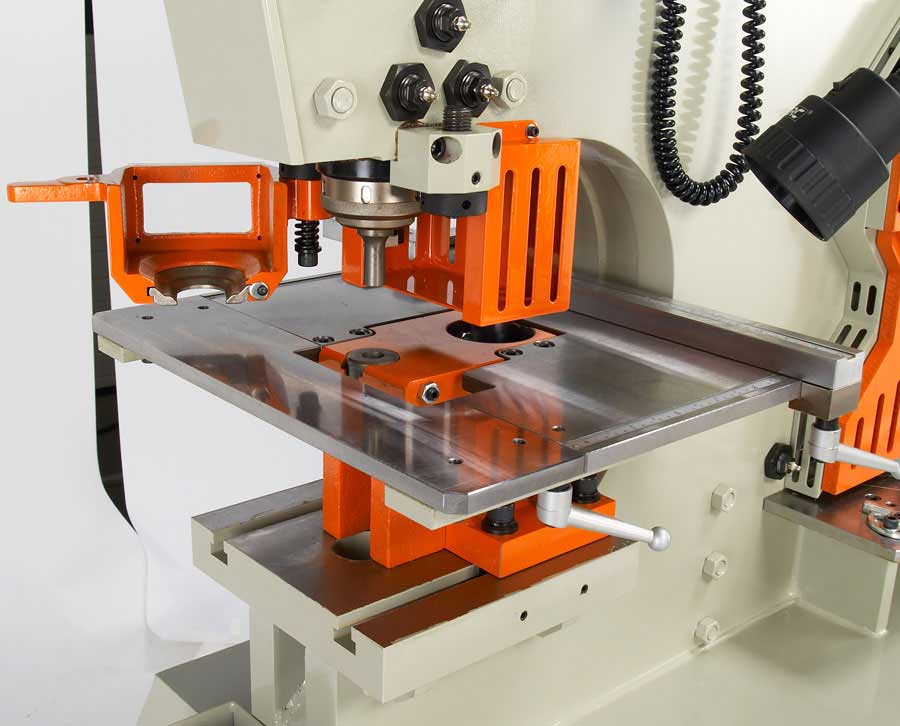

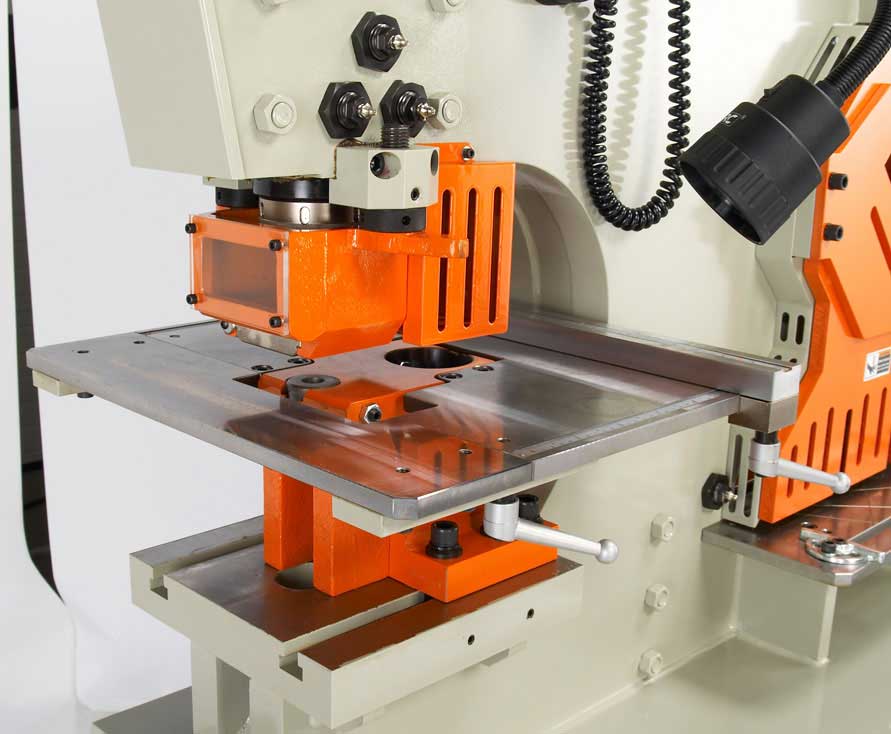

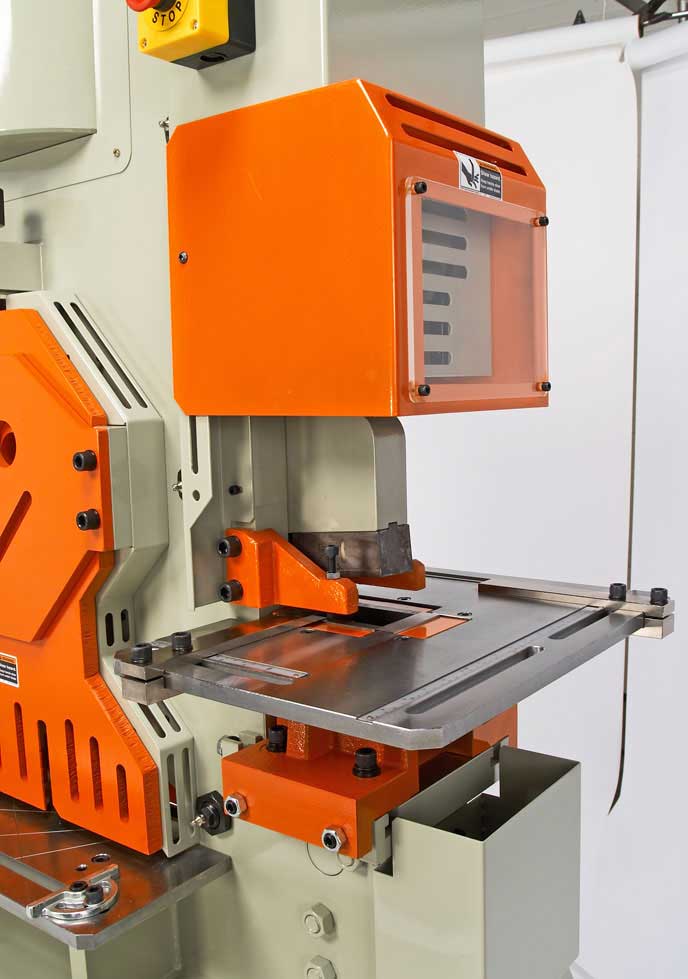

All Baileigh Industrial Hydraulic Ironworkers feature a scaled (SAE/Metric)
oversized work table at the punching station as standard equipment.
This standard table incorporates a quick release, two piece design
for ease of punching angle iron - not optional as on so many others.
An included two piece punch holder with spanner wrench and T-slot
die holder base make for fast and easy tooling change over. This
combined with adjustable material stops (Standard!) and a manual
back gage (Standard!) show why the SW-84 should be your first
choice.

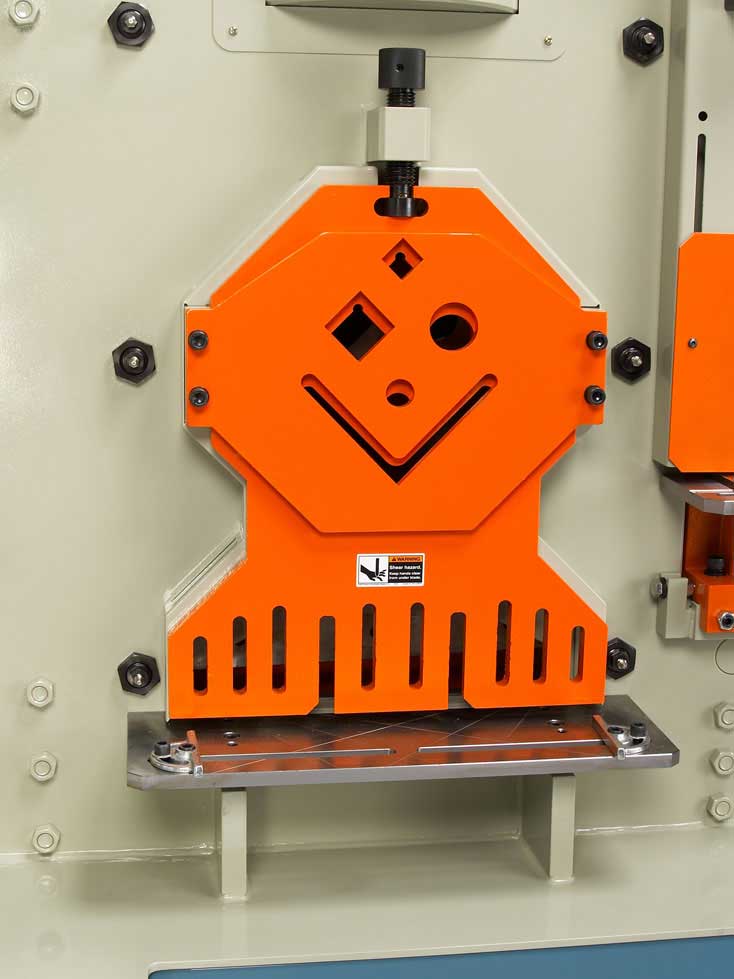

Shearing functions on round and square stock, angle iron, and flat
bar are easily accomplished on the Baileigh SW-84 at the included
shearing stations. Material hold down template with knurled
adjustment handle lends itself to fast, accurate shearing in a
variety of material sizes. The standard oversized, scribed table
(30, 45, and 60 deg.) with adjustable guide plates allow for
repeatable shearing at any angle desired. All shear functions are
done in a true vertical plane with a low approach angle leading to
buttery smooth, precise cuts with zero waste or deformity. Compare
this to the competition and you will see why Baileigh Industrial is
the industry leader.
When accurate notching is necessary, Baileigh's SW-84 leads the way
with amazingly clean notches. The Sw-84 has the ability to notch
angle iron gullet without deformity, eliminating the need for
secondary grinding or cleaning operations. An included oversize work
table with adjustable material stops along with the standard manual
back gage allow for precise control on production runs - saving you
money!
Optional tooling such as press brakes, pipe notchers, channel and
I-beam shears, and others are available. Call your friendly Baileigh
Representative for more details.
Add up all of the features included on the Baileigh Industrial SW-84
Ironworker and you will see - when it comes to precision,
performance and perfection - Baileigh Industrial stands alone. For
decades of profitability there is only one choice - Buy Baileigh!
|
|
SPECIFICATIONS |
| |
Imperial |
Metric |
|
Punching |
| Punching Pressure |
84 Tons |
75 Tons |
| Punch Capacity |
1.125" x 0.875" |
28mm x 22mm |
| Diameter x Thickness |
2" x 0.5" |
50mm x 12mm |
| Throat Depth |
12.25" |
310mm |
| Max Stroke Length |
3" |
75mm |
| Cycles / Min |
38 |
| Working Height Up to Die |
43.5" |
1,100mm |
|
Flat Shearing |
| Flat Bar Shearing |
15.75" x 0.625" |
400mm x 16mm |
| Blade Length |
16.125" |
410mm |
| Angle Flange Trim |
4" |
100mm |
| Working Height |
33.5" |
850mm |
|
Angle Shearing |
| Shearing Capacity |
121 Tons |
110 Tons |
| Shearing Stroke Length |
2" |
50mm |
| At 90° Shearing |
5.125" x 5.125" x 0.5" |
130mm x 130mm x 12mm |
| Working Height |
44" |
1,106mm |
|
Bar Shearing |
| Round Bar Shear |
1.75" |
45mm |
| Square Bar Shear |
1.75" x 1.75" |
45mm x 45mm |
| Working Height |
48" |
1,225mm |
|
Notching |
| Rectangular Notcher (WxDxT) |
2" x 3.5" x 0.5" |
50.8mm x 90mm x 12mm |
| Working Height |
44" |
1,100mm |
|
Special Tooling |
| Large V-notcher (WxDxT) |
5.75" x 5.75" x 0.375" |
145mm x 145mm x 10mm |
| Vee-Notcher (Side x Side x T) |
3.5" x 3.5" x 0.5" |
90mm x 90mm x 12mm |
| Single Vee Press Brake (LxT) |
9.875" x 0.625" |
250mm x 15mm |
| Multi-Vee Press Brake (LxT) |
19.625" x 0.187" |
500mm x 15mm |
| Angle Bending* |
4" x 0.312" |
102mm x 8mm |
| Pipe notching* |
2.5" |
63.5mm |
|
Other |
| Electric Power (HP) |
7.5 Hp |
| Net Weight (Apr.) |
5,060 lbs |
2,300 kg |
*Optional Tooling
Based on material tensile strength of 65,000 psi
Design/Specifications subject to change without notice |
|
|
