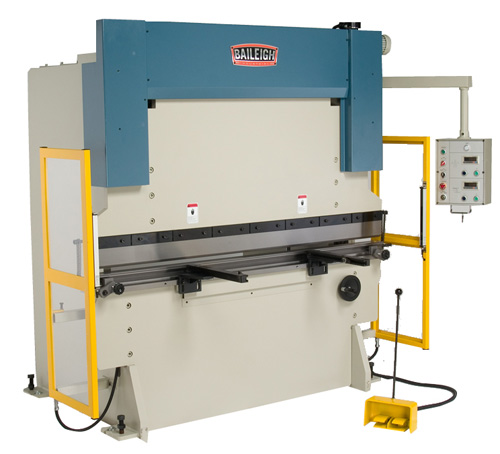

Baileigh BP-6778 NC Hydraulic Press Brake

SPECIFICATIONS
Maximum Pressure 67 Tons
Bending Capacity (max. length @ max. thickness) 78.75” / .157”
Distance Between Housings 61”
Distance From Table to Ram 11.81”
Table Width 6.29”
Throat Depth (to housing) 7.87”
Stroke Distance 5.9"
Approach Speed 3.14” / sec.
Bending Speed 0.275” / sec.
Return Speed 2.36” / sec.
Power Back Gauge Length 23.62”
Main Motor 7.5 hp
Back Gauge Motor 1/2 hp
Voltage 220 volt / 3 phase
Oil Capacity 35 gal
Shipping Dimensions (L/W/H) 90.55” / 61.02” / 94.48”
Shipping Weight 7700 lbs


BAIBP-6778
$44,995.00 $44,095.10
"220 Volt Three Phase 67 Ton Hydraulic Press Brake. 9 Gauge Mild Steel Bending Capacity at 78"". Distance Between Housings is 61"". Includes Adjustable Stroke, Power Back Gauge with Digital Readout, One Piece Top Blade, Multi-Vee Bottom Blade, 6 Sensor Sa ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"
