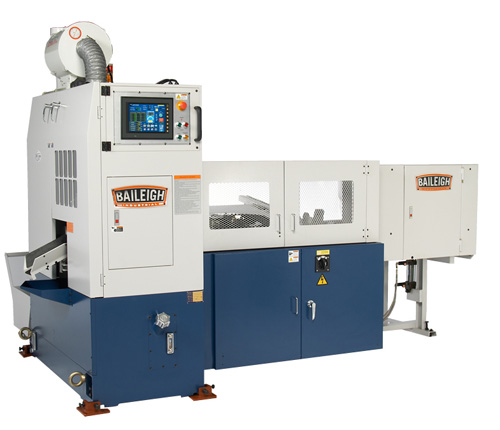

220 Volt Three Phase Heavy Duty Automatic Cold Saw. 10"
Blade Diameter. 2.55" Round Capacity @ 90 Degrees. Variable
Speed (17 to 200 RPM). Features Automatic Magazine Feeder,
Hydraulic Vice Clamp, Hydraulic Blade Descent and Raise,
Automatic Blade Shut Off, Vice Release, and Automatic
Material Out feed. Maximum Material Length 20'. Feeding
Length .2" to 23" in Continuous Cycles. Includes Large Touch
Screen, Self Centering Vice, Work Light, Chip Conveyor and
Coolant System.
|
Specifications |
|
MODEL |
CS-70NC |
|
Maximum Blade Diameter (inches)
|
11" (285mm) |
|
Arbor Size |
32 mm |
| Blade Speed |
Inverter
Driven---17 RPM to 200 RPM |
|
Operation |
Automatic with Magazine Feeder |
| Head Style |
Column |
|
Maximum Vise Opening |
3.5" |
| Vise Style |
Single Action
with Hydraulic Feed |
|
Head Miter |
None |
| Slotting Capable |
No |
|
Coolant System |
Yes |
| Motor |
10 HP |
|
Electrical Requirements |
220 Volt Three Phase 60 Hz |
| Shipping Dimensions
(L/W/H) |
195" / 44" / 64"
& 195" / 44" / 64" |
|
Shipping Weight |
5800 lbs |
|
