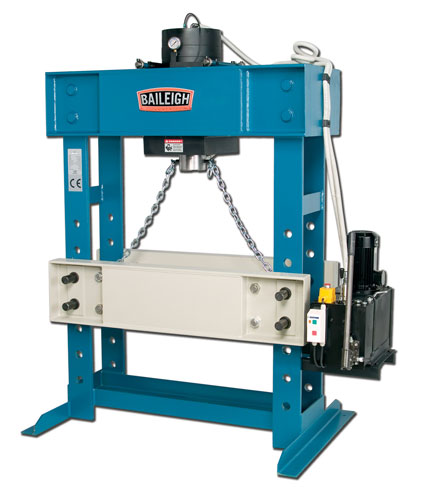

Baileigh HSP-176M Hydraulic Shop Press H Frame

Baileigh hydraulic shop press line consists of several models ranging from 16 tons up to 176 tons of pure power.  Each H frame hydraulic press comes standard with heavy-duty industrial grade hydraulics.  We offer a manual hydraulic press as well as powered units.  All of our machines are made up of electro welded steel plate with solid cross members to easily handle the guaranteed tonnage.

These Baileigh hydraulic workshop presses are extremely robust and built to last. The casing is very stable. It is made of quality steel sections welded very carefully. The hydraulic system is extremely precise, whetheroperated electrically or manually. The height of the heavy work table can be adjusted easily and effortlessly using the hydraulic cylinder. These Baileigh workshop presses are excellent for general assembly and straightening work, but also for testing work pieces or for pressing bearings in and out. That's why Baileigh workshop presses are a must for engineering workshops, repair firms and technical training institutions.

Features

  • Pressure manometer
  • Automatic piston return
  • User manuals
  • Delivery straight from stock
  • Motorized/hand operated
  • Hydraulic unit with 2 speeds and pressure regulator
  • Chrome piston with screw head
  • Working width: 43.3"
  • Delivery in accordance with CE standard
  • Movable cylinder

Optional Accessories

  • Set of V blocks
Specifications
Max Capacity 176 ton
Max Pressure 4104 psi
Working Speed .090""/sec
Lowering Speed .350"/sec
Return Speed .5"/sec
Working Width 43.3”
Moveable Cylinder Yes
Cylinder Stroke 15.75”
Cylinder Diameter 12.75”
Piston Rod Diameter 5.51”
Piston Head Diameter 5.90”
System Oil Capacity 4.5 gal
Oil Tank Capacity 7.92 gal
Pump Speed (2) 1.92 / 7.50 gal/min.
RPM 3000
Motor 4 hp
Power Requirement 220 v / 3 phase
Shipping Dimensions (L/W/H) 76” / 44” / 88”
Shipping Weight
3465 lbs


BAIHSP-176M
$14,995.00 $14,395.20
"220 Volt Three Phase 176 Ton Hydraulic Press. Can Be Operated with Motor or with Manually Operated Pump. Two Speed. 43"" Working Width. Movable Cylinder. 15.7"" Cylinder Stroke. 5.9"" Diameter Piston Head. Includes Automatic Piston Return, Pressure Gauge, and Chrome Piston. Optional V-Blocks Available >> Call 800-458-3687 For Freight Rate (PC011310)"
