Barreto Steerable Heavy Duty Trencher

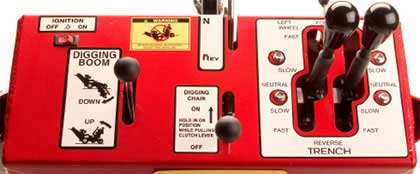

Individual Wheel Controls offer superb steering control for both maneuvering and trenching control.

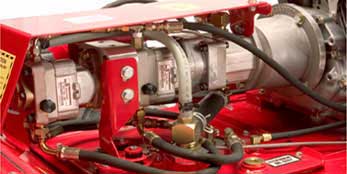

Twin Hydrostat Pumps drive the wheels, giving precise control of each wheel for easy maneuverability and control with the trencher.

SPECIFICATIONS
Trench Depth : 24", 30" or 36"
Trench Width : 4"-6"
Handlebar Width : 29"
Boom Travel - UP : 51º
Boom Travel - Down : 60º
Boom to Handlebar : 90"
Transport Width : 33.4"
Transport Height : 44"
Wheel Base : 36.4"
Weight : 900 lbs.
Head Shaft Height Digging Chain : 8.4"
Trench Center to Outside Left : 16.9"
Trench Center to Outside Right : 16.5"

OPERTATION
Engine Option
Model 1324ST : Honda GX390 13HP
Model 1624ST : Briggs & Stratton, Vanguard V-Twin 16HP

Ground Speed
Forward : 220fpm
Reverse : 90fpm
Digging Chain Speed : 260fpm
DESCRIPTION : Models: 1324ST, 1624ST
The Only One of Its Kind

No other trencher on the market offers the steering capabilities of the new Barreto steerable trencher! Using the all-hydraulic power that makes Barreto the industry leader, the steerable trencher offers superb maneuverability and ease of operation.

Industry Leading Design

This trencher features a direct hydraulic drive to the head shaft, eliminating the need for belts, chains and gears. This significantly decreases maintenance costs and significantly increases return on investment. The outboard support bearing is standard, protecting the auger shaft from bending due to impact.


THE BARRETO ADVANTAGE

Our innovative steering system offers a 2-pump, 2-motor wheel drive. One hand easily operates both wheel controls for traveling to the job site. Zero-radius turning capability makes trenching sprinkler grids a breeze. Precise wheel control helps eliminate drifting when trenching on uneven terrain and hillsides. Long, arching curves are now possible with virtually no operator effort. With a faster forward drive speed, you save time getting around the job site.



BAR1324ST
$10,900.00
13 HP Honda Steerable Trencher -->>>Call 800-458-3687 For Freight Pricing


BAR1624ST
$11,148.00
16 HP Briggs Steerable Trencher -->>>Call 800-458-3687 For Freight Pricing
