Productivity |
|
# passes |
rolling speed |
area coverage |
Productivity in cu
yd/hr by lift thickness, 100% efficiency |
| |
(mph) |
sq yd / hr |
4 inch |
6 inch |
8 inch |
12 inch |
| 2 |
0.7 |
573 |
64 |
96 |
128 |
191 |
| 3 |
0.7 |
382 |
43 |
64 |
85 |
128 |
| 4 |
0.7 |
287 |
32 |
48 |
64 |
96 |
| 5 |
0.7 |
229 |
26 |
38 |
51 |
77 |
|
|
Specifications |
|
Model |

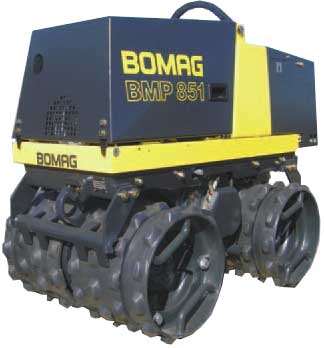

BMP851 |
|
Weights |
|
Basic weight - lbs (kg) |
3373 (1530) |
|
Operating Weight CECE - lbs (kg) |
3413 (1548) |
|
Average axle load CECE - lbs (kg) |
1706 (774) |
|
Dimensions |
|
Working width - in (mm) |
24.0/33.5 (610/850) |
|
Driving
characteristics (depending on site conditions) |
|
Speed (1) , forward - mph (kmph) |
0-0.7 (0-1.2) |
|
Speed (1) , reverse - mph (kmph) |
0-0.7 (0-1.2) |
|
Speed (2) , forward - mph (kmph) |
0-1.7 (0-2.7) |
|
Speed (2) , reverse - mph (kmph) |
0-1.7 (0-2.7) |
|
Max. gradeability without/with vibration - % |
55/45 |
|
Drive |
|
Engine manufacturer |
Hatz |
|
Type |
2G 40 |
|
Cooling |
air |
|
Number of cylinders |
2 |
|
Performance ISO 9249 - hp (kW) |
18.5 (13.8) |
|
Speed |
2,800 |
|
Fuel |
diesel |
|
Drum Driven |
4 |
|
Drive System |
hydrostatic |
|
Brakes |
|
Service Brake |
hydrostatic |
|
Parking Brake |
SAHR |
|
Vibratory System |
|
Vibrating drum |
central vibrator |
|
Drive system |
hydrostatic |
|
Frequency - vpm (Hz) |
1920 (32) |
|
Amplitude - in (mm) |
0.083 (2.1) |
|
Centrifugal force (each drum) - lbs (kN) |
18000 (80) |
|
Capacities |
|
Fuel - gal (l) |
5 (19) |
|
Water - gal (l) |
10 (38) |
|
Engine oil - gal (l) |
0.7 (2.5) |
|
Technical modifications reserved. Machine
may be shown with options. |
|
