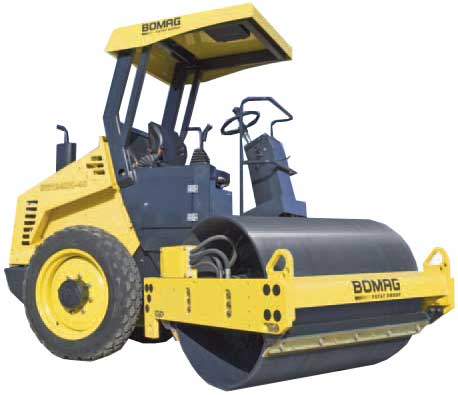

Bomag BW124-40 Series at

Model	Compaction Output (cu. yd/h) at recommended soil layer/lift thickness. *
	Gravel, Sand	Mixed Soils	Silt, Clay
BW124DH-40	137 - 275	98 - 196	52 - 118
BW124PDH-40	137 - 275	98 - 196	65 - 131
Model	Compaction Layer Thickness (in).*
	Gravel, Sand	Mixed Soils	Silt, Clay
BW124DH-40	14	10	6
BW124PDH-40	14	10	8
* Compaction output influenced by soil/material type and moisture content.

Standard Equipment

Single Amplitude Drum
Hydrostatic travel & vibration drives
Hydrostatic steering
Rear axle with Spring-Applied,
Hydraulically Released (SAHR) brakes
No-Spin differential
Dual Flexible Drum Scrapers (DH)
Dual Drum Scrapers (PDH)
Articulated centerjoint lock
Lockable control panel
Hour meter
Warning horn
Fuel level indicator
Audible and/or visual warning indicators:
Engine oil pressure
Engine temperature
Air filter vacuum
Brake control
Charge control
Adjustable operator’s seat
Emergency STOP
ROPS / FOPS with seat belts
Back-up alarm

Optional Equipment

Dual Amplitude
ROPS/FOPS with rear window
Hood sound insulation
Working Lights (front & rear)
Leveling blade
Leveling blade with angle mechanism
Rotary Beacon

Specifications
Model	BW124DH-40	BW124PDH-40	BW124DH-40 w/blade
Weights
Operating weight with ROPS/FOPS - lbs (kg)	7010 (3180)	7120 (3230)	8050 (3650)
Axle load, drum - lbs (kg)	3530 (1600)	3625 (1645)	4235 (1920)
Axle load, wheels - lbs (kg)	3480 (1580)	3495 (1585)	3815 (1730)
Static linear load (drum) - lb/in (kg/cm)	74.8 (13.3)	-
Driving characteristics (depending on site conditions)
Speed (1) ,- mph (kmph)	0-5.6 (0-9)
Max. gradeability - %	55
Drive
Engine manufacturer	Deutz Diesel
Type	D2011 L03i
Cooling	air/oil
Number of cylinders	3
Performance ISO 9249 - hp (kW)	44 (33)
Speed	2500
Performance SAEJ 1995 - hp (kW)	50 (37)
Speed	2800
Electric equipment	12
Steering
Steering system	oscil. artic.
Steering method	hydrostatic
Steering / Oscillating angle ± - degrees	35/12
Track radius, inner - in (mm)	88.2 (2240)
Brakes
Service Brake	hydrostatic
Parking Brake	SAHR
Vibratory System
Frequency - vpm (Hz)	2460 (41)
Amplitude - in (mm)	0.067 (1.7)
Centrifugal force (each drum) - lbs (kN)	18540 (82.5)
Capacities
Fuel - gal (l)	15.9 (60)
Tech data for Dual Amplitude Option
Weights
Operating weight with ROPS/FOPS - lbs (kg)	7075 (3210)	7185 (3260)	8115 (3880)
Axle load, drum - lbs (kg)	3580 (1625)	3690 (1675)	4300 (1950)
Axle load, wheels - lbs (kg)	3495 (1585)	3495 (1585)	3825 (1730)
Static linear load (drum) - lb/in (kg/cm)	75.8 (13.5)	-
Vibratory System
Amplitude - in (mm)	0.067/0.033 (1.7/0.85)
Centrifugal force (each drum) - lbs (kN)	19125/9675 (85/43)
Technical modifications reserved. Machine may be shown with options.
