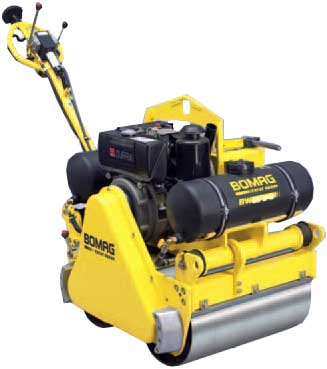

Productivity |
|
Model |
Material |
Productivity in cu
yd/hr by lift thickness, 100% efficiency |
| |
2 inch |
4 inch |
6 inch |
8 inch |
10 inch |
| BW65S-2 |
Gravel,
Sand |
15.0 |
29.9 |
44.9 |
59.8 |
|
| |
Mixed Soils |
15.0 |
29.9 |
44.9 |
59.8 |
|
| |
Silt, Clay |
14.6 |
29.2 |
|
|
|
| |
Asphalt |
13.4 |
22.8 |
35.1 |
|
|
| BW75S-2 |
Gravel,
Sand |
14.6 |
29.2 |
43.9 |
58.5 |
73.1 |
| |
Mixed Soils |
14.6 |
29.2 |
43.9 |
58.5 |
73.1 |
| |
Silt, Clay |
15.5 |
31.0 |
46.5 |
|
|
| |
Asphalt |
15.2 |
26.2 |
40.1 |
|
|
|
|
Specifications |
|
Model |
BW65S-2 |
BW75S-2 |
|
Weights |
|
Basic weight - lbs (kg) |
1323 (600) |
2006 (910) |
|
Operating Weight CECE - lbs (kg) |
1380 (626) |
2079 (943) |
|
Average static linear load
CECE - pli (kg/cm) |
690 (313) |
1041 (472) |
|
Average axle load CECE - lbs (kg) |
27.0 (4.8) |
35.3 (6.3) |
|
Dimensions |
|
Working width - in (mm) |
25.6 (650) |
29.5 (750) |
|
Driving
characteristics (depending on site conditions) |
|
Speed (1) , forward - mph (kmph) |
0-1.2 (0-1.9) |
0-1.0 (0-1.6) |
|
Speed (1) , reverse - mph (kmph) |
0-1.2 (0-1.9) |
0-1.0 (0-1.6) |
|
Speed (2) , forward - mph (kmph) |
0-1.6 (0-2.5) |
0-1.6 (0-2.5) |
|
Speed (2) , reverse - mph (kmph) |
0-1.6 (0-2.5) |
0-1.6 (0-2.5) |
|
Max. gradeability without/with vibration - % |
40/35 |
40/35 |
|
Drive |
|
Engine manufacturer |
Hatz |
Hatz |
|
Type |
1D41S |
1D50S |
|
Cooling |
air |
air |
|
Number of cylinders |
1 |
1 |
|
Performance ISO 9249 - hp (kW) |
6.0 (4.4) |
9.2 (6.8) |
|
Speed |
2300 |
2700 |
|
Performance SAE - hp (kW) |
5.9 (4.4) |
9.1 (6.8) |
|
Speed - rpm |
2300 |
2700 |
|
Fuel |
diesel |
diesel |
|
Drum Driven |
f + r |
f + r |
|
Drive System |
mechanical |
mechanical |
|
Brakes |
|
Service Brake |
mechanical |
mechanical |
|
Parking Brake |
mechanical |
mechanical |
|
Vibratory System |
|
Vibrating drum |
front + rear |
front + rear |
|
Drive system |
mechanical |
mechanical |
|
Frequency - vpm (Hz) |
3480 (58) |
3300 (55) |
|
Amplitude - in (mm) |
0.017 (0.42) |
0.019 (0.49) |
|
Centrifugal force (each drum) - lbs (kN) |
5400 (24) |
9000 (40) |
|
Sprinkler System |
|
Type of sprinkling |
gravity |
gravity |
|
Capacities |
|
Fuel - gal (l) |
1.3 (5) |
1.8 (7) |
|
Water - gal (l) |
13.7 (52) |
15.9 (60) |
|
Technical modifications reserved. Machine
may be shown with options. |
|
