Specifications |
|
Model |

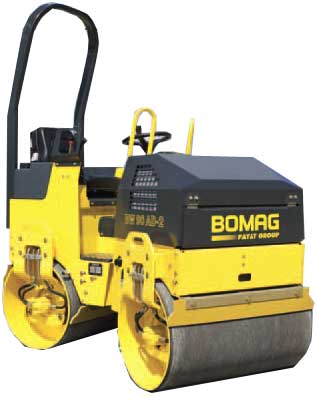

BW90AD-2 |
|
Weights |
|
Basic weight with ROPS - lbs (kg) |
3053 (1385) |
|
Operating Weight - lbs (kg) |
3351 (1520) |
|
Average axle load - lbs (kg) |
1675 (760) |
|
Average static linear load CECE - pli
(kg/cm) |
47.3 (8.4) |
|
Dimensions |
|
Working width - in (mm) |
35.4 (900) |
|
Track Radius, inner - in (mm) |
77.6 (1970) |
|
Length with ROPS - in (mm) |
76.1 (1934 |
|
Driving
characteristics (depending on site conditions) |
|
Speed (with vibration)- mph (kmph) |
0-2.8 (0-4.5) |
|
Speed (for transport) - mph (kmph) |
0-5 (0-8) |
|
Max. gradeability without/with vibration - % |
40/30 |
|
Drive |
|
Engine manufacturer |
Kubota |
|
Type |
D 722 E3B |
|
Cooling |
water |
|
Number of cylinders |
3 |
|
Performance ISO 9249 - hp (kW) |
16.9 (12.4) |
|
Speed |
3000 |
|
Performance SAE J1349 - hp (kW) |
16.6 (12.4) |
|
Speed |
3000 |
|
Electric Equipment |
12 |
|
Drum Driven |
f + r |
|
Drive System |
hydrostatic |
|
Brakes |
|
Service Brake |
hydrostatic |
|
Parking Brake |
hydromechanical |
|
Steering |
|
Steering system |
oscillating, articulating |
|
Steering method |
hydrostatic |
|
Steering angle ± - degrees |
31 |
|
Oscillating angle ± - degrees |
6 |
|
Vibratory System |
|
Vibrating drum |
f+r |
|
Drive system |
hydrostatic |
|
Frequency - vpm (Hz) |
3600 (60) |
|
Amplitude - in (mm) |
0.020 (0.5) |
|
Centrifugal force (each drum) - lbs (kN) |
3600 (16) |
|
Water Sprayer
System |
|
Type of water spray system |
pressurized |
|
Capacities |
|
Fuel - gal (l) |
6.1 (23) |
|
Water - gal (l) |
26.4 (100) |
|
Technical modifications reserved. Machine
may be shown with options. |
