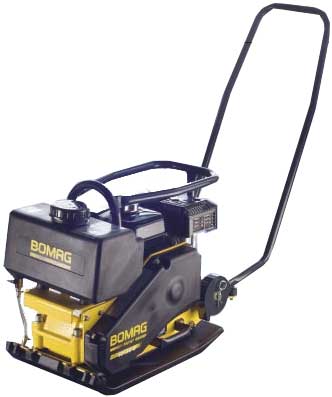

The Bomag range of single direction vibratory plates
are designed to meet the needs of today’s contractors. Suitable for
use on granular soils and bituminous materials as well as paving
blocks, the BP10/36-2 and BP18/45-2 plates feature a shock-absorbing
handle to minimize vibration feedback and maximize productivity. The
long, thick base plates with extended radius provide enhanced
stability and better compaction along walls or curbs. These features
combined with the compact design, excellent maneuverability,
reliability and ease of operation make these plate compactors the
ideal choices for a variety of confined space and light duty
projects.
 |
Standard Equipment
-
Honda engine with oil alert
-
Removable, vibration isolated
-
steering handle
-
Wear resistant base plate with
-
reinforced sides
-
Engine protection frame
-
Balanced lifting point
-
Centrifugal clutch
-
Fully enclosed V-belt
-
Lifetime lubricated vibration
-
bearings
-
Vibration isolated engine
-
Self-cleaning base plate
Optional Equipment
-
Transport wheels
-
Vulcolan mat
-
Water spray system
|
|
Compaction Output (cu. yd/h) at recommended soil layer/lift
thickness. * |
|
Model |
Gravel, Sand |
Mixed Soils |
Silt, Clay |
|
BP10/36-2 |
14.4 - 20.9 |
14.4 - 20.9 |
- |
|
BP18/45-2 |
22.2 - 30.1 |
18.3 - 26.2 |
- |
|
Compaction Output (ton/h) at different asphalt layer/lift
thickness. * |
|
Model |
1in |
2in |
3in |
|
BP10/36-2 |
5.5 |
9.9 |
14.3 |
|
BP18/45-2 |
6.6 |
11.6 |
16.5 |
|
* Compaction output influenced by
soil/material type and moisture content. |
|
|
Specifications |
|
Model |
BP10/36-2 |
BP18/45-2 |
|
Weights |
|
Basic weight - lbs (kg) |
145 (66) |
195 (89) |
|
Operating weight - lbs (kg) |
150 (68) |
200 (91) |
|
Surface load - lb/in² (kg/m²) |
0.81 (572) |
0.89 (624) |
|
Driving
characteristics (depending on site conditions) |
|
Working speed max - ft/min (m/min) |
82.0 (25) |
82.0 (25) |
|
Max. gradeability - % |
30 |
30 |
|
Drive |
|
Engine manufacturer |
Honda |
Honda |
|
Type |
GX 120 |
GX 160 |
|
Cooling |
air |
air |
|
Number of cylinders |
1 |
1 |
|
Performance ISO 9249 - hp (kW) |
4.0 (3) |
5.5 (4.1) |
|
Speed |
3600 |
3000 |
|
Performance SAE - hp (kW) |
4.0 (3) |
5.5 (4.1) |
|
Speed - rpm |
3600 |
3600 |
|
Drive system |
mechanical |
mechanical |
|
Fuel |
gasoline |
gasoline |
|
Vibratory System |
|
Frequency - bpm (Hz) |
5400 (90) |
5400 (90) |
|
Compaction depth max - in (cm) |
2250 (10) |
4050 (18) |
|
Capacities |
|
Fuel - gal (l) |
0.66 (2.5) |
0.98 (3.7) |
|
Water - gal (l) |
2.6 (10) |
2.6 (10) |
|
Technical modifications reserved. Machine
may be shown with options. |
|
