CST 59-LMPL-20 Pipe Laser at

Strength! Accuracy! Reliability! Designed for the most demanding jobsite conditions.

To be more productive on today’s construction sites, you need equipment that stands up to the toughest jobsite conditions. This is even more critical in the underground drainage industry where underground elements can be tough on your equipment. With this in mind, CST/Berger has designed the LMPL-20 Pipe Laser.

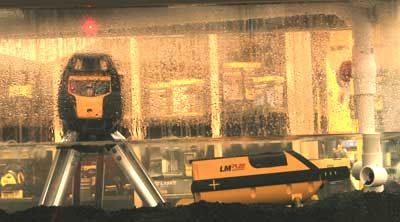

The LMPL-20 is constructed from cast aluminum and is nitrogen purged, then sealed for total waterproofing. All internal components of the pipe laser are protected with the rugged aluminum housing. This means that the LMPL-20 can handle the toughest and harshest jobsite conditions.

Large, Illuminated LCD Display -
Makes information easy to see and use

Easy Grade Input -
Enter by individual digit for quick setup changes

Two-Way RF Remote Control -
With real-time changes, make changes without being in the hole

Illuminated LED Pivot Point -
Makes setup easy and fast, for plum bob setups

Lock Grade and Line Feature -
To prevent changes after setup

Battery Indicator -
Monitors battery level on Ni-Mh and Alkaline battery packs

Sleep Mode -
Turns off lase beam, display, and auto-leveling. Pipelaser wakes up with any control input from main keypad or remote

Multi-Function Menus -
For quick access to" unit settings (precent or permill), laser power level, calabration, and entry of owner information. Owner information and calibration is password protected.

The Wireless TWO WAY RF Remote Control gives the user real-time data between the Remote and Pipe-Laser. Control all functions of the Pipe Laser from as far away as 800ft. Best of all…See what the Pipe Laser is displaying….An Industry First for Pipe-Lasers.

59-LMPL-20 - Includes: RF Remote Control, Target Set, Case, NiMH Battery, Alkaline Battery Pack, Battery Charger, 12V Power Cord, Leg Sets, Instruction Manual.

TECHNICAL SPECIFICATIONS
Laser Diode	635-650m,
Cross Axis Leveling	Yes
Auto Line Centering	Yes
Auto Grade Zeroing	Yes
LED Plumb Reference	Yes
Operating Range	800 Ft
Grade Range	-15% to 40%
Line Range	+/-15%
Horizontal Accuracy	=/-10 Arc Seconds
Power	Ni-Mh or Alkaline (Included)
Warranty	2 Years
100% Waterproof - Nitrogen Sealed and Purged, minimum pipe size 8"

Cat#:	RF Remote	Target Set	Battery Charger	Alkaline Battery Pack	Ni-MH Battery Pack	Leg Set (8-10-12")	Carrying Case
Packages Available - Also Includes
59-LMPL20 (Standard Package)
