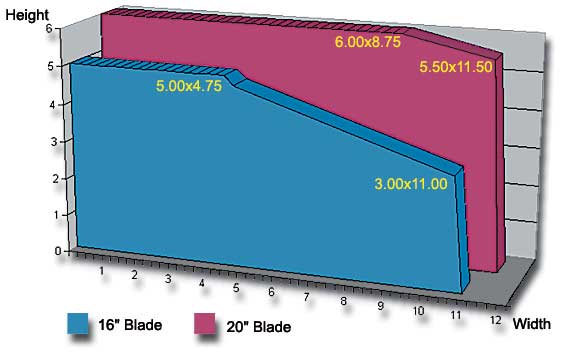

Blade Capacity
|
16” OD (406mm); saw blades not included.
|
| Spindle & Pivot |
Spindle mounted on preloaded and sealed bearings; with V-belt drive completely enclosed; pivot uses Timken bearings lubricated for life. |
|
Arbor
|
1” (25mm) with 5” (127mm) saw collars.
|
|
Motors & Starters
|
7-1/2 H.P. 3 Phase 230/460 Volt Totally Enclosed Fan Cooled Motor with Magnetic Starter standard; 10 H.P. & 15 H.P. motors available as optional extra.
|
| Table Base |
Precision machined cast iron base with milled keyways to guide fences; disc set flush with base. |
|
Floor Stand
|
Heavy gage steel sheet and angle.
|
|
Air Pressure & Consumption
|
3 CFM at 80 PSI (.09 cubic meters/minute at 5.6 kg/cm2) based on 10 strokes per minute; air filter/regulator/lubricator with auto drain included.
|
|
Size & Weight
|
48” (122cm) Wide x 40” (102cm)
Front to Back x 70” (178cm) High;
Weight is 850 lbs. (386kg).
|
| Production Rate |
Up to 10 strokes per minute; actual production rates will vary with the type and width of the material to be cut. |
| Actuation |
Hand operated standard; optional Power Downfeeds of Sawheads actuated by Two-Hand, Anti-Tie Down Maintained Contact Safety Control. |
| Dust Outlet |
Two 4” (102mm) outlets provided; 1200 CFM required. |
| Optional Extras Include |
Power Downfeeds of
Sawheads, Clamps, Measuring Systems and
Table Supports. |
