Blade Capacity
|
12 OD (305mm); saw blades not included
|
| Spindle & Pivot |
Precision ball bearing spindle and pivot shaft are sealed and preloaded for guaranteed accuracy; .001alignment of spindle and pivot shaft. |
|
Arbor
|
1 (25mm) with 2-1/2 (64mm) saw collars; 3700 RPM of spindle.
|
| Iron Castings |
Tables are precision machined and ground iron castings with milled keyways in tables to guide fences. |
|
Motors & Voltages
|
3 H.P. 3 Phase 230/460 Volt Totally Enclosed Fan Cooled Motors, 60 Hz, 3450 PRM, with starters and voltage protection
|
| Table |

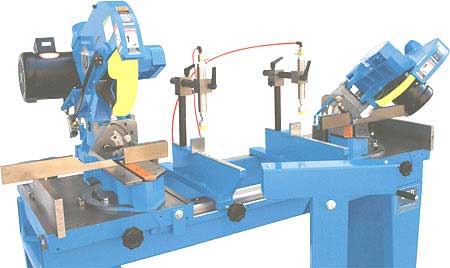

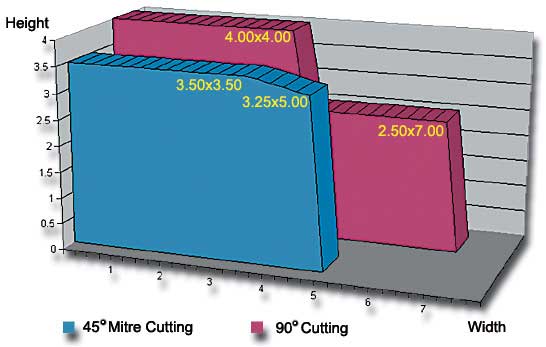

Saw heads swivel from 90° to 45° towards each other with degree markings and pointer; stops are at 90° and 45°; angular adjustment of saw head away from each other available as option; other angles possible; phenolic chip breaker included. |
|
Floor Stand
|
Heavy gage steel; eight foot centers with traveling right hand carriage on rack and pinion; length measuring scale; optional length centers available to 40 feet (12M); Digital Length Measurement available as optional accessory.
|
|
Blade Guard
|
Completely encloses blade in rest position. Lower rotating blade guard pivots up into main stationary blade guard as saw heads pivot down to cut.
|
|
Fences
|
On each side of blade are keyed to base and are easily adjustable front to back, and side to side. |
|
Air Pressure & Consumption
|
75 PSI (5.2kg/cm2); 3 CFM at 75 PSI (.09 cubic meters at 5.2 kg/cm2), based on 10 strokes per minute.
|
|
Size & Weight
|
32 (81cm) front to back x 64 (163cm) High x 120 (305cm) Long; Weight 1,200 lbs. (544kg).
|
| Production Rate |
10 strokes per minute; actual production rates will vary with type and width of material to be cut. |
| Actuation |

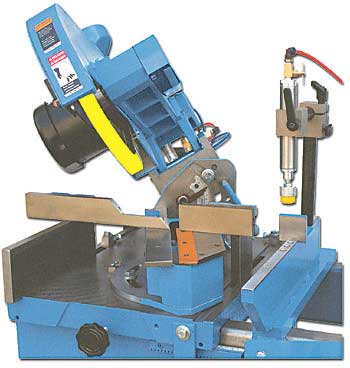

Two inside vertical clamps must be tripped by foot valve, then a two-hand anti-tie down, maintained contact safety control will work the air downfeed of saw heads. An air filter/regulator/lubricator with auto drain is provided. |
| Dust Collection |
Four, 4 round (102mm) outlets are provided, two for each saw head; 900 CFM required per saw head. |
| Compound of Tilting Angle |

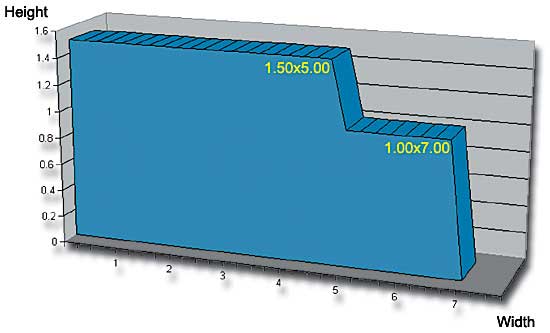

Saw head will compound angle cut up to 45° in direction shown with positive pin stops at 90°, 22-1/2°, and 45°; bottom of blades point towards each other; saw will also compound cut up to 10° on other side of vertical plane. |
