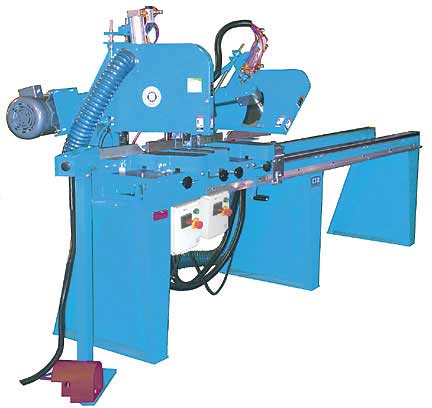

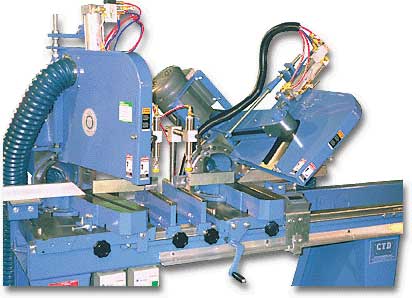

Blade Capacity
|
16 OD (406mm); saw blades not included.
|
|
Arbor
|
1 (25mm) with 3-1/2 (89mm) saw collars; mounted on preloaded and sealed bearings; 2-belt drive centered between bearings; 2800 RPM of spindle.
|
| Iron Castings |
Tables are precision machined and ground iron castings with milled keyways in tables to guide fences. |
|
Motors & Voltages
|
Two 3 H.P. 3 Phase 230/460 Totally Enclosed Fan Cooled Motors, 60 Hz, 1725 RPM with starters; 5 H.P. motors available; consult factory for
amperage ratings.
|
| Table |
Tables swivel from 90° to 45° toward each other with degree markings and pointer; stops are at 90° and 45°; angular adjustment in opposite direction available. |
|
Fences
|
On each side of blade are keyed to base and are easily adjustable front to back, and side to side. |
|
Air Pressure & Consumption
|
4 CFM at 75 PSI (.11 cubic meters at 5.2kg/cm2); based on 10 strokes per minute.
|
|
Size & Weight
|
40 (102cm) front to back x 69 (175cm) High x 120 (305cm) Long; Weight 1,500 lbs. (680kg).
|
| Production Rate |
10 strokes per minute; actual production rates will vary with type and width of material to be cut. |
| Actuation |
Two inside vertical clamps must be tripped by foot valve, then a two-hand anti-tie down, maintained contact safety control will work the air downfeed of saw heads. An air filter/regulator/lubricator with auto drain is provided. |
| Dust Collection |
Four dust outlets are provided--two 5 (127mm) round, two 4 (102mm) round; two outlets per saw head; 1200 CFM required per head; dust collector not included. |
