CTD N90 16" Vertical Frame And Notching Saw

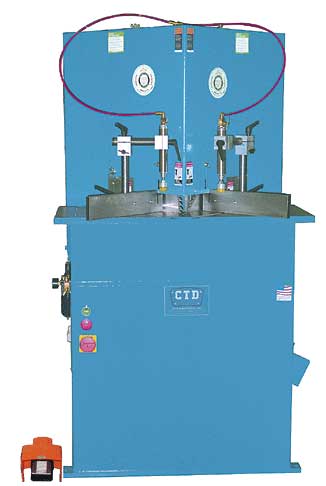

CTD Model N90

CTD Model N90

16" Vertical Frame & Notching Saw

The Model N90 has been designed for a variety of heavy duty cutting applications, such as 45° double mitre cutting, notching of aluminum and plastic extrusions, or toe-notching of wood panels. This heavy duty machine can have blades set for notching or mitering. Blades move vertically on linear bearings on 1-1/4" (32mm) diameter hardened and ground rods. Keyed fences allow for each set-up and accurate dimensional changes.

STANDARD FEATURES & SPECIFICATIONS

Blade Capacity	16" OD (406mm); saw blades not included.18" OD (457mm); optional
Arbor	1" (25mm) with 3-1/2" (89mm) saw collars; mounted on preloaded and sealed bearings; 2-belt drive; 2800 RPM of spindle.
Motors & Voltages	Two, 3 H.P. 3 Phase 230/460 Volt Totally Enclosed Fan Cooled Motors, 60 Hz, 1725 RPM with Dual Magnetic Starter; 5 H.P. Motors available.
Table Base	Precision machined and ground iron castings with milled keyways to guide fences; allows for easy and accurate dimensional changes.
Floor Stand	Heavy gage steel; stand is completely enclosed with 6" (152mm) dust collector outlet and scrap chute; 1200 CFM required.
Air Pressure & Consumption	6 CFM at 100 PSI (.17 cubic meters/minute at 7.03 kg/cm2) based on 6 strokes per minute; includes air filter/ regulator/lubricator with auto drain.
Size & Weight	Standard Toe-Notch Machine 42" (107cm) Wide x 42" (107cm) front to back x 62" (157cm) High; Weight 900 lbs. (410kg).
Production Rate	Up to 10 strokes per minute.
Cutting Capacity	Staggered Saw Blades/ Toe-Notch Configuration; 6" (152mm) x 6" (152mm) Deep x 4" (102mm) High Mitre Cutting/Staggered Saw Blades; 4-1/8" (105mm) Wide x 4" (102mm) High Mitre Configuration/Non-Staggered Saw Blades; 4" (102mm) Wide x 4" (102mm) High; up to 6" (152mm) High with special blade guard modification at extra charge.
Actuation	Air operated by foot valve with cover.

D45AX, D45FX Cutting Chart

Slide and Spindle View,
Blade Guard Removed

Rear View with Dust Cover Removed

Blade close-up
with Keyed Fences

Cutting Capacity

Staggered Saw Blades/ Toe-Notch Configuration; 6" (152mm) x 6" (152mm) Deep x 4" (102mm) High

Mitre Cutting/Staggered Saw Blades; 4-1/8" (105mm) Wide x 4" (102mm) High

Mitre Configuration/Non-Staggered Saw Blades; 4" (102mm) Wide x 4" (102mm) High; up to 6" (152mm) High with special blade guard modification at extra charge.

CTDN90-16
$11,500.00
"Vertical Frame and Notching Saw with 16"" Blade Capacity ***Must Specify Non-Staggered Blade Mitering Machine OR Staggered Blade Notching Machine>>>>> Call 1-800-458-3687 for Freight Rate"

CTDN90-18
$12,500.00
"Vertical Frame and Notching Saw with 18"" Blade Capacity; Staggered Blade Toe Notching machine>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCNFM1-12100
$470.00
"12"" OD x 100 Tooth x .110 plate x .140 kerf 1"" Bore Carbide Non-Ferrous Metal Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCNFM1-1290
$460.00
"12"" OD x 90 Tooth x .110 plate x .140 kerf 1"" Bore Carbide Non-Ferrous Metal Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCNFM1-1390
$550.00
"13"" OD x 90 Tooth x .110 plate x .145 kerf 1"" Bore Carbide Non-Ferrous Metal Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCNFM1-1696
$610.00
"16"" OD x 96 Tooth x .120 plate x .145 kerf 1"" Bore Carbide Non-Ferrous Metal Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCNFM1-1896
$750.00
"18"" OD x 96 Tooth x .140 plate x .190 kerf 1"" Bore Carbide Non-Ferrous Metal Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCNFM58-10100
$450.00
"10"" OD x 100 Tooth x .90 plate x .120 kerf 5/8"" Bore Non-Ferrous Metal Cut-Off Saw Blade(Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCNFM58-1072
$390.00
"10"" OD x 72 Tooth x .105 plate x .135 kerf 5/8"" Bore Non-Ferrous Metal Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCNFM58-12100
$470.00
"12"" OD x 100 Tooth x .110 plate x .140 kerf 5/8"" Bore Non-Ferrous Metal Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCNFM58-1290
$460.00
"12"" OD x 90 Tooth x .110 plate x .140 kerf 5/8"" Bore Non-Ferrous Metal Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCNFM58-14100
$550.00
"14"" OD x 100 Tooth x .120 plate x .145 kerf 5/8"" Bore Non-Ferrous Metal Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCS58-1048
$410.00
"10"" PST 48 Tooth x .095 plate x .120 Kerf Carbide Styrene Cut-Off Saw Blades (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCS58-1260
$420.00
"12"" PST 60 Tooth x .105 plate x .135 Kerf Carbide Styrene Cut-Off Saw Blades (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCW1-1290
$460.00
"12"" OD x 90 Tooth x .110 plate x .130 kerf 1"" Bore Carbide Wood Cutting Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCW1-13100
$660.00
"13"" OD x 100 Tooth x .120 plate x .140 kerf 1"" Bore Carbide Wood Cutting Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCW1-1380
$510.00
"13"" OD x 80 Tooth x .120 plate x .140 kerf 1"" Bore Carbide Wood Cutting Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCW1-1680
$540.00
"16"" OD x 80 Tooth x .120 plate x .145 kerf 1"" Bore Carbide Wood Cutting Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCW1-18100
$750.00
"18"" OD x 100 Tooth x .140 plate x .190 kerf 1"" Bore Carbide Wood Cutting Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCW58-1080
$400.00
"10"" OD x 80 Tooth x .095 plate x .110 kerf 5/8"" Bore Carbide Wood Cutting Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCW58-1290
$460.00
"12"" OD x 90 Tooth x .110 plate x .130 kerf 5/8"" Bore Carbide Wood Cutting Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDCW58-14100
$550.00
"14"" OD x 100 Tooth x .120 plate x .145 kerf 5/8"" Bore Carbide Wood Cutting Cut-Off Saw Blade (Priced per Pair)>>>>> Call 1-800-458-3687 for Freight Rate"

CTDAS10
$6,450.00
10' Autostop>>>>> Call 1-800-458-3687 for Freight Rate

CTDAS12
$7,750.00
12' Autostop>>>>> Call 1-800-458-3687 for Freight Rate

CTDAS16
$10,050.00
16' Autostop>>>>> Call 1-800-458-3687 for Freight Rate

CTDAS22
$13,350.00
20' Autostop>>>>> Call 1-800-458-3687 for Freight Rate

CTDAS6
$6,050.00
6' Autostop>>>>> Call 1-800-458-3687 for Freight Rate

CTDAS8
$6,250.00
8' Autostop>>>>> Call 1-800-458-3687 for Freight Rate

CTDSWS10
$625.00
10' Swing Stop>>>>> Call 1-800-458-3687 for Freight Rate

CTDSWS6
$495.00
6' Swing Stop>>>>> Call 1-800-458-3687 for Freight Rate

CTDVIS10
$2,095.00
10' Vision Gage SS>>>>> Call 1-800-458-3687 for Freight Rate

CTDVIS6
$1,450.00
6' Vision Gage SS>>>>> Call 1-800-458-3687 for Freight Rate

CTDRC
$495.00
"Roller Conveyor with 11-1/2"" Wide rollers x 10' Long attached to Floor Stand with leg and 7 Rollers>>>>> Call 1-800-458-3687 for Freight Rate"

CTDRCPVC
$645.00
"Roller Conveyor with PVC 11-1/2"" Wide rollers x 10' Long attached to Floor Stand with leg and 7 Rollers>>>>> Call 1-800-458-3687 for Freight Rate"

CTDSOFTWARE
$1,195.00
Level 3 Optimizing Software with link program>>>>> Call 1-800-458-3687 for Freight Rate

CTDT10
$435.00
"Extended Table Work Support 10"" Wide x 10' Long with two legs>>>>> Call 1-800-458-3687 for Freight Rate"

CTDT12
$925.00
"Table Support for Autostop 16"" x 12' long with two legs>>>>> Call 1-800-458-3687 for Freight Rate"

CTDASTP
$295.00
Air Stop>>>>> Call 1-800-458-3687 for Freight Rate

CTDFEX10
$325.00
"Front Extended Fence Length Gage, 10' long, Measures 116"">>>>> Call 1-800-458-3687 for Freight Rate"

CTDFEX6
$250.00
"Front Extended Fence Length Gage, 6' long, Measures 68"">>>>> Call 1-800-458-3687 for Freight Rate"

CTDOMD10
$775.00
10' Outside Measuring Device>>>>> Call 1-800-458-3687 for Freight Rate

CTDOMD6
$550.00
6' Outside Measuring Device>>>>> Call 1-800-458-3687 for Freight Rate

CTDOMD/RAB10
$925.00
"10"" Combination of Gages OMD and RAB>>>>> Call 1-800-458-3687 for Freight Rate"

CTDOMD/RAB6
$695.00
6' Combination of Gages OMD and RAB>>>>> Call 1-800-458-3687 for Freight Rate

CTDPAS10
$1,095.00
10' Production Air Stop>>>>> Call 1-800-458-3687 for Freight Rate

CTDPAS68
$995.00
"68"" Production Air Stop>>>>> Call 1-800-458-3687 for Freight Rate"

CTDRAB10-N
$550.00
"10' Rabbet Measuring System for Models D22-30, N80 and N91>>>>> Call 1-800-458-3687 for Freight Rate"

CTDRAB6-N
$450.00
"6' Rabbet Measuring System for Models D22-30, N80 and N90>>>>> Call 1-800-458-3687 for Freight Rate"
