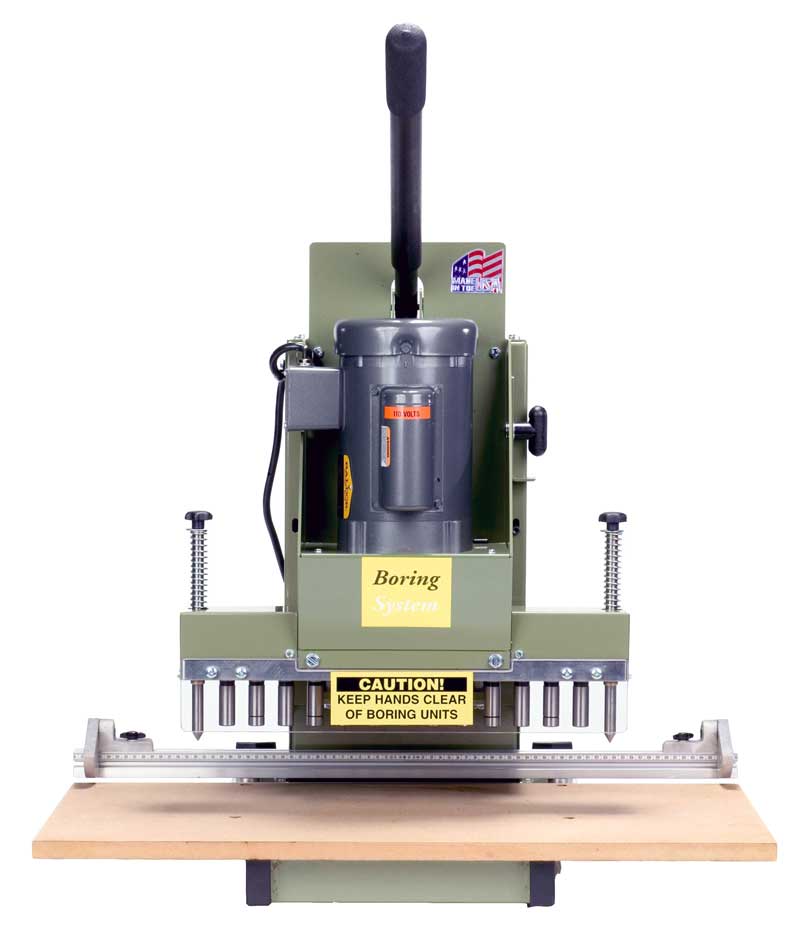

Conquest "Mini" 13-Spindle Line Boring Machine

Click on image to enlarge

Why a Conquest "Mini" 13?

• Space Saving.

• Simple To Operate.

• 2 Spring Loaded Index Pins.

• 2 Heavy Duty Cast Flip Stops.

• Heat Treated Steel Helical Gears (not plastic!)

• 8" Throat Opening (capacity to drill from edge of board).

• TEFC BALDOR Motor, Dust Protected & 3,450 rpm For Quick, Easy & “Clean” Drilling

• Low Cost True Industrial Duty Machine For The Serious Cabinet Builder.

Options:

• Stand.

• Spring Loaded Hold Downs

• Additional Fence Capacity & Flip Stops.

Standard Specifications

• 30" fence capacity with two flip stops. (optional 30" extensions).

• 13-spindle line boring head with steel heat treated helical gears.

• 32mm centers, distance between first & last drill = 15".

• TEFC Baldor motor, 3,450 rpm, ¾ hp (US hp rating) – 115 volt (9.6 amps) 60 Hz Single Phase.

• Accepts bits with 10mm shank, one flat side, 6 lefts & 7 rights.

• Machine weight = 132 lbs & 170 lbs crated.
