DAKE Utility Hydraulic Presses

Model B-10 10 ton capacity Utility Hydraulic Presses Model F-10 10 ton capacity Utility Hydraulic Press  Model F-20 20 ton capacity Utility Hydraulic Presses
Model B-10  10 ton capacity Utility Hydraulic Presses Model F-10  10 ton capacity Utility Hydraulic Press  Model F-20  20 ton capacity Utility Hydraulic Presses



UTILITY H-FRAME PRESSES
Model Part # Description
B-10 972200 Bench 10-ton Manual H-frame Press
F-10 972210 Floor 10-ton Manual H-frame Press
F-20 972220 Floor 20-ton Manual H-frame Press



Model B-10 10 ton capacity Utility Hydraulic Presses

Click here to download Model B-10 manual

Model B-10  10 ton capacity Utility Hydraulic Presses

Dakes line of utility presses might look small but they are extremely durable. These manual powered presses are the perfect addition for any home or hobby shop. The B-10 model is a 10 ton capacity bench press. For custom applications, a traversing head and removable nose piece come standard. Each press comes complete with table plates, gauge, and manual. These quality utility presses are guaranteed to last for years.

Features:

  • Fast, efficient single speed hand pump with adjustable mounting for maximum ergonomic operation.
  • Convenient top mounted gauge reads in tons and psi to monitor pressure.
  • Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel.
  • Large diameter, single acting polished piston with internal spring return to eliminate external pinch points.
  • The hydraulic pressing cylinder can be relocated right or left of center for unusual work pieces.

Standard Equipment:

  • Frame
  • Flat ram nose
  • Combination table plates and V-blocks
  • Step reduced ram nose



Specifications
Model B-10
Number 972200
Capacity 10 tons
Operation Manual
Horsepower n/a
Voltage n/a
Width between uprights 16-3/4 inch 425.45 mm
Width between table channels 3 inch 76.20 mm
Minimum ram to table 4 inch 101.60 mm
Maximum ram to table 16 inch 406.40 mm
Ram travel 6 inch 152.40 mm
Screw Travel n/a n/a
Horizontal workhead travel left/right of center left/right of center
Footprint 23 x 18 inch 584.20 x 457.20 mm
Height 36 inch 914.40 mm
Weight 165 lbs 74.84 kg
Base 23 x 18 inch 584.20 x 457.20 mm
Ram advance speed 1/8 inch per stroke
Pressing speed n/a
RPM n/a
Air Pressure n/a



Utility Hydraulic Presses Model F-10 10 ton capacity

Click to download F-10 Manual

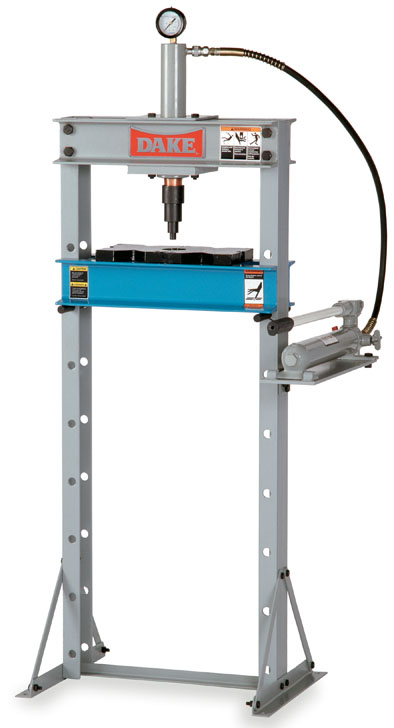

Model F-10  10 ton capacity Utility Hydraulic Press

Dakes line of utility presses might look small but they are extremely durable. These manual powered presses are the perfect addition for any home or hobby shop. The F-10 model is a 10 ton capacity floor press. For custom applications, a traversing head and removable nose piece come standard. Each press comes complete with table plates, gauge, and manual. These quality utility presses are guaranteed to last for years.

Features:

  • Fast, efficient single speed hand pump with adjustable mounting for maximum ergonomic operation.
  • Convenient top mounted gauge reads in tons and psi to monitor pressure.
  • Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel.
  • Large diameter, single acting polished piston with internal spring return to eliminate external pinch points.
  • The hydraulic pressing cylinder can be relocated right or left of center for unusual work pieces.

Standard Equipment:

  • Frame
  • Flat ram nose
  • Combination table plates and V-blocks
  • Step reduced ram nose
Specifications
Model F-10
Number 972210
Capacity 10 tons
Operation Manual
Horsepower n/a
Voltage n/a
Width between uprights 16-3/4 inch 425.45 mm
Width between table channels 3 inch 76.20 mm
Minimum ram to table 0-4 inch 0-101.60 mm
Maximum ram to table 38 inch 965.20 mm
Ram travel 6 inch 152.40 mm
Screw Travel n/a
Horizontal workhead travel left/right of center
Footprint 24 x 28 inch 609.60 x 711.20 mm
Height 60 inch 1,524.00 mm
Weight 225 lbs 102.06 kg
Base 24 x 28 inch 609.60 x 711.20 mm
Ram advance speed 1/8 inch per stroke
Pressing speed n/a
RPM n/a
Air Pressure n/a



dake f-20 20 ton utility presss

Click here to download F-20 Manual

Model F-20  20 ton capacity Utility Hydraulic Presses

Dakes line of utility presses might look small but they are extremely durable. The perfect addition for any home or hobby shop. The F-20 model is a 20 ton capacity floor press with a quick, 2-speed pump. For custom applications, a traversing head and removable nose piece come standard. Complete with table plates, gauge, and manual.

Features

  • Heavy steel channel frame and table
  • Long 8 inch stroke
  • Self-contained fast, efficient two speed hand operated pump conveniently located
  • Traversing head L/R for off center pressing applications
  • Removable nose piece to allow for custom nose piece installation
  • Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel
  • Large diameter, single acting polished piston with internal spring return to eliminate external pinch points
  • Comes complete with table plates, gauge, and owner’s manual

Standard Equipment

  • Steel channel and frame
  • Traversing head
  • Removable nose piece
  • Table plates
  • Gauge
  • Step nose piece
Specifications
Model F-20
Number 972220
Capacity 20 ton
Operation Manual
Horsepower n/a
Voltage n/a
Width between uprights 23 in 584 mm
Width between table channels 4 in 101.6 mm
Minimum ram to table 1 in 25.4 mm
Maximum ram to table 39 in 990.6 mm
Ram travel 8 in 203.2 mm
Screw Travel n/a
Horizontal workhead travel left/right of center
Footprint 34 x 26 inch 863.6 x 660.4 mm
Height 70 inch 1879.6 mm
Weight 283 lbs 128.5 kgs
Base 34 x 26 inch 863.6 x 660.4 mm
Ram advance speed 3/16 inch per stroke
Pressing speed n/a
RPM n/a
Air Pressure n/a



972200
MODEL: B-10 , BENCH 10-TON MANUAL H-FRAME PRESS
Mfg. item #: 972200
DAKE972200
Call for freight quote on this item or we will confirm freight charges before shipping.1
$465.70

52
972210
MODEL: F-10 , FLOOR 10-TON MANUAL H-FRAME PRESS
Mfg. item #: 972210
DAKE972210
Call for freight quote on this item or we will confirm freight charges before shipping.1
$693.02

52
972220
MODEL: F-20 , FLOOR 20-TON MANUAL H-FRAME PRESS
Mfg. item #: 972220
DAKE972220
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,006.90

52
