DeFelsko PosiTector Dew Point Meter at Southern Tool Catalog

Simple

Large, easy-to-read, graphics LCD with multilingual support
One-handed menu navigation
Audio and visual alarm – indicates when climatic conditions are unsuitable for painting
No need to consult complex tables or use a slide rule calculator
Bi-color indicator light – ideal in a noisy environment
All 5 parameters are constantly updated and displayed simultaneously
Graph mode charts all 5 parameters for quick analysis

Durable

Rugged, outdoor/indoor instrument
Solvent, acid, oil, water and dust resistant - meets or exceeds IP5X
Scratch/Solvent resistant display suitable for harsh environments
Shock-absorbing protective rubber holster with belt clip and wrist strap
Two (2) year warranty on both body and sensors

Graph Mode: charts all 5 parameters for
quick analysis

Versatile

Internal Memory stores 2,500 datasets in 100 batches with the simple touch of a button
Data Logger Mode automatically records all 5 parameters at user selected time intervals. Ideal for unattended operation.
Built-in clock – date and time stamps each stored measurement
Easily converts to accept optional probes including magnetic and hand-held surface temperature probes
USB and IR ports for downloading to a PC or printer
Flip Display for right-side-up viewing.
Celsius/Fahrenheit switchable
Backlit display for dim or dark environments

Flip Display enables right side-up
viewing in any position

Accurate

Fast response precision sensors provide accurate, repeatable readings with high reliability and long term stability
Smart Trend Indicators™ identify rising, falling or stable readings
Certificate of Calibration showing traceability to NIST included
Conforms to national and international standards including ISO 8502-4 , BS 7079-B4, ASTM D3276-05 , and SSPC-PA7

Magnetic surface temperature probe available for hands-free recording

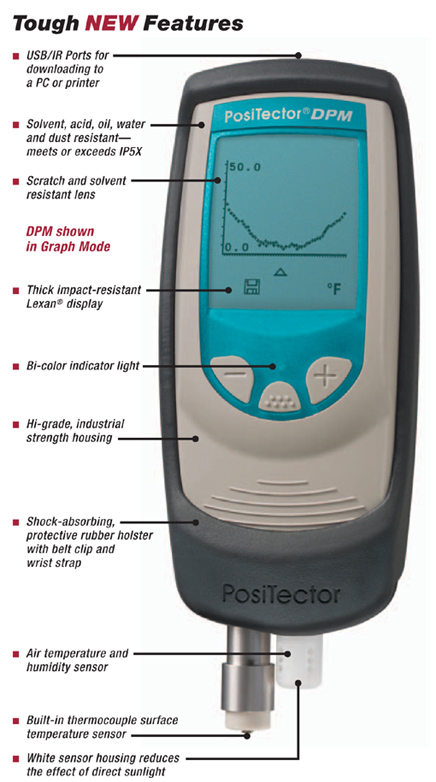

Rugged Features: The PosiTector DPM was designed for use in outdoor and indoor industrial environments. now with an impact-resistant Lexan® display and shock-absorbing rubber holster the PosiTector DPM is more rugged and durable than ever before.

The PosiTector DPM comes complete with internal memory storage for out-of-box recording. All 5 Climatic parameters, plus the date and time, can be recorded with the single touch of a button or automatically at user selected intervals.

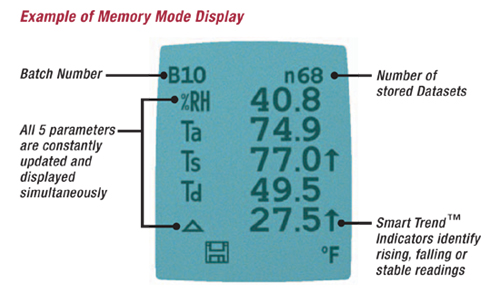

Memory Overview:

Memory Storage: Internal memory storage for 2,500 datasets in up to 1000 batches (groups). Each individual stored dataset contains all 5 climatic values plus date and time stamp.

Memory View: Stored datasets can be viewed individually on the PosiTectorDPM 's display, or viewed graphically for quick trend analysis

Individual Dataset View Example	Graph Mode Example

Data Logger Mode automatically records all 5 parameters at user selected intervals. Ideal for unattended operation

User Selectable Recording Intervals	Data Logger Mode works best with optional Magnetic Surface Temperature Kit

Technical Data
Specifications	Range	Accuracy	Resolution
Surface Temperature	-40° to 80° C	±0.5° C	0.1° C
	80° to 190° C	±1.5° C	0.1° C
	-40° to 175° F	±1° F	0.1° F
	175° to 375° F	±3° F	0.1° F
Air temperature	-40° to 80° C	±0.5° C	0.1° C
Air temperature	-40° to 175° F	±1° F	0.1° F
Humidity	0 to 100%	±3%	0.1%

PosiTector DPM comes complete with...

Humidity, air and surface temperature sensors
Protective rubber holster with belt clip and wrist strap
3 AAA batteries
Instructions
Nylon carrying case with shoulder strap
Certificate of Calibration traceable to NIST
Two (2) year warranty (Body and Sensors)

Magnetic Surface Temperature Kit
allows the instrument and surface temperature probe to be conveniently attached onto steel structures for hands-free recording. Ideal for unattended data logging during the work shift and overnight

Kit Includes

Interchangeable lower unit with built-in air temperature/ humidity sensor and a K-type connector that accepts the magnetic surface temperature probe
Magnetic surface temperature probe with armored cable and locking device to prevent accidental disconnection from the instrument during unattended operation
Additional rubber holster with magnetic clip to attach the instrument body onto steel structures
PosiSoft Software and USB cable
Durable, hard shell carrying case
Certificate of Calibration

Interchangeable lower unit
with built-in air temperature/humidity sensor
and a k-type thermocouple connector

Accepts other optional K-type thermocouple probes including:

Hand-held Surface Temperature Probe –
for spot checking hard-to-reach surfaces

Self-adhering Surface Temperature Probe –
sticks to solid materials including aluminum, wood, concrete, etc. Ideal for unattended monitoring

Liquid Temperature Probe –
general purpose probe with stainless steel shaft

Other optional accessories: PosiSoft Software/USB Cable, IR Printer, AC Power Cable
