We're Sorry This Item Is No Longer Avaliable

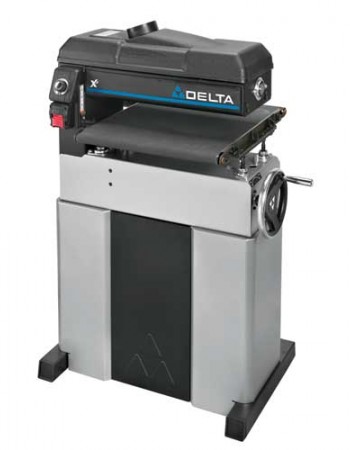

 18"x36" Drum Sander

The 31-260X includes 1-1/2 HP, 120V motor (drum), 1/30 HP DC, 90V Permanent Magnetic Motor (Belt), (5) 80 grit sanding wraps, (4) 120 grit sanding wraps.

  • Powerful 1-1/2 HP Induction Motor with a 6-groove belt for maximum power transfer and an 18 inch drum for superior material removal
  • The 31-260X has a rigid, welded C-frame head assembly that eliminates loose movement in the sanding drum resulting in superior parallelism of the work piece
  • Large sturdy steel cabinet style base dampens vibration for super smooth finish sanding. The cabinet style base easily converts to a user-installed Woodworkers Pantry for sandpaper roll storage.
  • Blow-molded integral dust hood with a positive lock secure seal is designed to extract dust from the entire drum without letting dust escape, keeping your shop air clear of harmful fine dust
  • Up-front, motor controls and redesigned easy-to-read thickness gauge for accurate finish sanding. Large paddle type on/off switch for operator convenience and safety.
  • Single-piece, cast-iron table construction is supported on each corner by precision-machined screws for accuracy, stability and easy adjustments
  • Outboard shaft accommodates accessory pneumatic drums for contour sanding
Model 31-260X
Motor: 1-1/2 HP, 120V, 1 Phase, 60 Hz
Abrasive Belt Size: Sanding wraps-precut or bulk roll
Drum Speed: 2,210 or 3,300 FPM
Table SizeFeed Table: 18 x 22-3/4 inch
Miter Gauge Groove: NA
Table Tilt: NA
Dust Port Diameter: 4 inch
Sanding Drum: 5 inch O.D., 18 inch W
Width: 28.5 inch
Length: 24.5 inch
Height: 46 inch
Weight: 190 lbs
Shipping Weight: 250 lbs


s-h alt

DELTA will repair or replace, at it's expense, and it's option, any new DELTA machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a DELTA factory service center.

No accessories listed
