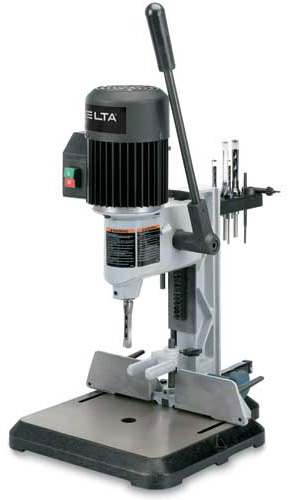

The 14-651 includes 1/2HP, 120
Volts, 60 Hz, single phase induction motor, 3/8" capacity chuck and
key, four mortising chisels and bits, tool and chisel holder, riser
block Features:
- Easy and open access to
drill chuck for bit changing

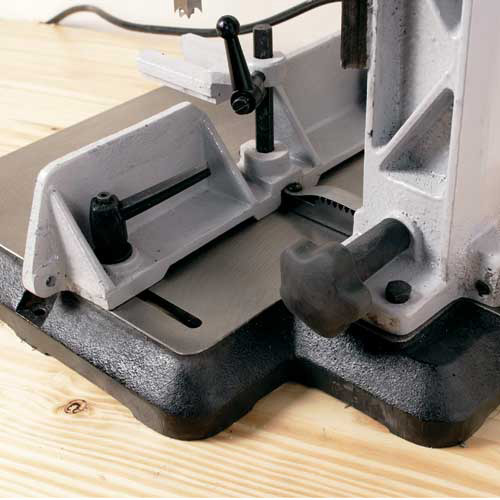

- Large cast-iron base with
center through hole
- Adjustable rack and
pinion fence and rack and pinion head raising and lowering
- Mortising head column can
be turned 180° and remounted for off-table mortising
- Adjustable fence and hold
down
- Adjustable dovetail way
on mortising head
- Tool and chisel tray
- Gas-filled
head-stabilizer
- Height attachment adds
1-3/4" of capacity under head
- Multi-position feed lever
- Adjustable depth stop
- Chuck key/hex wrench for
bit and chisel changing
|
|
SPECIFICATIONS |
| Motor |
1/2 HP, 120V, 60 Hz, 1
Phase induction motor, 1,750 RPM |
| Chuck
Capacity |
3/8 " |
|
Chisel Sizes |
( 5/8" max. dia. shank)
1/4" x 1/4"; 5/16" x 5/16"; 3/8" x 3/8"; 1/2" x 1/2 " |
|
Stroke |
5 " |
|
Under Head to Base |
9-3/8 " |
|
Chisel Center to
Fence |
3-3/4 " |
|
Under Hold Down |
3-3/4 " |
|
Fence Size |
Each side: 2-15/16" x
5-13/16"; Overall: 13-5/8 " |
|
Table Size |
Includes post mounting
area: 16-1/4" x 13-1/2 " |
|
Height |
30 " |
|
Width |
13.5 " |
|
Depth |
16.25 |
|
Weight |
55 lbs |
|
Shipping Weight |
76 lbs |
|
|
PL-14-651
