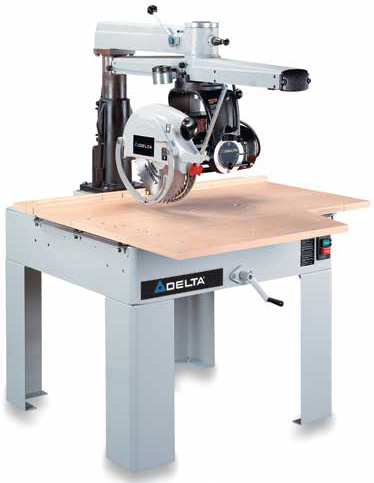

The 33-400 includes 3 HP, 230V,
60Hz. Single Phase TEFC motor with electro-mechanical blade brake,
14" blade guard with anti-kickback attachment, retractable leaf
guard, cutterhead return attachment, 14" combination blade,
cuttinghead clamp knob, adjustable crosscut stop, steel legs,
instruction manual
Features:
- Exclusive, "Turret Arm"
construction permits the sawblade to rotate a full 360° above
the work table. Gives full table capacity for cutting both right
and left hand miters
- Unique, "Micro-Set"
miter stops assure perfect right & left miter cuts for the life
of the saw
- Lifetime, track rods
feature glass-smooth hardened surfaces to minimize roller
friction
- Up-front operating
controls are conveniently located for safe, easy operation
- Six positive, convenient
table leveling jacks help sustain saw table-to-track arm
parallelism for excellent cutting accuracy
- Table measures a full
44" X 36-1/2".
- Convenient fence lock
knobs allows user to adjust and lock-in the desired fence
position at front of the machine
- Cutterhead return
automatically pulls the cutterhead behind the fence so material
can be quickly repositioned for the next cut
- Extra-long turret arm
provides maximum outboard rip and crosscut
 |
|
SPECIFICATIONS |
|
Motor: |
3 HP, 1 Phase, 230V, 60 Hz, 3,450
RPM, TEFC (totally enclosed, fan cooled) motor |
|
Motor Control:
|
24V Push-Button Station, Magnetic
Starter, Transformer & 3-Leg Overload Protection (LVC) |
|
Blade Diameter:
|
14 " |
|
Arbor Size:
|
1 " |
|
Crosscut Capacity (1" depth of
cut):
|
29 " |
|
Miter at 45° R & L (1" depth of
cut):
|
22 " |
|
Maximum out rip:
|
41 " |
|
Dado Capacity:
|
2 " |
|
Depth Of Cut At 90 Degrees:
|
4"; Without leaf guard: 4-1/16 " |
|
Max. 45 Degree Bevel Cut:
|
3/4 " |
|
Bevel Stops:
|
0°, 30°, 45°, 60° and 90 |
|
Miter Stops:
|
R & L 90° and 45 ° |
|
Table Size:
|
44" x 36-1/2 " |
|
Table Height:
|
32 " |
|
Height: |
76 " |
|
Weight: |
725 lbs |
|
Shipping Weight: |
749 lbs |
|
|
