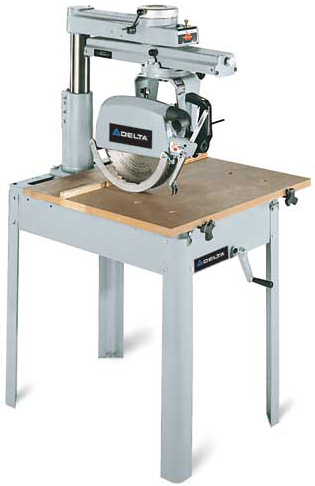

The 33-890 includes 2 HP, 230
Volts, 60 Hz, 3,450 RPM, Single Phase motor, on-off key lock switch
and overload protection, set of legs, automatic mechanical brake,
blade guard with anti-kickback attachment,, retractable leaf guard,
12" combination blade, wrenches.
Features:
- Unique turret arm action
permits saw blade to rotate 360° above work table, giving full
table capacity for left and right hand miters.
- Rigid channel, cast-iron
frame and heavy column provide perfect alignment and continued
accuracy
- Precision indexing with
positive stops for 90° and 45° miter cuts is precision machined
for lifetime accuracy.
- Truck rods feature glass
smooth hardened surfaces to minimize rolling friction. May be
rotated 180° for new bearing surface.
 |
|
SPECIFICATIONS |
|
Motor: |
2 HP, 230V, (wired 230V), 60 Hz, 1
Phase |
|
Motor Control:
|
On-off, key lock switch |
|
Blade Diameter:
|
(supplied): 12 " |
|
Arbor Size:
|
12 LH. Acme-5/8 " |
|
Crosscut Capacity (1" depth of
cut):
|
14-3/8 " |
|
Miter at 45° R & L (1" depth of
cut):
|
2-1/2 " |
|
Maximum out rip:
|
24-1/4 " |
|
Dado Capacity:
|
13/16 " |
|
Depth Of Cut At 90 Degrees:
|
3-3/4 " |
|
Max. 45 Degree Bevel Cut:
|
1-1/4 " |
|
Bevel Stops:
|
0°, 45° and 90 ° |
|
Miter Stops:
|
R & L 90° and 45 ° |
|
Table Size:
|
25-1/2" x 30" |
|
Table Height:
|
NA " |
|
Height: |
63.5 " |
|
Width:
|
30 " |
|
Length:
|
32 " |
|
Weight: |
300 lbs |
|
|
