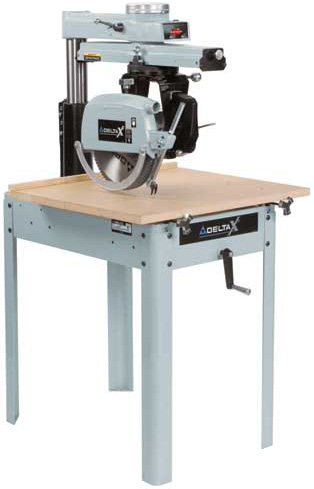

The 33-895X includes 2 HP, 230
Volts, 60 hz, 3450 RPM, Single Phase motor, on-off key lock switch
and overload protection, set of legs, automatic mechanical brake,
blade guard with anti-kickback attachment, retractable leaf guard,
12" combination blade, wrenches, instruction manual.
Features:
- 5 YEAR WARRANTY. All X5
series tools are backed by a "best in class" 5 year warranty.
That is 3-4 years longer than other brands.
- 2 HP, 230V, 60 hz, 3450
RPM, single phase motor
- On-off key lock switch
and overload protection
- Blade guard with
anti-kickback attachment
 |
|
SPECIFICATIONS |
|
Motor: |
2 HP, 230V, 60 Hz, 1 phase |
|
Motor Control:
|
On-off, key lock switch |
|
Blade Diameter:
|
12 " |
|
Arbor Size:
|
12 LH. Acme-5/8 " |
|
Crosscut Capacity (1" depth of
cut):
|
14-3/8 " |
|
Miter at 45° R & L (1" depth of
cut):
|
NA " |
|
Maximum out rip:
|
24-1/4 " |
|
Dado Capacity:
|
1-13/16 " |
|
Depth Of Cut At 90 Degrees:
|
3-3/4 " |
|
Max. 45 Degree Bevel Cut:
|
1-1/4 " |
|
Bevel Stops:
|
0°, 45° and 90 ° |
|
Miter Stops:
|
R & L 90° and 45 ° |
|
Table Size:
|
25-1/2" x 30" |
|
Table Height:
|
25.5" x 30 " |
|
Height: |
63.5 " |
|
Width:
|
30 " |
|
Length:
|
32 " |
|
Weight: |
300 lbs |
|
|
