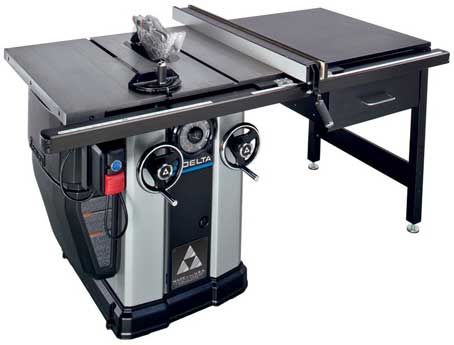

3 HP UNISAW
with 36" BIESEMEYER Fence System
36-L336
The 36-L336 includes 3 HP,
220V, 1 Phase, 60 Hz motor, Black precision BIESEMEYER fence and
tube, Black precision BIESEMEYER fence body, UNISAW black table
board 36" BIESEMEYER fence, Black 2" x 2" x 34-1/4" fence legs,
BIESEMEYER standard accessory drawer
Features:
- Bi-Level Dust Extraction
for improved dust collection
- Single-Cast Trunnion System provides increased accuracy
- Sure-Lock Dual Front Cranks provides convenient access to
dual front cranks
- Precision Bevel Gauge for ease of visibility
- Tool-Free Split Guard for improved blade line of sight
- 2-Position, Quick Change Guard System for improved safety
and functionality
- On-Board Storage is expandable and conveniently located
underneath the table board
|
|
Specifications |
|
Motor |
3 HP, 230V, 1 Phase, 60 Hz |
|
Arbor Size: |
5/8 " |
|
Blade Diameter: |
10 " |
|
Blade Speed: |
4,300 RPM |
|
Max Rip To Right Of Blade: |
36 " |
|
Max Rip To Left Of Blade: |
13-1/2 " |
|
Depth Of Cut At 45 Degrees: |
2-1/8 " |
|
Depth Of Cut At 90 Degrees: |
3-1/8 " |
|
Distance, front of table to
center of blade: |
18-1/2 " |
|
Table in Front of Saw at
Max. Depth of Cut: |
13-1/2 " |
|
Max Width Of Dado: |
13/16 " |
|
Miter Gauge Groove: |
3/8" x 3/4" |
|
Chip Exhaust Opening: |
NA " |
|
Table Height |
41 " |
|
Length |
With wings: 40"; With wings
and fence guide rail: 71 |
|
Width |
36-1/2 " |
|
Height |
41 " |
|
Weight |
624 lbs |
|
PL-36-L336
