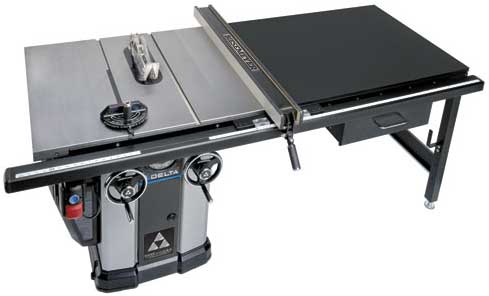

3 HP 10" UNISAW with
52" BIESEMEYER Fence System 36-L352
The 36-L352 includes 3 HP,
220V, 1 Phase, 60 Hz motor, 52" BIESEMEYER fence and tube, black
precision BIESEMEYER fence and tube, black precision BIESEMEYER
fence body, UNISAW black table board 52" BIESEMEYER fence, Black 2"
x 2" x 34-1/4" fence legs, BIESEMEYER standard accessory drawer.
Features:
- Single-Cast Trunnion System results in incredible vibration
control providing continuous smooth operation and dependable
accuracy
- Dual Front Cranks make adjusting blade height and blade
bevel easy, accurate, and repeatable in all your operations
- The Bevel Dial allows fine tuning of the blade bevel with
ease and provides accuracy you can trust to within 1/4 degree
- The Cabinet Construction consists of a large cast-iron base
providing stability and solid footing
- True American Marathon Motor provides added power and is
available in both 3 and 5 HP
- Improved Table-Top Geometry provides more surface area to
stabilize the product and offers outstanding smoothness and
superior ease
- The Largest Blade Opening in class makes fine tuning your
riving knife and blade changes easier than ever without scraping
up your skin
- The Push Button Arbor Lock makes the blade changing process
simple and more natural with the use of only 1 wrench, without
busting your knuckles
- Large, Easy to Access ON/OFF switch is multi-directional and
can be activated from any angle. Its mounting bracket is more
solid and sturdy for those times when turning it off with a knee
or a foot is necessary
- Smart Storage provides simple and accessible storage for 5
saw blades, 2 riving knives, an arbor nut flange, and the entire
rise-and-fall split guard assembly. There is also adequate room
for a push stick, arbor wrench with extra-long handle, and
standard throat plate
- Bi-Level Dust Extraction uses only 1 collector hose coupled
with a sloping bottom cabinet used to navigate dust, and the new
closed bevel gauge provides a sealed interior. This combination
results in much higher level of dust collection
- Tool-Free Split Guard design allows a true rise-and fall
riving knife by using a lever on the front of the saw or inside
the throat plate. You can then add the anti-kickback paws and
guard to the riving knife without tools
- BIESEMEYER Fence System provides hairline pointer and
built-in tape allowing you to make precision set-ups, cut after
cut. 9-ply fence faces have improved tolerances like no other as
well as an improved cam front lock lever for an overlock with a
curved edge
|
|
Specifications |
|
Motor |
3 HP, 230V, 1 Phase, 60 Hz |
|
Arbor Size: |
5/8 " |
|
Blade Diameter: |
10 " |
|
Blade Speed: |
4,000 RPM |
|
Max Rip To Right Of Blade: |
52
" |
|
Max Rip To Left Of Blade: |
11-1/2 " |
|
Depth Of Cut At 45 Degrees: |
2-1/8 " |
|
Depth Of Cut At 90 Degrees: |
3-1/8 " |
|
Distance, front of table to
center of blade: |
18-1/2 " |
|
Table in Front of Saw at
Max. Depth of Cut: |
13-1/2 " |
|
Max Width Of Dado: |
1
" |
|
Miter Gauge Groove: |
3/8" x 3/4" |
|
Chip Exhaust Opening: |
NA " |
| Table Size |
31" x 42" |
|
Table Height |
35
" |
|
Length |
NA |
|
Width |
NA |
|
Height |
35
" |
|
Weight |
456
lbs |
|
PL-36-L352
