Portable Straight
Line Cutter / Track Burner-
-
Solid-state
control
-
Convenient,
easily
accessible
controls
-
Speed
range of
3 - 110
ipm
(76.2 -
2794mm/min)
-
Sturdy
one-piece
cast
aluminum
housing
-
Knurled
drive
wheels,
for
positive
traction
-
Six-foot
track
lengths
-
50-90
amp
plasma
capability
-
Extensive
variety
of
accessory
equipment
for
expanded
capability
-
Standard
115/220
VAC
50/60 Hz
power
source
|
|
|
|
Steel Industry
Products Portable Straight Line Cutter-
-
Solid
state
control
-
Convenient,
easily
accessible
controls
-
Speed
range of
2-45 ipm
(51-1143
mm/m)
-
Sturdy
one-piece
cast
aluminum
housing
-
Knurled
drive
wheels
for
positive
traction
-
Track
lengths
of 6, 7
1/2 and
9 ft.,
with
interlocking
ability
for
longer
travel
-
Extensive
variety
of
accessory
equipment
for
expanded
capability
-
Standard
115 VAC
50/60 Hz
power
source
-
Control
Panel
Mounted
vertically
and
shielded
to
protect
components
from
spatter,
slag,
and
abuse
-
Speed
potentiometer
includes
drag for
ease of
adjustment
-
Pilot
light to
indicate
power
"on"
-
Metal
toggle
switches
-
Power
cable
located
to avoid
interference
-
Thumbwheels
on
casters
- One
piece
"fitted"
bottom
cover
with
insulation
board
keeps
out
dirt,
dust and
heat
-
Venting
of
motor/drive
compartment
for
cooling
-
Bronze
lever
washer
for long
life
- Low
speed
range
for
cutting
at
slower
speeds
-
Control
board
located
for heat
protection
|
|
|

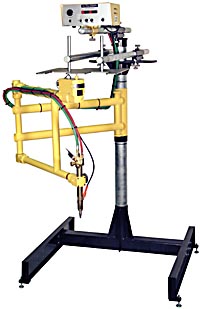

Single-Torch Pattern Cutter-
- Simple, accurate, magnetic tracing system lets you reproduce quickly and precisely, at speeds from 4 to 150 inches (102 - 3810mm/m) per minute.
- Variable-speed direct drive motor performs smoothly and dependably. Cut shapes accurately and economically with a single-torch system that’s become the industry standard.
- Put all machine functions at your fingertips with the RC or DC Series Ultra-Graph controls.
- 50-90 amp plasma capability
|
SPECIFICATIONS |
|
Operating Radius |
60
inches, 1524 mm |
|
Circle-Max. Diameter |
55
inches, 1397 mm |
|
Straight Line-Max |
110 inches, 2794 mm |
|
Weight-RC Floor |
264 lbs., 119.7 kg |
|
Weight-RC Table |
192 lbs., 87.1 kg |
|
Weight-DC Floor |
248 lbs., 112.5 kg |
|
Weight-DC Table |
176 lbs., 79.8 kg |
|
Power Supply
Requirements |
115 vac, 50/60 Hz, 1 ph |
|
|
|
|
Machine Carriage-
-
Versatile
- easily
portable,
can be
mounted
on a
precision
track,
used on
a
standard
S 10 x
25.4
I-beam,
or
operated
directly
on the
workpiece
-
Powerful
-
permanent
magnet
motor
allows
machine
to drag
cables
or hose
up to
150 feet
-
Anti-backlash
-
adjustable
drag
brake to
maintain
a
constant
minimum
load in
both
directions
- Dual
clutch
levers -
located
at front
and rear
for
operator
convenience
-
Pre-tapped
mounting
holes -
for a
variety
of
equipment
mounting
configurations
- The
CM-37B
is an
extremely
strong
and
versatile
carriage
and can
be used
as the
basis
for many
custom
industrial
equipment
requirements.
|
