Click below for larger image |
 |
 |
 |
|

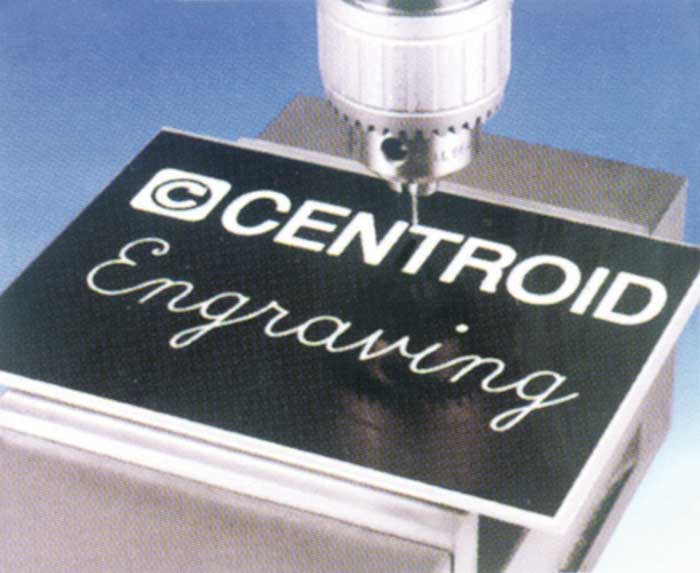

Engraving |

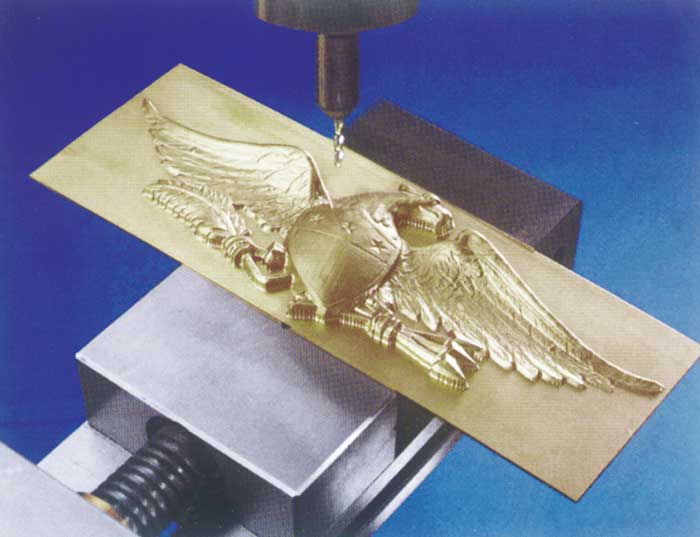

High Speed Machining |

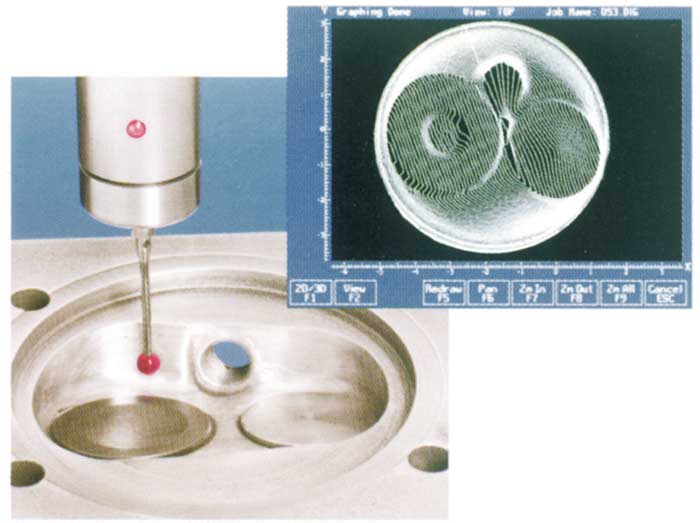

Digitizing |
|
Machine
Standard Features and Equipment:
- ISO 9001 certified
- “CENTROID” 3 axis fully automatic CNC control #
M400S, made in USA
- 4th axis is upgradeable
- Easy switch from CNC to manual operation
- CNC control coolant system on/off, with base
chip/coolant pan
- Model # GMM-949-CNC / 1054-CNC/ 5KV-CNC have
mechanical variable spindle speed from 70-4,300 rpm, CNC
control spindle start/stop, spindle auto/manual, spindle
clockwise/counter clockwise
- Model # GMM-949F-CNC/ 1054F-CNC/ 5KVF-CNC have CNC
programmable
- Spindle speeds, from 65-5,000 rpm.
- Heavy Duty Meehanite Castings.
- Hardened & ground ways:
- # GMM-949(F)-CNC have box way on knee and dovetail
way on column, and
- # GMM-1054(F)-CNC and GMM-5KV(F)-CNC have box ways
on knee & Column
- Turcite-coated surfaces for x/y axis
- Precision ground C7 class ballscrews on x, y and z
axis with pre-loaded angular contact bearings
- End travel CNC software limit switches for xyz
(three) axis
- Safety handwheels equipped for all axis for manual
movement
- Auto lubrication with CNC control alarm and stopping
after the program finish
- Two rubber chip guards and Tool box kit
- Power source 220V,3phase (optional 220V, 1 phase for
949F AND 1054F models )
- One year industrial warranty for parts
|
Standard Features and equipment for “CENTROID” CNC control #
M-400S:
- PC based, Pentium, 32
Bit digital signal processor
- Upgradeable software,
and teach mode, software travel limits
- 128 MB internal hard
drive ( control memory / storage capacity )
- 1.44 MB HD internal
floppy disk drive, 3.5” floppy
- 15” Color LCD display
and alpha numeric keyboard
- LAN ready, RS232
(interface), USB2.0, floppy drive
- High speed 3D
contouring ( 3 axis simultaneous )
- High speed Machining
contains unlimited part program size, cuttercomp
lookahead, high block throughout, accel/decel lookahead,
high speed 3D contouring.
- Standard software
includes cutter compensation, drilling cycle, multi
range spindle and easy “conversational programming
language”
- Console display
includes current position , run time , feed rate & parts
counter, program display, as well as English, Spanish,
French, and Chinese language dis.
- Conversational
programming includes Pocket Cycles, Frame Mill Cycle,
Clean out of Irregular Pockets, Straight or Ramped
Plunges on Canned Cycles, Position and Line & Arc
Events, Automatic Corner Radius, Copy and Repeat &
Rotate, Mirror with nesting, Cycles of Drilling, Boring,
threadmilling ( standard and helical), and bolthole
pattern cycles, Automatic Angle Calculator, Graphical
Math Help for Solving Angles & Intersections, etc,
Linear and Polar Values on Same Event, Single Key
Graphing Anytime During Programming
- Control Operator Panel
( on Console ) includes:Spindle start/stop, spindle
auto/manual, spindle clockwise/counter clockwise,
E-stop, Feedrate Override, Fast/slow Jog Buttons,
Continuous Jog or Incremental Jog ( X1, X10, X100 ), MPG
select Button, Tool check, Cycle Start / Cycle Cancel,
Feed hold & Single Block, Axis jogs of x, y, z , Tool
Index +/-, and Programmable Auxiliary Keys
- Operation includes:
Inch/Metric Conversions,Icon & Soft Key-based Menus,
Alpha-numeric Program Names, 3D Tool Path Graphics ( G
code Back Plot ), On Screen Operation Instructions, Part
Setup Menus, Tool Length & Diameter Setup Menus,Full
Screen Unlimited File Size Text Editor, Backlash&
Leadscrew Compensation, Software Travel Limits, and Auto
Machine Home & Park
- G-code and M-function
Programming
- 200 Position Tool
Library, Tool Length and Radius Compensation
- Utilities include:
Backup & Restore System Files, Format Floppy Command,
PLC & System Diagnostics, Import/Export Program, Drag
Plot ( Patented ), Auto Tune, Error message Display
- UL listing for
individual electrical components inside control cabinet
- Video Tape for CNC
control is available ( optional )
|
Optional Equipment and Software of Centroid M400S for GMC
CNC Knee Mills
-
One day on site training
-
DP-4 Probing package, includes DP-4 and probing cycles
7 types for setting fixtures and tool offsets # 10405
-
DP-4 Digitizing package # 10770 & 10405, incl. probing &
Digitizing
-
MPG-100 steps /revolution with handwheel, P/N 10808.
-
CENTROID Engraving software, P/N 10740
-
Intercon off-line Conversational Programming for desktop
PC# 10730
-
Second Language
-
TT-1 tool touch-off kit w/ software for automatic tools
setup#10220
-
Compression tapping software, P/N 10620
-
4th Axis package, incl 150mm rotary table,
servo & software# 10450
-
Mutiple work coordinate G55-59 , # 10600
-
Scaling & mirroring G50 & G51, # 10625
-
Unlimited part program size # 10630
-
Package B software includes “Subprograms & Macros,
Multiple Work Coordinates and Scaling & Mirroring” # Pkg
B
-
Halogen working light # HWKL
-
Power Air Draw Bar # HQR8, “HIGH QUALITY”, USA, free
install
-
52 pcs clamping kit # GMC900-0001
-
11pc high precision collet set # R8-Lyndex, Japan
1/8”-7/8”
-
17 pc ER40 spring collet set with R 8 chuck, #
GMC-900-0005, 1/8”-1”
-
17 pc ER40 spring collet set with NT 40 chuck, #
GMC-900-0005-40,1/8”-1”
-
NMTB 40 End Mill Holder set # EMS7-NT40, 7 pcs, 3/8, ½”,
5/8”, ¾”, 7/8”, 1” & 1-1/4”
|
DIFFERENCE BETWEEN CENTROID M400S AND COMPETITION |
| |
CENTROID M400S |
COMPETITION |
|
1. High Speed Machining |
included, standard |
$5,995.00 |
|
2. Color Screen |
included, standard |
not a chance |
|
3. 3.5” floppy |
included, standard |
$495.00 |
4. 16 Mb Solid State HD
or 20 GB HD |
included, standard |
1 MB memory |
|
5. Conversational |
included, standard |
$495.00 |
|
6. Teach Mode |
included, standard |
no way |
|
7. Auto Tool Setter |
$495.00 |
$3,150.00 |
|
8. LAN/Net Ready |
included, standard |
$2,995.00 |
|
9. Digitizing |
$4,295.00 |
$20K + 3rd Party A |
|
10. Probing with Probe |
$1,295.00 |
$7,995.00 |
|
11. Weight |
B2VS-4,500 LBS
B3VS-6,500 LBS |
3,300 LBS
5,000 LBS |
|
12. Hardened/ground Ways |
YES |
NO |
|
13. Warranty |
1 year |
6 months |
|
|
SPECIFICATIONS |
|
Model |
GMM-949-CNC / GMM-949F-CNC |
GMM-1054-CNC /
GMM-1054F-CNC
|
GMM-5KV-CNC /
GMM-5KVF-CNC |
| Table size |
9” x 49” |
10” x 54” |
|
Table load
capacity |
650 LBS |
750 LBS |
850 LBS |
| Bed way type |
Box way on knee, Dovetail way on column |
Box way
on knee,
Box way on column |
|
X Axis travel |
36” |
| Y Axis travel |
12” |
16-1/2” |
|
Z Axis travel |
16” |
16-1/2” |
| Ram travel |
12” |
22-1/2” |
12-1/2” |
|
Spindle taper
type |
R-8 |
R-8 |
NT # 40 |
| AC Spindle motor |
3 HP, 220V |
3 HP ,220V |
5 HP, 220V |
|
Spindle speed |
GMM-949-CNC |
GMM-949F-CNC |
GMM-1054-CNC |
GMM-1054F-CNC |
GMM-5KV-CNC |
GMM-5KVF-CNC |
|
60-4,300 rpm |
65-5,000 rpm |
60-4,300 rpm |
65-5,000 rpm |
60-4,300 rpm |
65-5,000 rpm |
| Quill (spindle) diameter |
3 3/8” |
|
Quill
(spindle) travel |
4 -1/2” |
| Table T-slot size |
5/8” x 3 slots |
|
Head tilting
front/back |
45 degree |
| Ram swivel right/left |
360 degree |
|
Spindle to
table |
18” / 0” |
17” / 0” |
| Spindle to column |
19” / 7” |
27” / 4” |
|
Resolution |
0.0001” |
| Repeatability |
0.0003” |
|
Repostioning |
0.0002” /12” |
| Servo motors, XYZ |
29”/LB, DC |
|
Rapid
traverse, XYZ |
230 IPM |
| Mach weight, LBS |
2,850 LBS |
3,950 LBS |
4,250 LBS |
|
|
