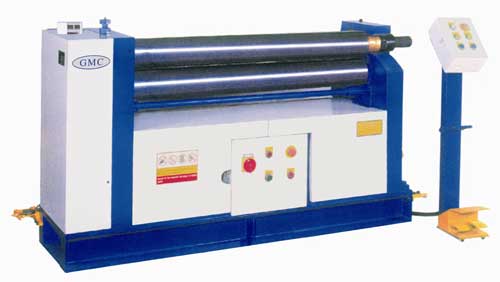

GMC HBR Initial Pinch Hydraulic Rolls

Standard Features:

ISO 9001 certified
100% made in Taiwan
Easy swing –out top roller
Standard cone attachment installed
1 each LED indicator for bending roll position
Safety line all around the machine for emergency stop
Heavy Duty all steel welded machine construction
German Hydraulic logic system centrally located and quiet
Bending roll is hydraulic powered up/down & tilting adjustment
Planetary reduction gear and pump
All three rolls are made of high grade alloy steel
All rolls run forward and reverse
Safety type foot pedal control
Overload protection and disconnect switch
Power source 208V/220V, (Option 460 V , 3 phase)
One year industrial warranty for parts

Standard Equipment:

LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal
Tool box and leveling pads

Optional Equipment:

Cone attachment ( to make cone parts )
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire

SPECIFICATIONS
Model		HBR-0612	HBR-0408	HBR-0510	HBR-0608	HBR-05316	HBR-06316	HBR-0425	HBR-0525	HBR-0625
Roll capacity	Mild steel	6'x12Ga	4'x8Ga	5'x10Ga	6'x8Ga	5'x3/16"	6'x3/16"	4'x1/4"	5'x1/4"	6'x1/4"
Roll capacity	Stainless steel	6'16Ga	4'x12Ga	5'x14Ga	6'x12Ga	5'x11Ga	6"x11Ga	4'x3/16"	5'x3/16"	6'x3/16"
Minimum roll dia.		6 3/4"			8 1/4"		9 7/8"	8 1/4"	9 7/8"
Rolls length		6' 8"	4' 3"	5' 2"	6' 8"	5' 2"	6' 8"	4' 3"	5' 2"	6' 8"
Rolls dia.		4 3/4"			5 7/8"		7"	5 7/8"	7"
Pre-bend		0.20"		0.18"	0.20"	0.16"	0.18"	0.16"	0.18"
Rolls speed		190" / min
Rolls opening		2 1/6"								3/8"
Oil tank cap		15 Gal	20Gal			25 Gal
Main motor		2 HP			3 HP		5 HP	3 HP	5 HP	7 HP
Machine weight (lbs)		5,610	4,110	4,650	6,150	5,650	8,310	4,650	6,850	7,650
Dimensions (inches)		116x32x51	86x32x51	96x32x51	118x36x53	98x36x53	123x37x58	87x36x53	102x38x58	118x38x58

GMCHBR-0612
$14,850.00
80” x 12 Ga., 2 HP, Taiwan, Initial Pinch Hydraulic Plate Bending Roll Machines FREE Cone Attachment (Factory Install) & 3 FREE Wire Grooves On Rollers ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"

GMCHBR-0408
$9,850.00
52” x 8 Ga. , 2 HP, Taiwan, Initial Pinch Hydraulic Plate Bending Roll Machines FREE Cone Attachment (Factory Install) & 3 FREE Wire Grooves On Rollers ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!" - PC-120108

GMCHBR-0510
$13,850.00
62” x 10 Ga., 2 HP, Taiwan, Initial Pinch Hydraulic Plate Bending Roll Machines FREE Cone Attachment (Factory Install) & 3 FREE Wire Grooves On Rollers ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"

GMCHBR-0608
$14,850.00
80” x 8 Ga., 3 HP, Taiwan, Initial Pinch Hydraulic Plate Bending Roll Machines FREE Cone Attachment (Factory Install) & 3 FREE Wire Grooves On Rollers ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!" - PC120108

GMCHBR-05316
$14,350.00
62” x 3/16” , 3 HP, Taiwan, Initial Pinch Hydraulic Plate Bending Roll Machines FREE Cone Attachment (Factory Install) & 3 FREE Wire Grooves On Rollers ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!" - PC-120108

GMCHBR-06316
$15,350.00
80” x 3/16” , 5 HP, Taiwan, Initial Pinch Hydraulic Plate Bending Roll Machines FREE Cone Attachment (Factory Install) & 3 FREE Wire Grooves On Rollers ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!" - PC120108

GMCHBR-0425
$10,850.00
52” x ¼”, 5 HP, Initial Pinch Hydraulic Plate Bending Roll Machines FREE Cone Attachment (Factory Install) & 3 FREE Wire Grooves On Rollers ====> Made in Taiwan FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"

GMCHBR-0525
$14,850.00
62” x ¼” , 5 HP, Initial Pinch Hydraulic Plate Bending Roll Machines FREE Cone Attachment (Factory Install) & 3 FREE Wire Grooves On Rollers ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"

GMCHBR-0625
$16,850.00
80” x ¼” , 7-1/2 HP, Initial Pinch Hydraulic Plate Bending Roll Machines, Made in Taiwan FREE Cone Attachment (Factory Install) & 3 FREE Wire Grooves On Rollers ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"

GMCHBR-CA
$475.00
Cone attachment ( to make cone parts ) ====> FREE FREIGHT Only When Ordered With A Machine!

GMCHBR-GRV
$875.00
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire ====> FREE FREIGHT Only When Ordered With A Machine!
