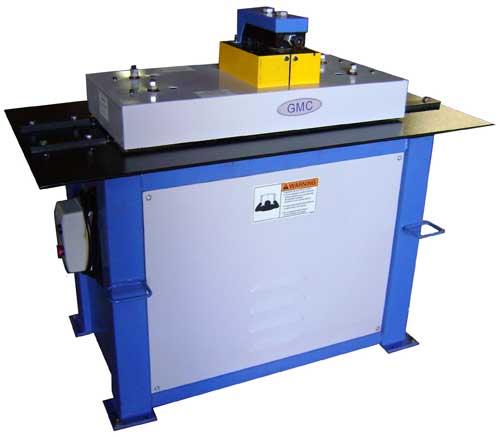

GMC PL-16E Heavy Duty Pittsburgh Type Locking Forming Machine

Standard Features:
  • ISO 9001 certified
  • 3HP Heavy duty AC main motor, 220V, 3 phase
  • Heavy welded all steel construction for maximum rigidity
  • Standard pittsburgh attachment
  • Standard round power flange attachment, double seam rool and drive cleat roll
  • ACME side can be operated at same time
  • One year warranty for parts
Standard Equipment
  • Standard pittsburgh attachment # PA-16E, installed
  • Power flange attachment # FA-16E, installed
  • Drive cleat roll # DCR-16E, installed
  • Double seam

Optional Equipment

  • 2 in 1 roll set # RAR/SSR16 for right angle roll # RAR-16E & standing seam roll
SPECIFICATIONS
Model GMC PL-16E
Capacity 16 Ga to 20 Ga
Depth of pocket 1/2"
Feeding speed 23 FPM
Main motor 5 1/2HP, 220V, 2Ph
Weight, approx 628 Lbs
Machine dimensions, LxWxH 43"x27"x48"
PA-16E FA-16E DCR-16E DSR-16E RAR-16E    -    SSR-16E


PL-16E-th.jpg GMCPL-16E
$7,850.00
"16 GA. TO 20 GA. , 5-1/2 HP, 220V, 3 PH (comes with FA-20E, DCR-20E & DSR-20E as standard) ----> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"
