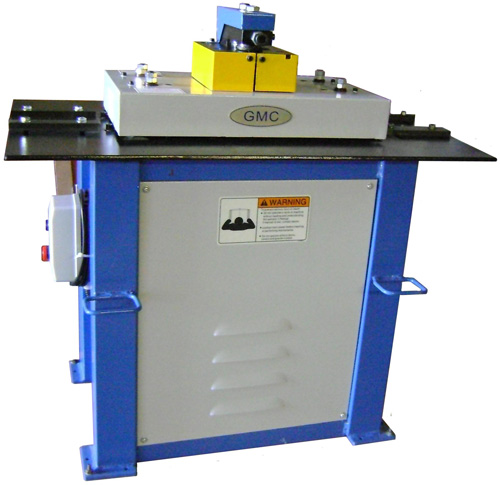

GMC PL-20E Pittsburgh Type Locking Forming Machine


Click image to enlarge
Standard Features:
  • ISO 9001 certified
  • 1.5HP Heavy duty AC main motor, 110V
  • Heavy welded all steel construction for maximum rigidity
  • Standard pittsburgh attachment
  • Standard round power flange attachment, double seam roll and drive cleat roll
  • ACME side can be operated at same time
  • Heavy duty caster wheels for easy moving
  • One year warranty for parts
Standard Equipment:
  • Standard pittsburgh attachment # PA-20E, installed
  • Power flange attachment # FA-20E, installed
  • Drive cleat roll # DCR-20E, installed
  • Double seam roll # DSR-20E, installed

Optional Equipment:

  • 2 in 1 roll set # RAR/SSR 20 for Right angle roll # RAR-20E and standing seam roll # SSR-20E
SPECIFICATIONS
Model GMC PL-20E
Capacity 20 Ga to 26 Ga
Depth of pocket 5/16"
Feeding speed 32 FPM
Main motor 1.5HP, 110V
Weight 458 LBS
Machine dimensions, LxWxH 36"x23"x43"

PA-20E FA-20E DCR-20E DSR-20E RAR-20E


PL-20E-new-th.jpg GMCPL-20E
$3,350.00 $2,850.00
Overstock Sale - Limited Time Only "20 GA. TO 26 GA. , 2 HP, 110V (comes with FA-20E, DCR-20E & DSR-20E as standard) ----> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!" - PC-032009


GMCSSR-20E
$795.00
2 in 1 roll set # RAR/SSR 20 for Right Angle Roll # RAR-20E and Standing Seam Roll # SSR-20E ---- Call 1-800-458-3687 for a Freight Rate on This Item! PC-110708
