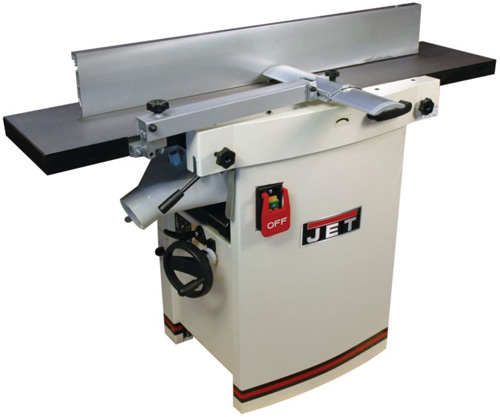

You don’t have to choose between buying a jointer or a planer – with
the JJP-12, you can have both. Leave it to JET to design a machine
that allows quick changeover between jointing and planing functions.
This versatile machine features an extra large aluminum extruded
fence with centered controls for quick adjustments, a built-in dust
chute capable of handling both planing and jointing operations, and
a powerful 3-horsepower induction motor that can handle the toughest
lumber. A heavy-duty, fully welded steel base cabinet houses the
motor and the planer table mechanism, while providing solid mounting
for the associated controls and support for the jointer table and
fence assemblies. Best of all, the fence can stay put when changing
over functions. It’s the best of both worlds, and it comes from JET
Features
-
Three high-speed steel knife cutter head provides rapid cutting
and a superior finish
-
Parallelogram design keeps the table close to the cutterhead for
improved finish and allows for precise depth of cut adjustments
-
Extra large aluminum extruded fence with centered controls for
quick adjustments
-
Extrmemly quick changeover between jointing and planing
functions. Fence does not need to be removed
-
Powerful 3HP induction motor easily handles the toughest
jointing and planing tasks
-
Heavy-duty, one-piece steel closed stand includes mounting tabs
for increased stability
-
Built-in dust chute with 4" dust port used for both jointing and
planing operations
-
Large handwheel for quick and precise adjustments of planer
table
-
Heavy-duty cast iron tables with a machined finish to ensure
accuracy and flatness
-
Magnetic switch provides safer and more reliable operation
|
|
Accessories |
| 708815 |
JPB-36, Push Block |
| 708821 |
JJP-12K Replacement Knives Set of 3 |
| 709207 |
13" Roller Stand |
|
|
SPECIFICATIONS |
|
Part Number |
708475 |
|
Model Number |
JJP-12 |
| Cutterhead Speed |
5500 RPM |
| Cutterhead
Diameter |
2¾ " |
| Table Height |
33½ " |
| Dust Port
Outside Diameter |
4 " |
| Dust Collection Minimum CFM
Required |
400 cu.ft/min |
| Motor Power |
3 HP |
| Motor Voltage |
230 V |
| Prewired
Voltage |
230 V |
| Motor Current |
12.5 A |
|
Motor Phase |
1 Ph |
| Height |
40 inch |
| Width |
34 inch |
| Length |
55 inch |
| Net Weight |
500 pound |
| Warranty |
5 Years |
|
|
