SPECIFICATIONS |
| Part Number |
708376 |
| Model
Number |
JWL-1220 |
| Swing Over Bed |
12 " |
| Swing
Over Tool Rest Base |
9½ " |
| Distance Between Centers |
20 " |
| Speeds |
Six,
500 to 3900 RPM |
| Headstock Taper |
MT-2 |
| Spindle
Nose |
1 " x 8
TPI |
| Hole Through Spindle |
3/8 " |
|
Tailstock Taper |
MT-2 |
| Hole Through Tailstock |
3/8 " |
| Ram
Travel |
2 " |
| Spindle Taper |
MT-2 |
| Motor
Power |
¾ HP |
| Motor Voltage |
115 V |
|
Prewired Voltage |
115 V
|
| Motor Current |
11 A |
| Motor
Phase |
1 Ph |
| Family Description |
12" X 20" Woodworking
Lathe |
| Overall
Dimensions |
15-1/2
x 12 x 32 |
| Height |
15.5 inch |
| Width |
12 inch |
| Length |
32 inch |
| Net
Weight |
98.3
pound |
|

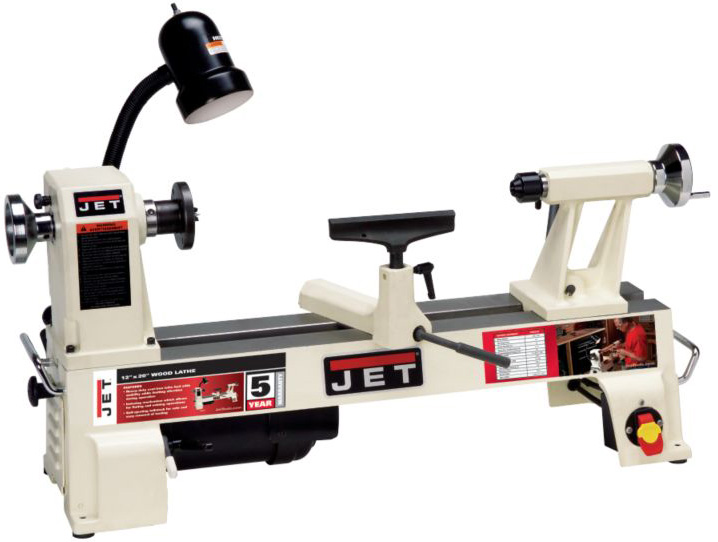

Shaping, smoothing, finishing, fluting and veining all done on one
machine – the JET JWL-1220 is a dream tool for any lathe enthusiast.
Featuring a ¾-horsepower motor that handles increased capacities
easily, this lathe can maintain consistent rpm through a much wider
range of turning situations. Best of all, you can adjust the
headstock, tailstock and tool rest base without having to use tools.
Nifty extras, such as the convenient cordless worklight, 6” and 10”
toolrest, and convenient cord wrap make this a dream machine. A pair
of large-diameter retractable carry handles allows for easier
storage; that is, if you ever want to put this lathe away
Features:
-
Heavy-duty cast-iron lathe bed adds stability while limiting
vibration during operation
- Indexing
mechanism which allows for fast, efficient, fluting and veining
operations
-
Cord wrap for convenient storage of 6 foot power cord
-
Powerful 3/4HP motor will allow you to turn bigger projects
-
Live center has a removable pin for boring through stock
-
Cam-lock mechanisms allow adjustments of headstock, tailstock
and tool rest base without having to use tools
-
Hollow tailstock allows you to perform long hole boring for
lamps and other vessels
-
Convenient worklight allows better lighting right on the
workpiece.
-
Includes 6" and 10" toolrest for added versaltility
|
Accessories |
 |
Part #
708377
JWL-1220BE: 28" Bed Ext. for JWL-1220 |
 |
Part #
708378
JWL-1220S: Adj. Stand for JML-1220 |
 |
Part #
708379
JWL-1220SE:Stand Extension for 1220 Lathe |
|
