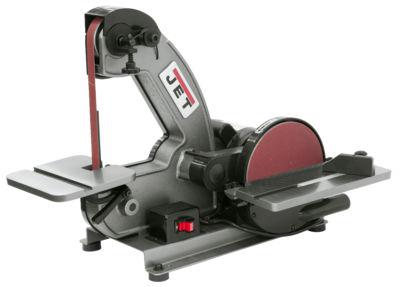

Jet J-4002 1 x 42 Bench Belt and Disc Sand

J-4002 1 x 42 Bench Belt and Disc Sander has a 2 Year warranty

  • Abrasive belt unit does the work of a jig-saw, copying saw or hand file while removing material and finishing at the same time, allows the operator to get into small oppenings plus handle odd shapes and angles
  • Deluxe miter gauge that turns and locks for common angles, 45 degree both left and right
  • Removable platen allows for sanding, grinding or finishing of outside curves or odd shaped work pieces on the belt
  • Hinged idler wheel cover
  • Cast Iron construction
  • Heavy-duty steel base and rubber feet
  • Adjustable dust deflector and dust chute

J-4002, 1 x 42 inch Benchtop Belt and Disc Sander and JDCS-505 Metalworking Dust Collection Stand has a 2 Year warranty

  • JDCS-505 Features
  • Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection
  • Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips
  • Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector
  • Chips and dust collect into a metal drawer that is easy to empty, and the high temperature filters are replaceable
  • Two 115V Outlets on side of unit for bench grinders & lamps
  • Heavy-Duty 16 gauge steel construction
  • Four Adjustable Leveling Pads
  • Large On/off switch with safety key
  • CSA/CUS Certified
  • J-4002 Features
  • Abrasive belt unit does the work of a jig-saw, copying saw or hand file while removing material and finishing at the same time, allows the operator to get into small oppenings plus handle odd shapes and angles
  • Deluxe miter gauge that turns and locks for common angles, 45° both left and right
  • Removable platen allows for sanding, grinding or finishing of outside curves or odd shaped work pieces on the belt
  • Hinged idler wheel cover
  • Cast Iron construction
  • Heavy-duty steel base and rubber feet
  • Adjustable dust deflector and dust chute
Detailed Specifications
Part Number 577003
Part number with JDCS-505 metalworking dust colelction stand 577013K
Disc Diameter (In.)
Disc Speed (RPM) 1,725
Belt Size (W x L) (In.) 1 x 42
Belt Speed (SFPM) 3,000
Disc Table Size (L x W) (In.) 4 x 10
Disc Table Tilt (Deg.) 45 degree Out
Table Slots (In.) 5/8
Belt Table Tilt (Deg.) 45° Out
Belt Table Size (In.) 6-1/8 x 7-1/8
Motor (HP) 1/3 HP, 115V, 1 Ph
Overall Dimensions (L x W x H) (In.) 21 x 22 x 14
Weight (Lbs.) 62
Height 23.7000
Length 22.7000
Weight 63.0000
Width 14.0000



s-h alt WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
There are no listed accessories.


JT9-577003
Mfg. item #: JT9-577003
WMH577003
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1020
$632.11

11
577013K
J-4002 & JDC-505 & 414830
Mfg. item #: 577013K
WMH577013K
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

702
