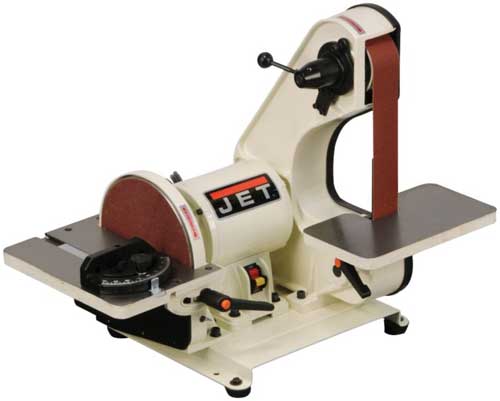

Features:
-
Deluxe miter gauge that turns and locks for common angles,
45° both left and right
-
Hinged idler wheel cover
-
Abrasive belt unit does the work of a jig saw, coping saw or
hand file while removing material and finishing at the same
time, allows the operator to get into small openings, plus
handle odd shapes and angles
-
Allows for sanding, grinding or finishing of outside, curves
or odd shaped work pieces on the belt
-
Grind, sand or finish large work pieces on the disc unit
fast and efficiently, combined with the tilting table, the
operator has the advantage of chamfering or beveling, table
is slotted to accept miter gauge
-
Delivers sharper, faster cutting action; easy belt changes
with a variety of grit belts, keeps the machine cool, so one
can compleat a wide range of jobs
-
When using non-woven synthetic belts, the operator can
blend, polish, buff or finish metal surfaces in addition to
defuzzing wood surfaces
-
Deluxe miter gauge
-
Cast iron tilting table
-
Cast construction
-
Heavy duty steel base and rubber feet
-
Removable platen
-
Dust deflector and chute
|
|
Specifications |
| Part Number |
577004 |
| Model
Number |
J-41002 |
| Motor |
3/4 HP,
115V, 1 Ph |
| Belt Size |
2 X 42 |
| Belt Speed |
3100 |
| Belt Table Tilt |
0 to 45° |
| Disc
Diameter |
8 |
| Disc Speed |
3450 |
| Height |
20 inch |
| Width |
22.75 inch |
| Length |
20.5 inch |
| Net Weight |
60 pound |
|
|
WMH577004
