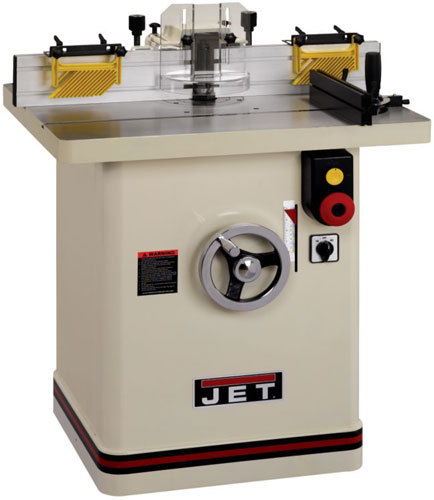

Jet JWS-35X5-3 Industrial Shaper 5HP, 3Ph

Features:
  • Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
  • Powerful 5HP, 1Ph motor with magnetic controls
  • Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area, predrilled for power feeder
  • Poly-V-belt transfers maximum power to the spindle
  • Starting Pins for irregular shaping
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Reversible spindle speeds for diverse shaping jobs
  • 4" Dust port built into fence for convenient hookup to any dust collection system
  • Spindle lock for safe and easy cutter set-up
  • Spindle height scale
Accessories
Part # Description
708314 1" Spindle for JET JWS-35X Shaper
708317 3/4" Spindle for JET 35X Shaper
708328 1-1/4" Spindle for JET JWS-35X Shaper
708372 30mm Spindle for JET 35X Shaper
708373 1/4" Collet Set for JWS-35X Shaper
708374 1/2" Collet Set for JWS-35X Shaper
708381 1/2" Spindle for JET 35X Shaper
Specifications
Model Number JWS-35X5-3
Part Number 708327
Spindle Speed 4000, 6000, 8000 and 10,000 RPM
Reversable Yes
Spindle Diameter 3/4 "
Spindle Size Under Nut 4 "
Spindle Travel 4
Tilting Spindle n.a.
Table Size 26 3/4 x 32 1/4 "
Table Height From Floor 33.25 "
Table Opening Diameter 7¼ "
Table Insert Opening Diameter 2 5/8 and 4 7/8 "
Fence Size (L x H) 4 3/4 x 16 "
Fence Travel (Major and Minor) 4 and 1 "
Slide Table Size (L x W) n.a.
Table Travel n.a.
Table Inserts 2
Maximum Diameter Cutter Below Table 6 "
Maximum Diameter Cutter Above Table 7½ "
Router Bit Collet Diameter 1/4 and 1/2 " (optional)
Dust Port Outside Diameter 4 "
Dust Collection Minimum CFM Required 400 cu.ft/min
Electrical Controls - Magnetic Starter Yes
Digital Readouts n.a.
Motor Power 5 HP
Motor Voltage 230 V
Prewired Voltage 230 V
Motor Current 17 A
Motor Phase 1 Ph
Height 41 inch
Width 40 inch
Length 30 inch
Net Weight 473 pound


WMH708327
$3,110.00 $2,488.00
"JWS-35X5-3, Industrial Shaper, 5HP, 3Ph ==>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included. (PC1109)"


WMH708314
$120.00 $90.00
"1"" Spindle for JWS-35X Shaper *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"


WMH708317
$120.00 $90.00
"3/4"" Spindle for JWS-35X Shaper *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"


WMH708328
$120.00 $90.00
"1-1/4"" Spindle for JWS-35X Shaper *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"


WMH708372
$120.00 $90.00
"30MM Spindle for JWS-35X Shaper *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"


WMH708373
$78.64 $57.91
"1/4"" Collet Set for JWS-35X Shaper ==>> FREE GROUND UPS On This Item To Any Location Within The Upper 48 States (PC1109)"


WMH708374
$78.51 $57.81
"1/2"" Collet Set for JWS-35X Shaper ==>> FREE GROUND UPS On This Item To Any Location Within The Upper 48 States (PC1109)"


WMH708381
$120.00 $90.00
"1/2"" Spindle for JWS-35X Shaper *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"
