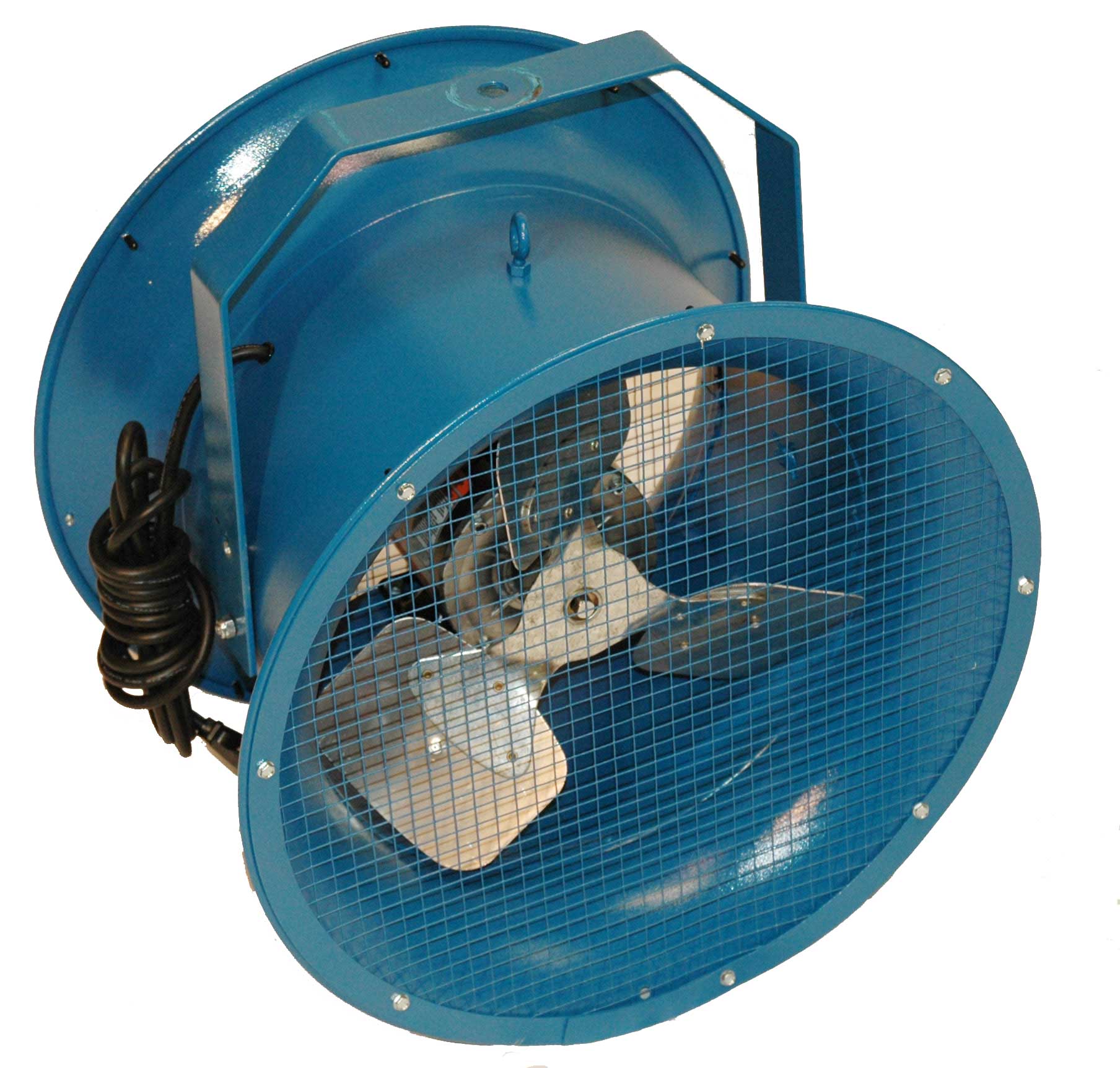

Patterson 14" High Velocity Fans

Yolk Mount-Standard

Click on image to enlarge

FEATURES

  • Propeller: 14“ Diameter, 3 Blade GalvAlum (37 Degree)

  • Fan Inlet/Outlet: 16 Gauge Spun Steel

  • Finger Guards: Wire Mesh**

  • RPM: 1725

  • Decibles: 68 dba Standard

  • Enclosure: TEAO Standard

  • Frame: 48

  • Ambient Temperature: 40C

  • Duty Cycle: Continuous

  • Power Cord (115V Only): 12’ Length

  • Coverage: 1800 Sq.Ft. Max

  • Waranty: 2 Years

Truck Cooler
SPECIFICATIONS
Model Number YM14 TC14
Unit Type Yoke Mount Truck Cooler
Size 14"
CFM 2600
HP 1/4
Fan Dimensions
Width 20"
Diameter 16"
Internal Diameter 14-5/8"
Distance Air Throw 60'
Shipping Weight 42 lbs 67 lbs
Available Voltages 115V/208-230V*
208-230/460V

*Standard


PATYM-14-115V
$520.00 $415.90
"14"" Size Yoke Mount 14"" Blade Fan ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATYM-14-230V/460V
$570.00 $469.22
"14"" Size Yoke Mount 14"" Blade Fan ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATTC-14-115V
$570.00 $469.22
"14"" Size Truck Cooler (28' Trailer) ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"


PATTC-14-230V/460V
$653.00 $522.54
"14"" Size Truck Cooler (28' Trailer) ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"
